telemetry RC Digital Video Transmitter

V21 Ethernet video&telemetry&RC link

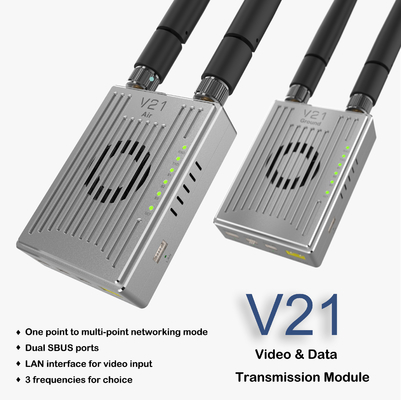

V21 Digital video and data transmission module is the wireless digital data link based on LTE wireless communication, adopting OFDM and MIMO technology. It can transmit telemetry data and real-time video stream, and has 2*SBUS ports, able to provide the control of the drone and the payload.

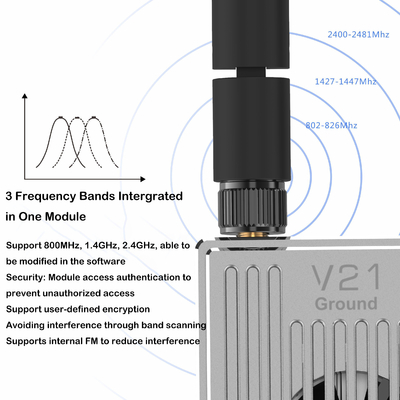

RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one, the frequency can be modified in the software.

High integration greatly reduces the power consumption and the dimension of the product, which can satisfy the requirement of UAV, UGV, etc

Features

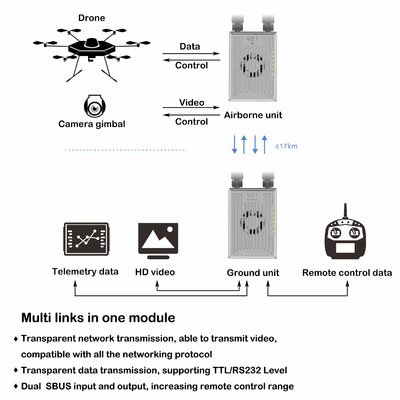

• Multi links in one module(video&telemetry&RC link)

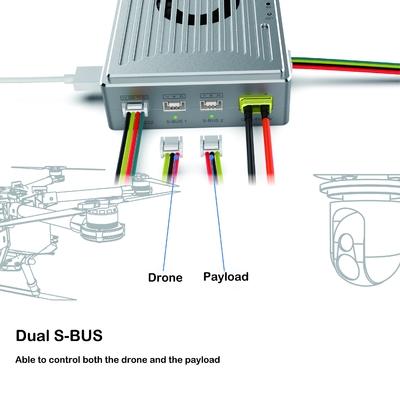

• Dual SBUS input and output, able to control the payload and the drone together
• 3 frequency modules in one, frequency can be modified in the software

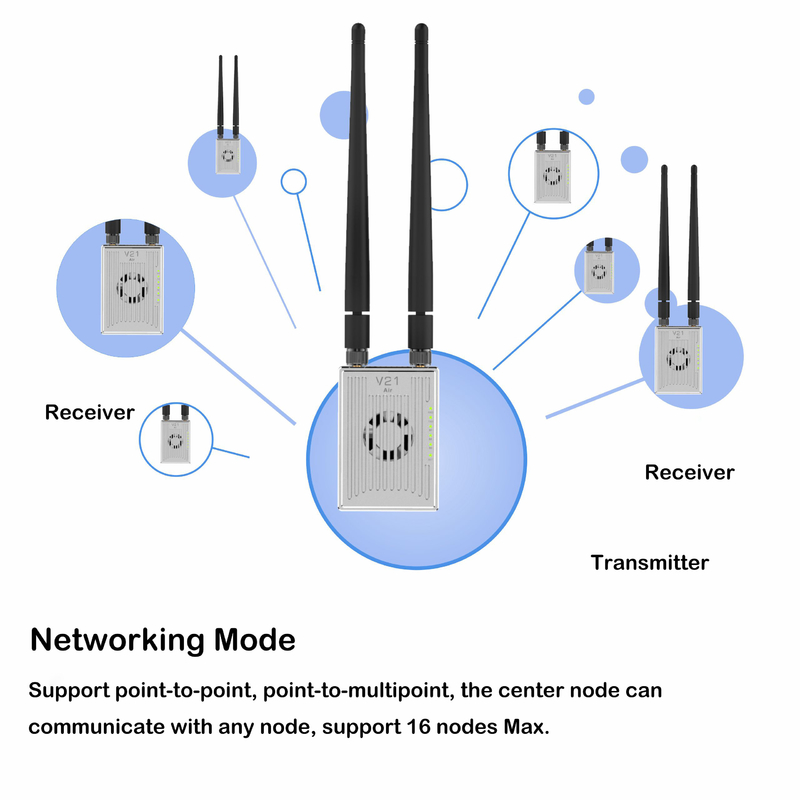

• Support point to point, point to multipoint communication

Parameters
Frequency band:

                                                        800MHz (806-826MHz)

                                                        1.4GHz (1427.9-1447.9MHz)

                                                         2.4GHz (2401.5-2481.5MHz)

RF Power:                                      -40-25dbm(adjustable)

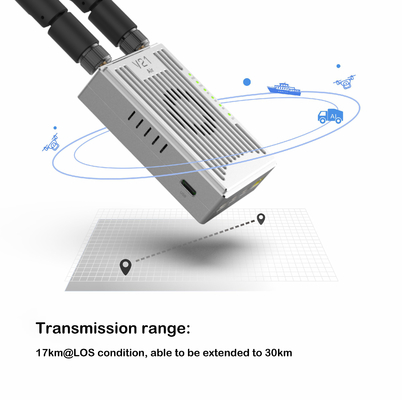

Transmission range:                     10km grade@LOS

Video latency:                                20ms (Transmission latency from Tx to Rx)

Bandwidth:                                     1.4-20M (1.4M/3M/5M/10M/20M)

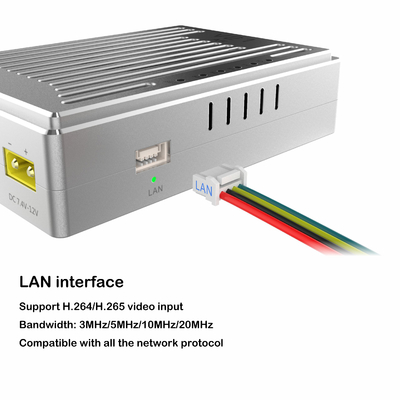

Video input/output:                         LAN (Connecting IPC device/PC)

Power supply voltage:                   7.4-12V

Power supply interface:                 XT30

Operation current:                         180mA

Operation temperature:                -10℃-+50℃

Dimension:                                    85mm*55mm*20mm

Weight:                                         100g(exclude antenna)

S-BUS port:                                   2*S-BUS ports

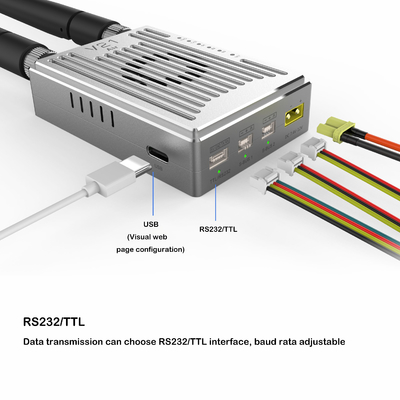

Serial port:                                     1*serial port (default: TTL; optional: RS232; Full duplex, baud rate adjustable)
