Product Details:
|
| Condition: | New | Size: | 354mm(L)*280mm(W)*80mm(H) |
|---|---|---|---|
| Weight: | 5.98kg | Use: | Universal |
| Name: | Universal Ground Control Station | Operation Temperature:: | -20℃-+60℃ |
| Highlight: | 30ms Universal Ground Control Station,DC16.8V Universal Ground Control Station |
||

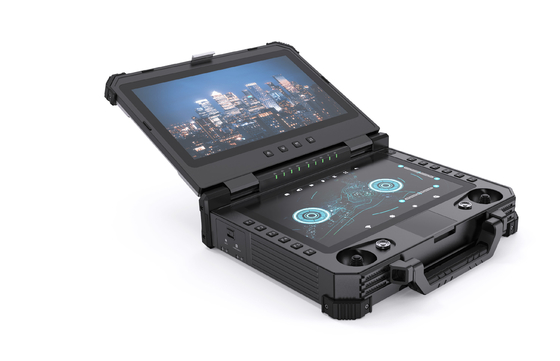

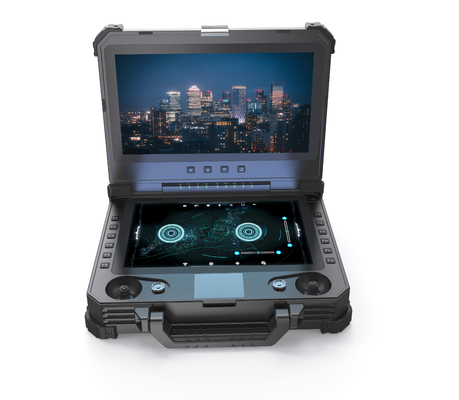

T40 Ground Control Station
T40 is a universal ground control station for all types of UAV, UGV, robot and other remote-controlled vehicles.
With dual screens, it is a highly integrated system and has the function such as video transmission, data transmission, remote control, video display and industrial-grade computer.
The remote control system has 4 joysticks for use, it also supports traditional RC access. Add HID USB function and programmable switches that can be set in the software. Various input and output ports make it convenient to be integrated with the 3rd party communication device. Lightweight, powerful function make it especially suitable for the individual to perform the complicated tasks.
Features

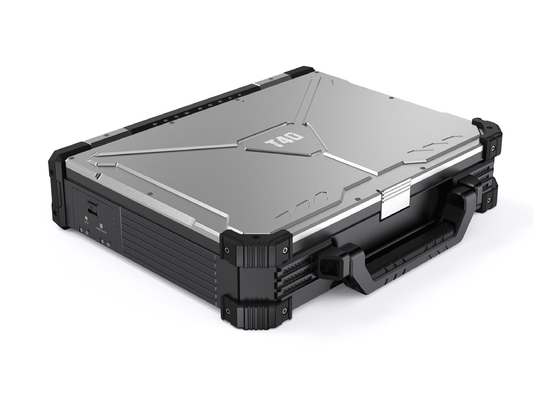

Aviation grade aluminum shell,the overall weight only 5.98kg.
Dual touch screens with high definition and brightness and extended touch pad.
Programmable channels,supproting rtaditional RC access.
Add HID USB and programmable switches that can be set in the software.
Compatible with 100% data link in the market.
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device

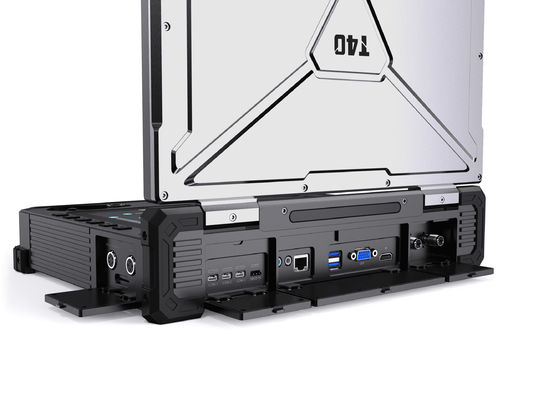

Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
