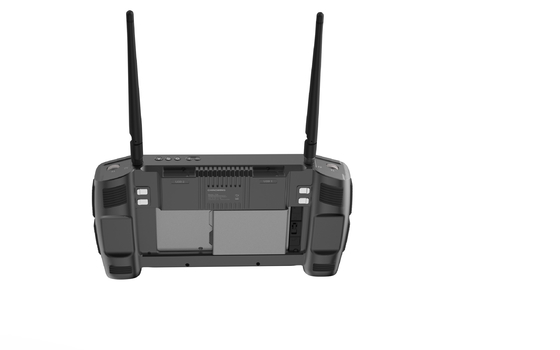

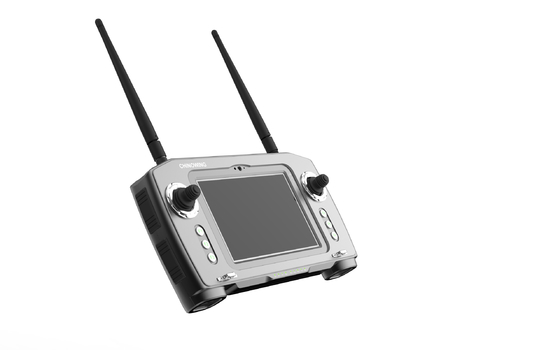

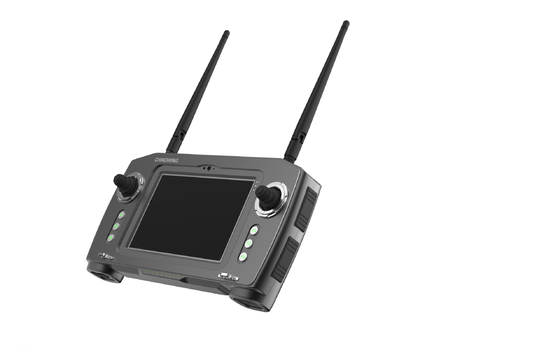

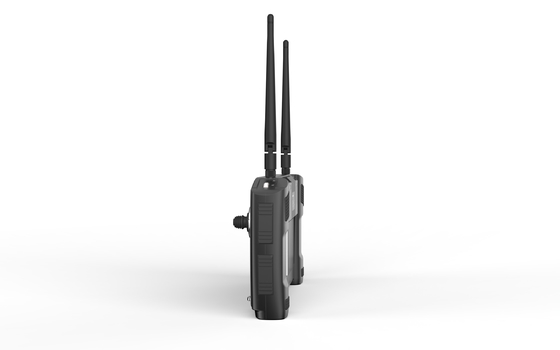

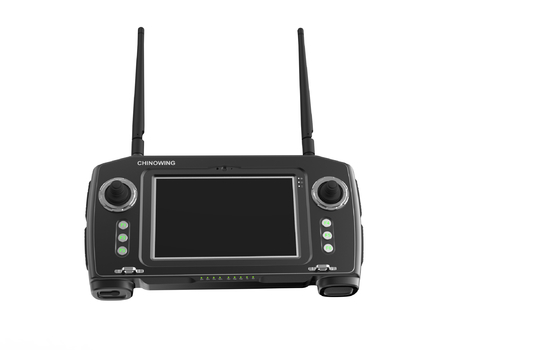

T26 Rugged Single Screen Ground Control Station With All-In-One Video&Telemetry&RC Link For Demanding Environments

Portable Ground Control Station T26 is built on Panasonic's FZ-M1, a professional and military-grade tablet that meets MIL-STD-810G and IP65 dust and water resistance technology.

Featuring an all-in-one video, telemetry, and RC link, the T26 includes 2 joysticks, 2 pull wheels, and 10 buttons. The user can assign 16 physical channels to joysticks, switches, and buttons.

The built-in large-capacity battery allows it to work for up to 9 hours continuously. This makes it very convenient to operate on the field.

The rugged, water and dust-proof design, is especially suitable for operation in a harsh environment.

Performance upgrade

• Windows system
• Built on Panasonic FZ-M1, IP65 grading,
• Aviation grade aluminum shell, the overall weight only 1.5kg
• Touch screens, high definition, high brightness, sunlight-readable
• 16 physical channels, the user can assign each channel to a preferred joystick, switch, and button
• IP65 rating

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220mAh+6800mAh
• Remote control about 9 h
• The web browsing, about 12 h

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• The overall weight is only 1.5 kg
•  Around with soft rubber, skid resistance

Parameters

Overall

Overall weight:                      1.5kg

Dimension:                            30cm*15.8cm*4cm

Operation temperature:        -20℃-+60℃

Battery capacity:                   Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance:                           9hs

IP rating:                               IP65

Communication system:       V21(10km grade)

Antennas:                              2-4dB ZYJB antenna

Computer

Computer:                            Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen:                    7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system:               Win10

CPU:                                    Intel i5 7Y57

Memory:                              8G

Storage:                              256GB SSD

Network:                             WIFI/Bluetooth/4G

Remote control system

Physical channel:                 16

Joysticks:                             2

Pull wheel:                           2

buttons:                                F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency:          40ms

Remote control function:         Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface:                    USB HID device

Interfaces

External interface:                   USB3.0*2
