Product Details:
|
| Material: | Aviation-grade Aluminum Shell | Product Name: | T40 Handheld Ground Controller |
|---|---|---|---|
| Function: | Control System, Mission Planning, Video Review | Application: | UAV, UGV, USV, Robot, Remote-controlled Vehicle |
| High Light: | 10km Ground Control Stations,Dual SBUS Ground Control Stations |
||

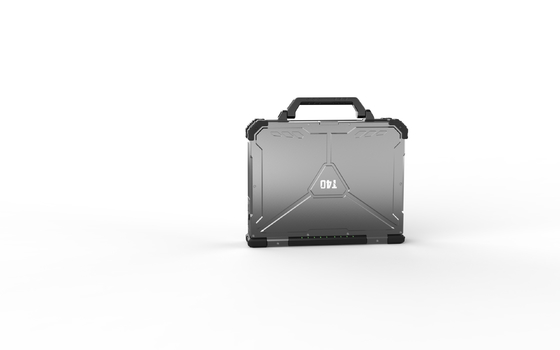

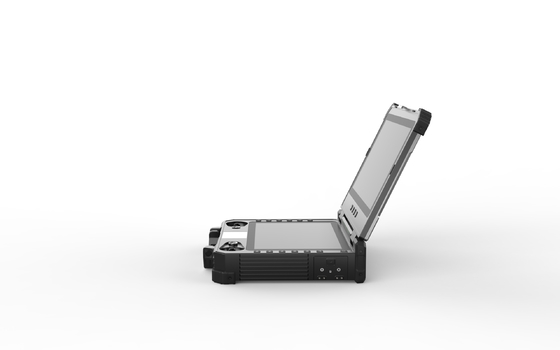

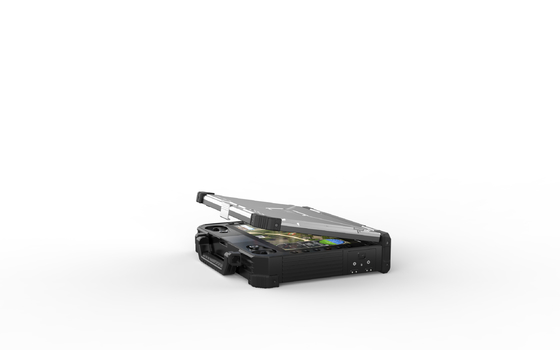

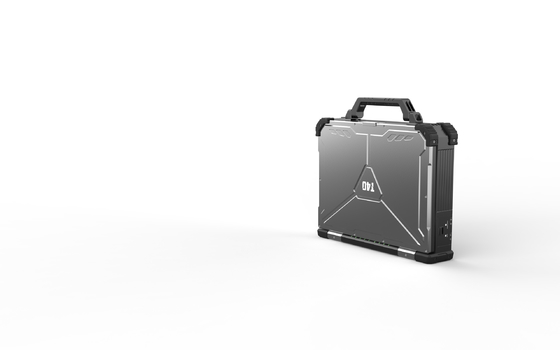

T40 Handheld Ground Controller With Built-in Communication in 10km Grade Transmission Range
T40 is a universal ground control station for all types of UAV, UGV, robots, and other remote-controlled vehicles.

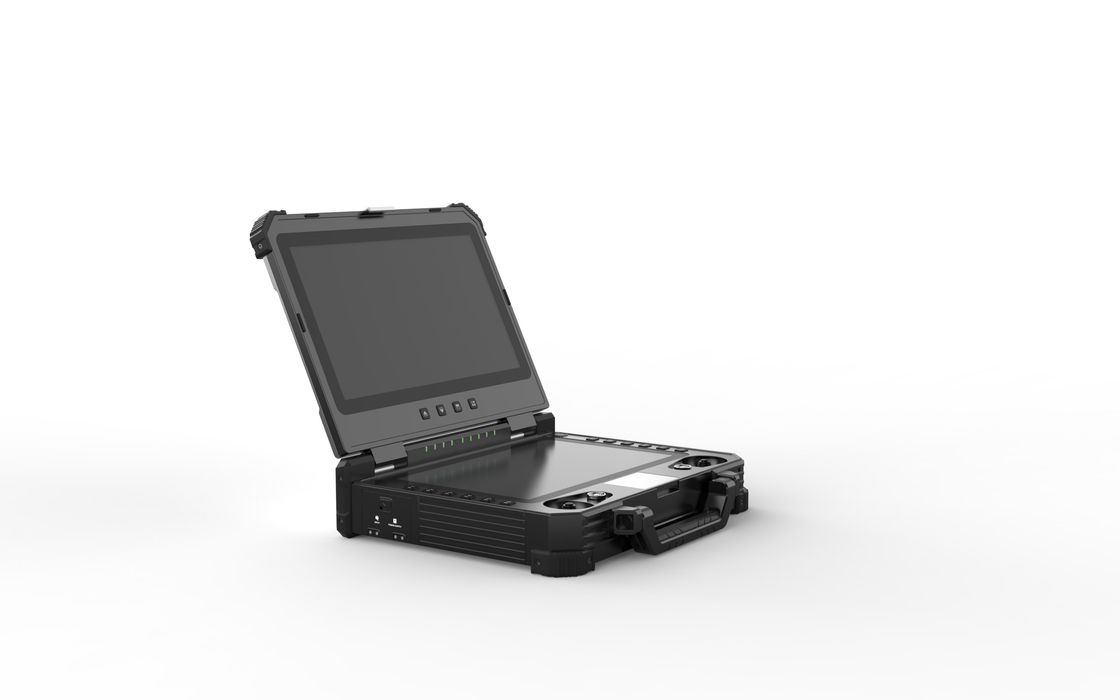

Remote control station T40 with dual screens, one 13.3inch 1920*1080 1000CCD and one 12.1inch 1280*800 1500CCD. The displays are fully sunlight viewable.
T40 is equipped with 27 physical channels and a Remote Control Configuration Interface, which allows users to assign joysticks, switches, and buttons to specific channels.
With a lightweight aviation-grade aluminum alloy shell and 3-in-one communication, T40 provides an ideal way to command and control the drone and the payload, facilitating a wide range of commercial and professional drone missions.
Features
Aviation grade aluminum shell, the overall weight only 5.98kg.
Built on Intel-based PC, real industrial-grade GCS
Dual touch screens with high definition and brightness and extended touchpad.
Video & telemetry & RC& computer in one
Dual SBUS output, able to control the drone and the payload simultaneously
Compatible with 100% data link in the market.
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
