Product Details:
|
| Color: | Silver | Power: | 300mW-2W (adjustable) |
|---|---|---|---|
| Transmission Range: | 10km Grade/30km Grade | Serial Port: | TTL*1 RS232*1 RS485*1 |

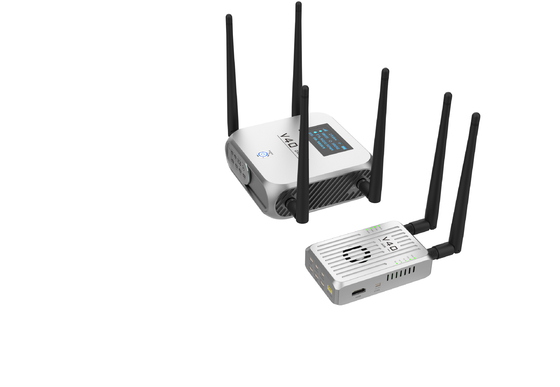

Wireless transmission module V40 has multiple functions. Besides telemetry data and real-time video stream transmission, it has 2*SBUS ports, allowing it to control both the vehicle and the payload.
One model includes RF modules with 800M, 1.4G, and 2.4G frequency bands, and the software allows modifying the frequency. With HDMI and LAN video input interfaces and 3 serial ports(TTL&RS232&RS485), 2 channels of HD video and 3 channels of serial port data can be transmitted simultaneously.
V40 supports both point-to-point and point-to-multipoint communication, which means the nodes in the center can communicate with each other, thereby expanding application scenarios greatly.
An integrated WIFI module is built into the ground unit, which can be used to wirelessly connect to a computer or monitor.
Power consumption and product dimensions are greatly reduced due to high integration, which is especially suitable for complicated applications.
Features
Multi-function
Dual SBUS ports
3 serial ports, TTL&RS232&RS485
Multiple HD video,HDMI/AV/SDI
WiFi wireless transmision
3 serial ports
3 independent serial ports,support working simultaneously
level signal interfaces are TTL,RS232 and RS485
(support for TCP,UDP,Httpd Client,TCP Auto,WEB to serial working mode,etc.)
Built-inbattery
Built-in battery capacity of 6800mAh
Endurance:10h
LED display
Visually read the working state of the device
Built-in WIFI module
Hundreds of meters transmission range,the latency of video relay transmission＜40ms
Supporting data rate at 300Mbps Max
Able to wirelessly connect any interface of the airborne unit
Support video input by HDMI and LAN at the same time
Support double SBUS
Able to control drones and payload simulytaneously
Support dual LAN port
Support 2 LAN ports can work simultaneously
Parameters
Overall
Frequency:
800MHz: 806-826MHz
1.4GHz: 1427.9-1447.9MHz
2.4GHz: 2401.5-2481.5MHz)
Transmission range: 10km grade
Bandwidth: 3M/5M/10M/20M(adjustable)
Video latency : <=300ms

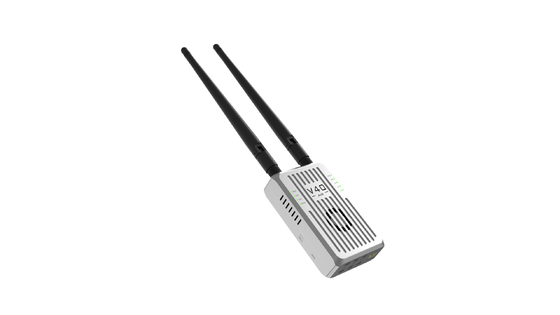

Airborne unit
RF power: 300mW-2W
Power supply port: XT30
Power supply voltage: 12-24v
Operation current: 470mA@12V power supply
Operation temperature: -35℃~+60℃
Antenna: 2-4dB rod antenna
SBUS port : 2*S-BUS port
Serial port: TTL*1 & RS232*1 & RS485*1
Video input: LAN*1, HDMI*1, CVBS*1
Dimension: 117mm(L)*70mm(W)*30mm(H)
Weight: 236g(exclude antennas)

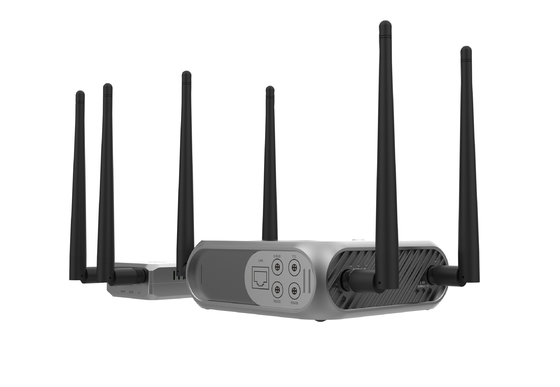

Ground unit
RF power: 300mW-2W(adjustable)
Power supply interface: XT30 12V
Charging port: DC12.6V(Aviation plug/GH1.25)
Built-in battery Capacity: 6800mAh
Endurance: 10h with full capacity
WIFI data rate: 144Mbps-300Mbps
Antenna: 2-4dB rod antenna&8-9dB fiberglass antenna
SBUS port : 2*S-BUS port INTPUT
Serial port: TTL*1 & RS232*1 & RS485*1
Video output: LAN*2
Dimension: 139mm(L)*139mm(W)*48mm(H)
Weight: 1045g(exclude antennas)
