Product Details:
|
| Color: | Silver | Dimension: | 85mm*55mm*20mm |
|---|---|---|---|
| Weight: | 100g(exclude Antenna) | ||
| High Light: | MIMO UAV Ground Control Station,OFDM UAV Data Link,All In One UAV Data Link |
||

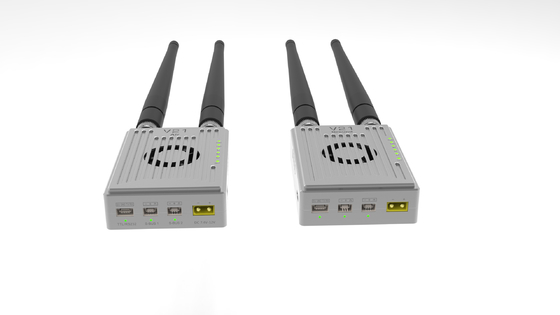

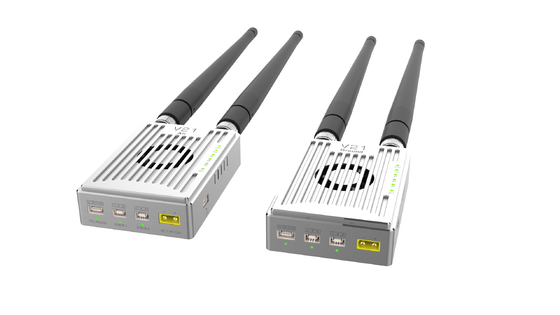

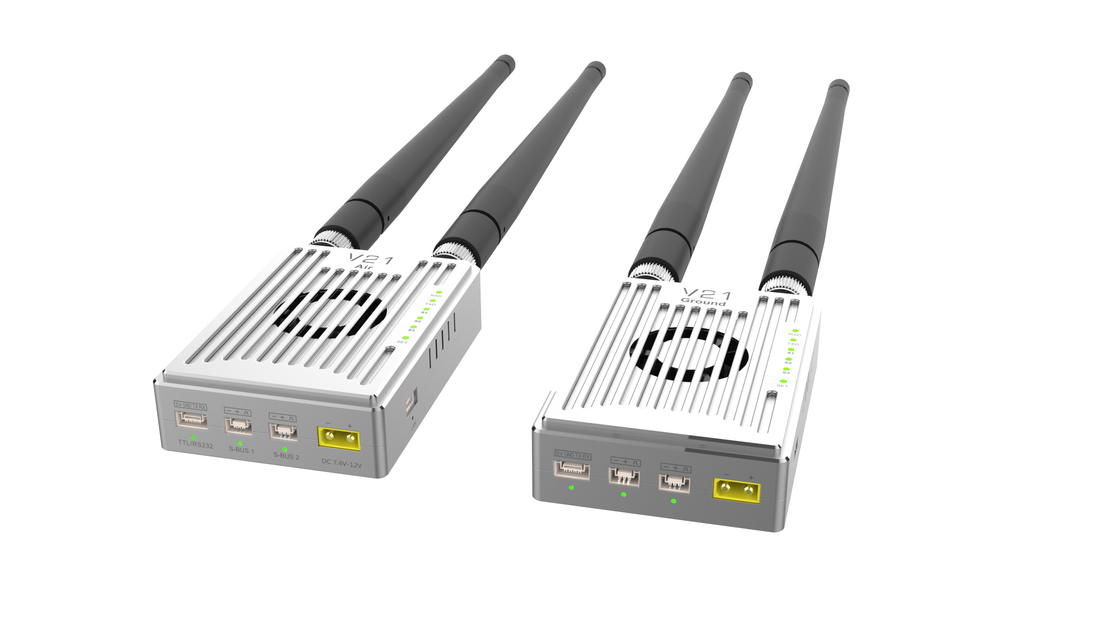

V21 Ethernet video&telemetry&RC all in one link for UAV
Adopting OFDM and MIMO technology, V21 video&data&RC all in one device is the wireless digital data link based on LTE wireless communication. It can transmit telemetry data and real-time video stream, and has 2*SBUS ports, able to provide the control of the drone and the payload.RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one, the frequency can be modified in the software.
V21 is very suitable for UAV, UGV, etc due to its high integration greatly reduces the power consumption and the size of product.
Features
Parameters
| V21 video&data&RC link | ||
| Frequency | 800MHZ 1.4GHZ 2.4GHZ | 806-826MHZ 1427.9-1447.9MHZ 2401.5-2481.5MHZ |
| Power | -40-25dbm | adjustable |
| Transmission range | 17km | depend on environment |
| S-BUS port | S-BUS*2 | NA |
| serial port | 1 port | full duplex,baud rate adjustable |
| latency | ＜300ms | Transmission from Tx to Rx |
| Power supply voltage | 7.4-24V | NA |
| operation current | 180MA | 12V power supply |
| Bandwidth | 1.4-20M | 1.4M 3M 5M 10M 20M |
| Video input output | WAN LAN | connecting IPC device/ PC |
| power supply interface | XT30 | |
| Antenna | 2-4db rod antenna | |
| dimension | 85mm*55mm*20mm | |
| weight | 100g(exclude antenna) | |
| operational temperature | -10-50℃ | |
