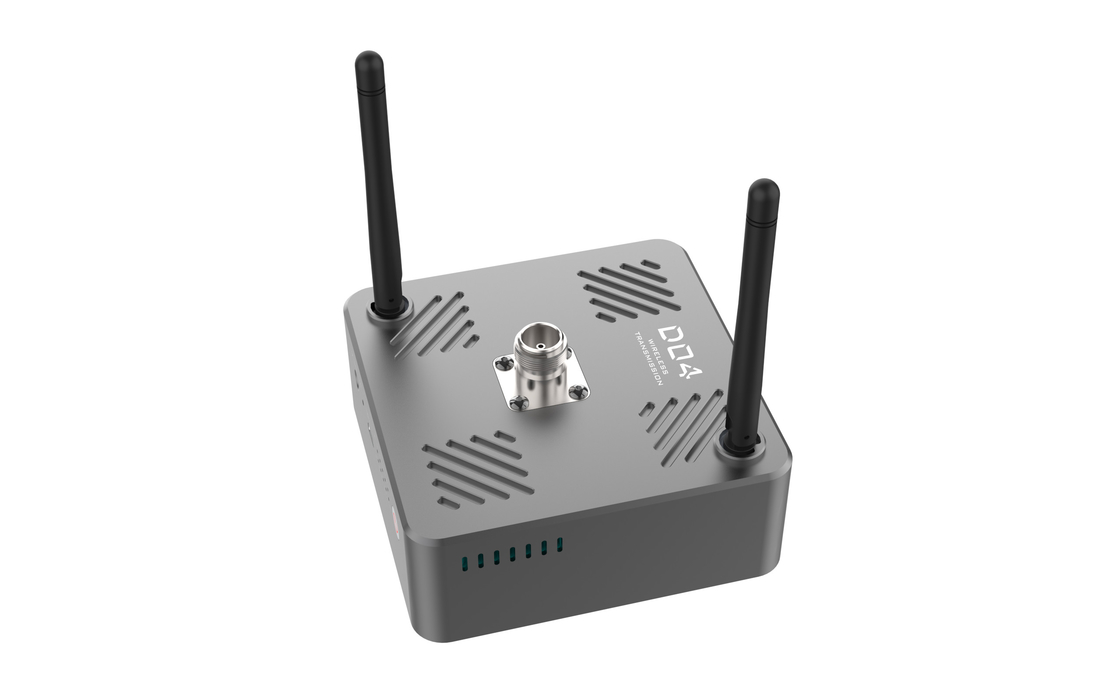

D04 Wireless data&RC link

The D04 is a data transmission device wirelessly connected to the computer, which is particularly suitable for surveying and mapping. It can transmit two S-Bus signals and data transmission signal simultaneously. It is mainly used to solve the problem of short transmission range and low transmission quality of remote control and data transmission signals.

Working in 915MHZ frequency band, D04 the maximum communication distance can reach 30KM.

Features

• Dual SBUS, adopting time-division multiplexing technology, SBUS signal can be extended to the range of 30km, solving the problem of insufficient RC control distance.
• Built-in large capacity battery providing >12H endurance for continuous operation, 24H can be extended.
• The ground unit is with built-in WIFI and Bluetooth modules, it can be connected to the PC, phone or Pad by wire or wirelessly.

Parameters

Frequency :                                  902-928MHz(Microhard P900)

Baud rate:                                     1200-115200(adjustable)

Operation current:                         300mA

Operation temperature:                 -10- +60℃

Power:                                            0.1w-1w(adjustable)

Power supply (air borne unit):        DC7.4 - 12V (2S-3S Li battery)

Casing material:                            Aluminium alloy

Built-in battery (ground unit) :       12v 18650 3S battery

Color:                                             Silver gray

Weight:                                         43g

Dimension:                                  113mm*113mm*44mm
