Product Details:
|
| Color: | Silver | Dimension: | 113mm*113mm*44mm |
|---|---|---|---|
| Weight: | 690g |

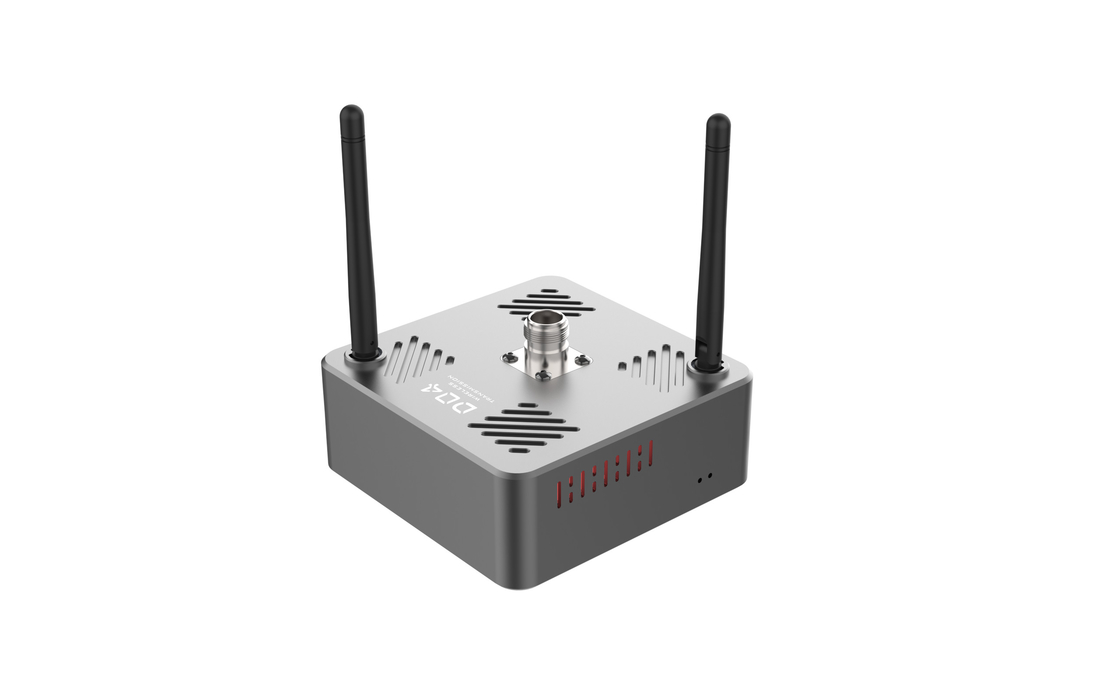

As a data transmission device,D04 wirelessly connected to the computer, which is particularly suitable for surveying and mapping. Dual SBUS, adopting time-division multiplexing technology, SBUS signal can be extended to the range of 30km, solving the problem of short transmission range and low transmission quality of remote control and data transmission signals.
Working in 915MHZ frequency band, D04`s maximum communication distance can reach 30KM.
More than 12H endurance of continuous operation due to built-in large capacity battery , 24H can be extended.
The ground unit is with built-in WIFI and Bluetooth modules, it can be connected to the PC, phone or Pad by wire or wirelessly.
Features
Flexible layout
Computer can be wirelessly connected to the ground unit
Remote control range is extended
Wirelessly connected to the computer
50km transmission range,0 packet loss
Parameters
| D04 Wireless Data &RC link | ||||
| Frequency | 840MHZ/900MHZ(adjustable) | 工业环境 | Operational temperature | -10--60℃ |
| Power | 0.1-1W(adjustable) | 网络类型 | Wireless | WIFI+Bluetooth |
| Baud rate | 1200/230400bps(adjustable) | 重量 | Weight | 690g |
| Built-in battery/ground unit | 3000mAh(12V 18650 3S battery) | 外观尺寸 | Dimension | 113mm*113mm*44mm |
| Operation current | 300mA | WIFI距离 | WIFI range | 1-15km |
| Power supply | 12.6V | 连接方式 | Connection | Type-C wifi |
| Duration | 15h | |||
