Product Details:
|
| Color: | Silver | Dimension: | 113mm*113mm*44mm |
|---|---|---|---|
| Weight: | 690g | Power: | 0.1-1W(dajustable) |
| Frequency: | 840MHZ/900MHZ(adjustable) |

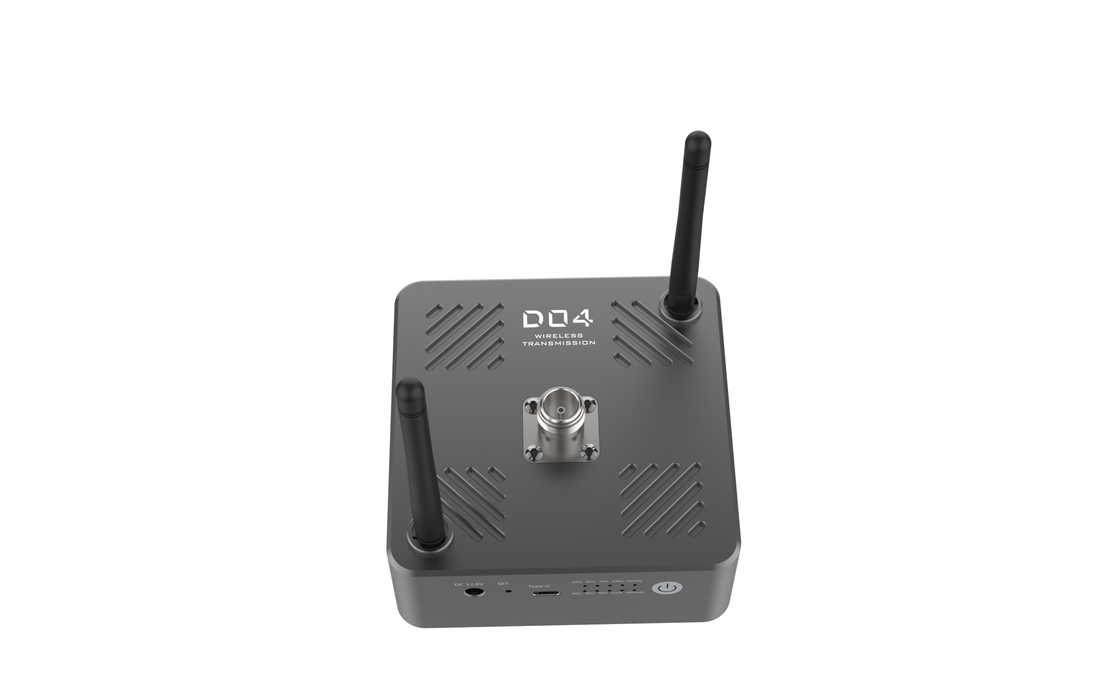

The D04 is a data transmission device wirelessly connected to the computer, which is particularly suitable for surveying and mapping. It can transmit two S-Bus signals and data transmission signal simultaneously.
It is mainly used to solve the problem of short transmission range and low transmission quality of remote control and data transmission signals.
Working in 915MHZ frequency band, D04 the maximum communication distance can reach 30KM.
Features
Flexible layout
Computer can be wirelessly connected to the ground unit
Remote control range is extended
Wirelessly connected to the computer
50km transmission range,0 packet loss
Parameters
| D04 Wireless Data &RC link | |||
| Frequency | 840MHZ/900MHZ(adjustable) | Operational temperature | -10--60℃ |
| Power | 0.1-1W(adjustable) | Wireless | WIFI+Bluetooth |
| Baud rate | 1200/230400bps(adjustable) | Weight | 690g |
| Built-in battery/ground unit | 3000mAh(12V 18650 3S battery) | Dimension | 113mm*113mm*44mm |
| Operation current | 300mA | WIFI range | 1-15km |
| Power supply | 12.6V | Connection | Type-C wifi |
| Duration | 15h | ||
