Product Details:
|
| Screen: | 13.3inch 1920*1080 1000CCD+ 12.1inch 1280*800 1500CCD | Touch Panel: | Capacitive 10-finger Multi-touch Display |
|---|---|---|---|
| CPU: | Intel I7 8565U/10500U | ROM: | 8GB |
| Storage: | 256GB | System: | Win7/Win10/Linux |
| Network: | WIFI/Bluetooth/4G | External Interface: | USB3.0 LAN HDMI In，VGA Out，Hi-fi |
| Serial Port: | RS232*3 SBUS Out/in | Power Supply Interface: | DC16.8V |
| Operation Temperature: | -20~+60℃ | Dimension: | 354mm*280mm*80mm |
| Overall Weight: | 5980g |
The T40 GCS is a portable and universal control device which can be used for controlling UAV,UGV,robots,and other remote controlled vehicles.It features HID USB and programmable swicthes.Several external input and outpur ports allow it to be easily integrated into other devices.
With two screens (high definition and brightness) ,one 13.3inch 1920*1080 1000CCD and one 12.1inch 1280*800 1500CCD.
As a highly integrated system which has the function such as video transmission,data transmission,remote control,video display.With the aviation-grade aluminum alloy shell,T40`s weight is only 5.98kg.

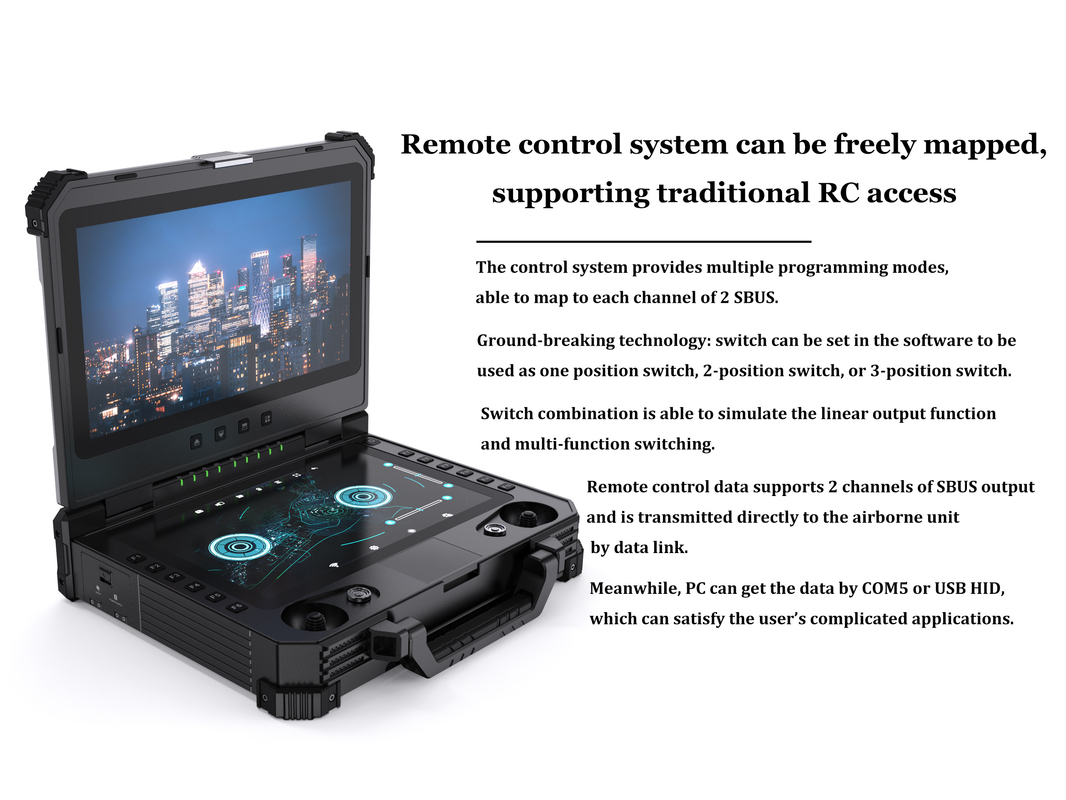

The remote control system has 4 joysticks for use, it also supports traditional RC access for remote control.
T40 is equipped with 27 physical channels and a Remote Control Configuration Interface, which allows users to assign joysticks, switches, and buttons to specific channels.
With a lightweight aviation-grade aluminum alloy shell and 3-in-one communication, T40 provides an ideal way to command and control the drone and the payload, facilitating a wide range of commercial and professional drone missions.
Features

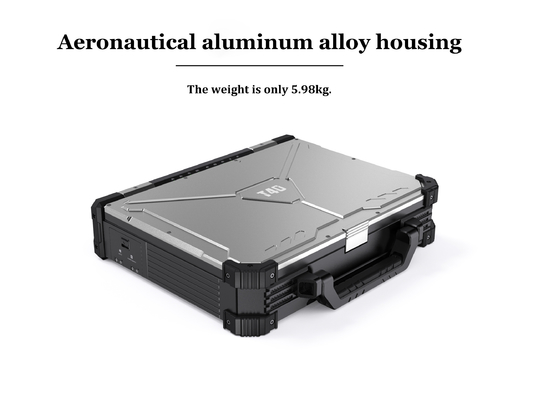

Aviation grade aluminum shell, the overall weight only 5.98kg.
Built on Intel-based PC, real industrial-grade GCS

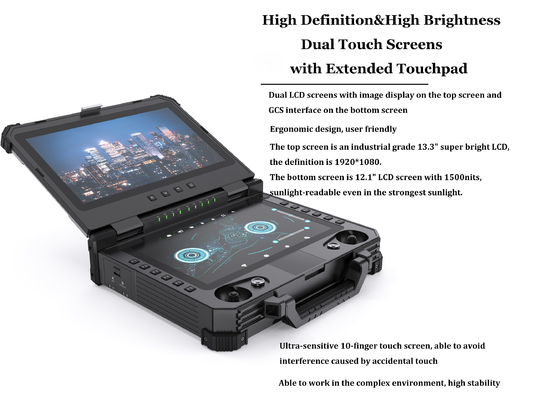

Dual touch screens with high definition and brightness and extended touchpad.
Video & telemetry & RC& computer in one
Dual SBUS output, able to control the drone and the payload simultaneously

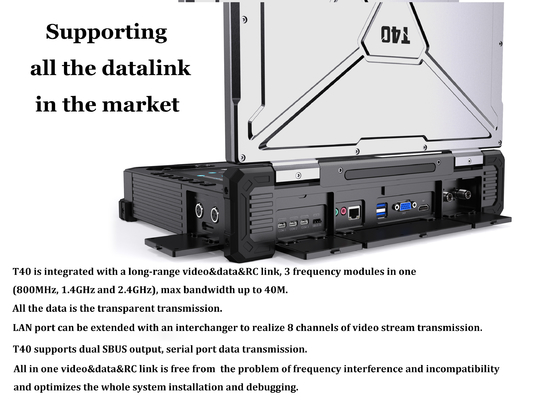

Compatible with 100% data link in the market.
Parameters
| T40 GCS | |||
| SBUS | Dual SBUS independent output,HID input ,able to control the vehicle and the payload simultaneously | Screen | 13.3inch 1920*1080 1000CCD(Top screen) 12.1inch 1280*800 1500CCD(bottom screen) |
| Video system | Built-in | Touch panel | Capacitive 10-finger multi-touch display |
| Channel | 27 physical channels | CPU | Intel i7 8565U(standard)/Intel 10500U(upgrade for future) |
| Remote control latency | 30ms | ROM | 8GB |
| Antenna | 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally) | Storage | 256GB |
| Sub-Channel | Main joystick*2(industrial joysticks with hall sensors) Sub joysticks*4 Key button*12 Simulate keystrokes*7 Auxiliary rocker*4 | System | Win7/Win10/Linux |
| Remote control range | 5km-20km | Network | WIFI, Bluetooth(standard)/4G(optional) |
| RF power | V20:0.1-1w(adjustable) V21:0.1-1w(adjustable) V30:0.1-1w(adjustable) | External interface | USB3.0,LAN,HDMI in,VGA out,Hi-fi |
| Frequency | 800MHZ/902-920MHZ 1.4Ghz/2.3Ghz/2.4Ghz/2.5Ghz | Serial port | RS232*3,SBUS out/in |
| Battery capacity | 16.8V/13600mAh(external battery also supported) | Power supply interface | DC16.8V |
| Endurance | 3 hours | Operation temperature | -20~+60℃ |
| Communication system | V30(10km grade) V21(10km grade) Supporting the 3rd party communication | Dimension | 354mmL*280mmW*80mmH |
| Function | Control system,Mission planning,Video Review | Overall weight | 5980g |
