T40 ground control station with two screens(5.98kg DC16.8V)

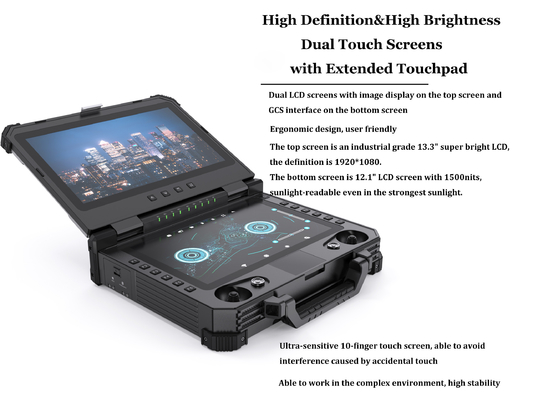

As a portable and universal ground control station which control the UAV, UGV, robots, and other remote-controlled vehicles,T40 has two screens.

One 13.3inch 1920*1080 1000CCD and the other one 12.1inch 1280*800 1500CCD. When the sun is being straight above the screen,you can still view the dispaly.

T40 is a highly integrated system which can do video transmission,data transmission,remote control,video display.With the aviation-grade aluminum alloy shell,the overall weight is only 5.98kg.

There are four joysticks with the remote control system, and it supports traditional remote control access. A variety of external input and output ports make integration with 3rd party data links convenient. HID USB and programmable switches are also available. It is especially suitable for UAV,UGV,USV,etc.

Users can assign joysticks, switches, and buttons to specific channels on the T40 using a Remote control configuration interface. With a lightweight aluminum alloy shell and 3-in-1 communication, the T40 is a versatile and reliable device.

Features

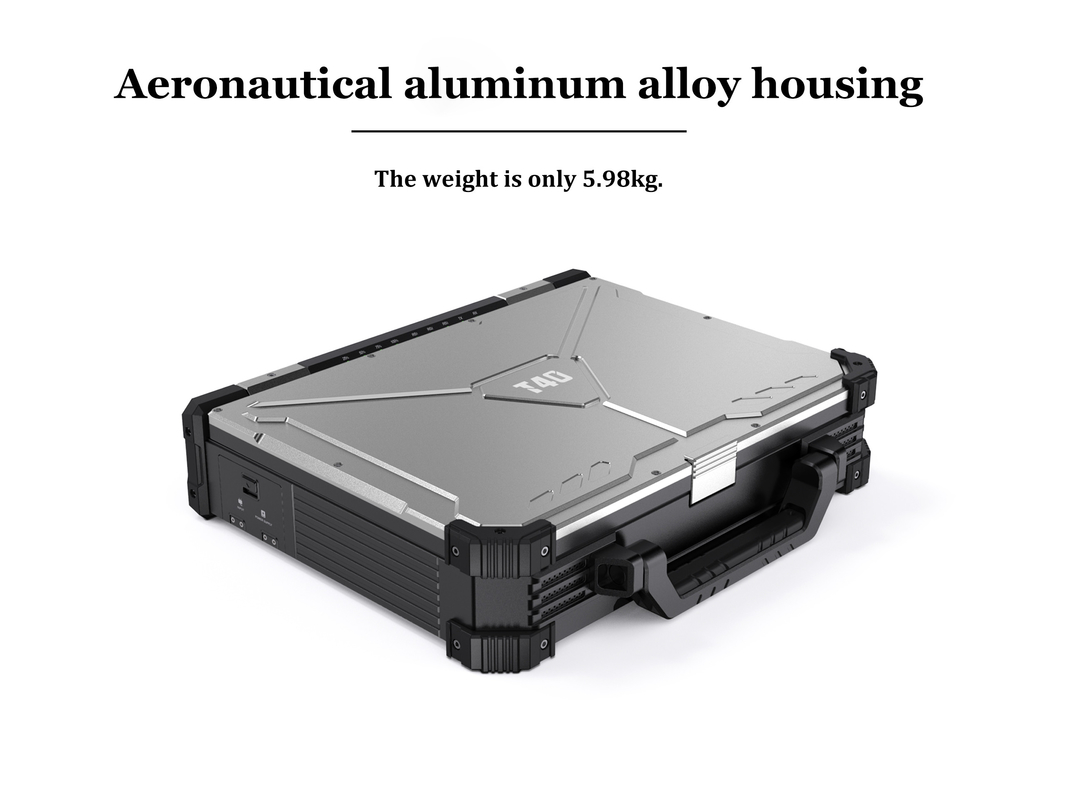

Aviation grade aluminum shell, the overall weight only 5.98kg.

Built on Intel-based PC, real industrial-grade GCS

Dual touch screens with high definition and brightness and extended touchpad.

Video & telemetry & RC& computer in one

Dual SBUS output, able to control the drone and the payload simultaneously

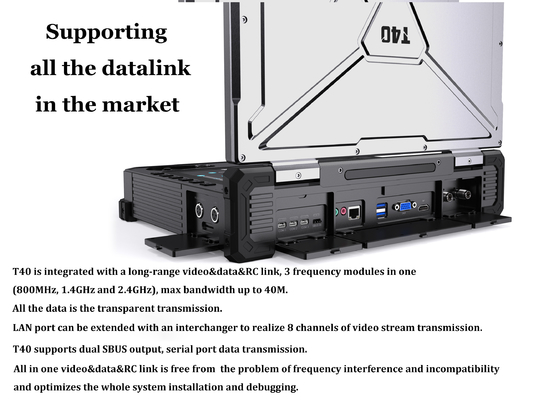

Compatible with 100% data link in the market.

Parameters

Overall

Overall weight: 5.98kg

Dimension: 354mm(L)*280mm(W)*80mm(H)

Operation temperature: -20℃-+60℃

Battery capacity: 16.8V/13600mAh (external battery also supported)

Endurance: 3h@full battery capacity

Communication system:

V30(10km grade)

V21(10km grade)

Supporting the 3^rd party communication

Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)

Computer

Display screen: 13.3inch 1920*1080 1000CCD(top screen);

12.1inch 1280*800 1500CCD(bottom screen)

Operating system: win10/Linux

CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)

Memory: 8G(standard)

Storage: 256GB SSD(standard)

Network: WIFI, Bluetooth(standard)/4G(optional)

Remote control system

Physical channel: 27

Main joystick: 2(industrial joysticks with hall sensors)

Auxiliary rocker: 4

Key buttons: 12

Simulate keystrokes: 7

Remote control latency: 30ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

Serial port: RS232*3, SBUS in/out

External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi

Charging port: DC16.8V

Airborne unit

V30 HDMI(10km grade video&data&RC link)

Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)

Transmission range: 10km@LOS condition

Bandwidth: 10/20MHz

Data rates: 2-12Mbps

Power voltage: 7.4-12v

RF power: 0.1w-1w(adjustable)

Operation current: 260mA@12v power input

Video definition supported: 1080P60 Max

Weight: 120g(exclude antennas)

Dimension: 91mm*57mm*20mm

Interface

Video input interface: HDMI&CVBS

UART port: 1

SBUS port: 2

Power supply interface: XT30

V21 LAN(10km grade video&data&RC link)

Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)

Transmission range: 10km@LOS condition

Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)

Data rates: 2-12Mbps

Power voltage: 7.4-12v

RF power: 0.1w-1w(adjustable)

Operation current: 260mA@12v power input

Video definition supported: 1080P60 Max

Weight: 120g(exclude antennas)

Dimension: 91mm*57mm*20mm

Interface

Video input interface: HDMI&CVBS

UART port: 1

SBUS port: 2

Power supply interface: XT30
