Product Details:
|
| Channel: | 16 Physical Channels | Remote Control Range: | +V21:10KM |
|---|---|---|---|
| Frequency: | +V21:800MHz/1.4GHz/2.4GHz | RF Power: | V21: 0.1-1w(adjustable) |
| Remote Control Latency: | 40ms | Battery Capacity: | 7.4V/3220mAh(RC)+8.4V/6800mAh（PC） |
| Duration: | 9h With Full Battery Capacity | Weight: | 1.5kg |
| Screen: | 7inch+industrial Touch Screen+800CCD Sunlight Readable | Resolution: | 1280*800 |
| Integrated Computer: | Panasonic FZ-M1 | CPU: | Intel I5 7Y57 |
| ROM: | 4G | Storage: | 256GB SSD |
| System: | Windows 10 | Dimension: | 300mm*158mm*40mm |
| IP Rating: | IP65 | Network: | WIFI/Bluetooth/4G |
| External Interface: | USB3.0 *2 | Operating Temperature: | -20~+60℃ |
| High Light: | GCS Ground Control Station 2.4GHz,GCS Ground Control Station 800MHz,Handheld ground control station gcs |
||

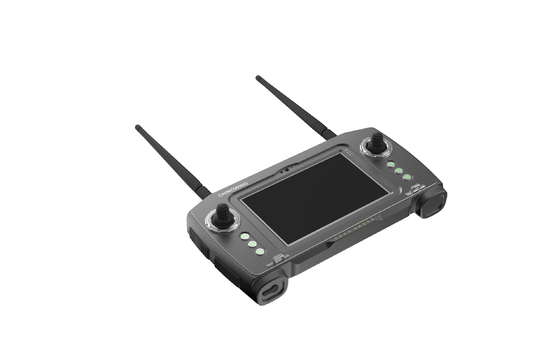

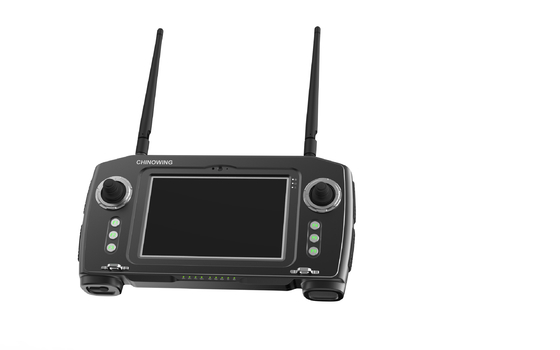

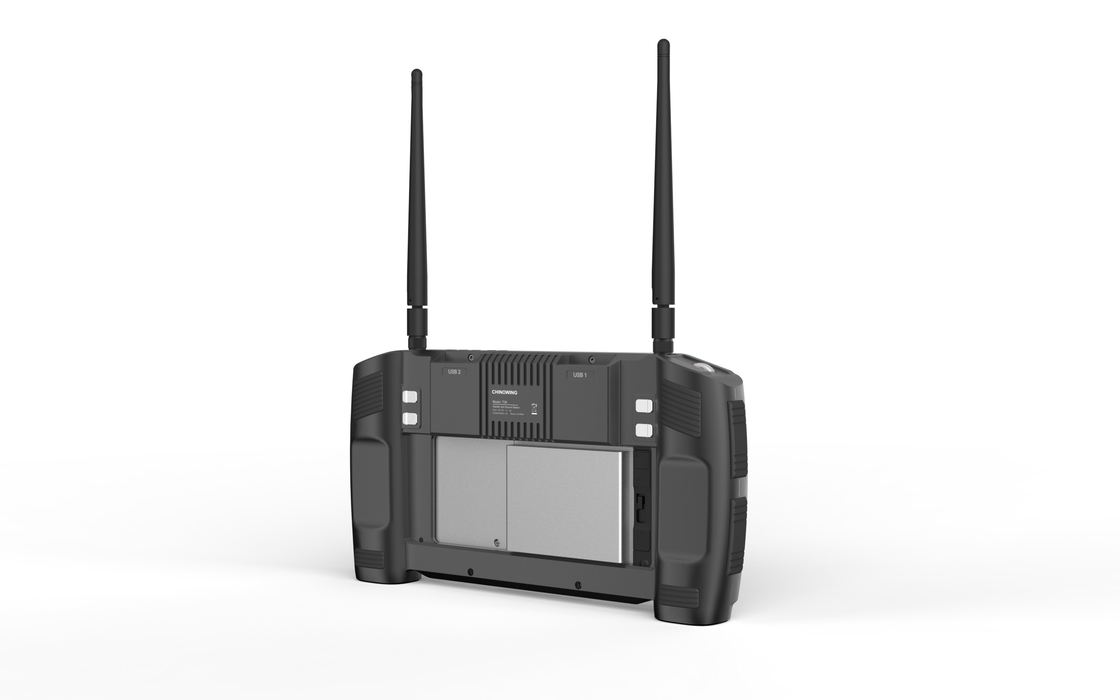

T26 video&data&RC all in one hand held ground control station
In terms of capability, the T26 provides a very high integration of Panasonic FZ-M1 with video ,data and radio link technology. The system provides the capability of mission planning, attitude control,payload management,remote monitoring,real-time video display,etc.In order to provide high performance and convenient operation, the T26`s features are sunlight-readable ,multi-touch,lightweight,16 channels,and the Windows 10 operating system and strong hardware enabling scalability.
The rugged,water and dust-proof design,is especially suitable for the operation in the harsh environment.
Performance upgrade
Integration of Panasonic is three computer FZ-M1
The original 10 Windwos system
Intel core processors
Sunshine can video,brightness 800 CD/㎡
IP65 rating
Perfect remote control experience
Double hall rocker
Doubel round rockker
Light alloy buttons
Big long battery life
Battery capacity is 3220mAh +6800mAh
Remote sensing length test about 9 h
The web browsing time about 12h
Modelling design
Aviation aluminum alloy shell,strong and lightweight
Product the total weight is only 1.5kg
Around with soft rubber,skid resistance to knock against
Parameters
| T26 GCS | |||
| Channel | 16 physical channels | ROM | 4GB |
| Remote control range | 加 V21:10KM | Storage | 256GB SSD |
| Frequency | 加V21:800MHz/1.4GHz/2.4GHz | System | Windows 10 |
| RF power | 加V21:0.1W-1W(adjustable) | Dimension | 300mm*158mm*40mm |
| Remote control latency | 40ms | IP rating | IP65 |
| Battery capacity | 7.4V/3220mAh (RC) +8.4V/6800mAh(PC) | Network | wifi/bluetooth/4G |
| Duration | 9H with full capacity | External interface | USB3.0*2 |
| Screen | 7inch+industrial touch screen+800CCD sunlight readable | Operating temperature | -30~60℃ |
| Integrated computer | Panasonic FZ-M1 | ||
| CPU | Intel i5 7Y57 | ||
