Product Details:
|
| Channel: | 16 Physical Channel | Remote Control Range: | +V21:10KM |
|---|---|---|---|
| Frequency: | +V21:800MHz/1.4GHz/2.4GHz | RF Power: | V21: 0.1-1w(adjustable) |
| Remote Control Latency: | 40ms | Battery Capacity: | 7.4V/3220mAh(RC)+8.4V/6800mAh（PC） |
| Duration: | 9h With Full Battery Capacity | Weight: | 1.5kg |
| Screen: | 7inch+industrial Touch Screen+800CCD Sunlight Readable | Resolution: | 1280*800 |
| Integrated Computer: | Panasonic FZ-M1 | CPU: | Intel I5 7Y57 |
| ROM: | 4G | Storage: | 256GB SSD |
| System: | Windows 10 | Dimension: | 300mm*158mm*40mm |
| IP Rating: | IP65 | Network: | WIFI/Bluetooth/4G |
| External Interface: | USB3.0 *2 | Operating Temperature: | -20~+60℃ |
| High Light: | universal ground control station IP65,universal ground control station Windwos10 |
||

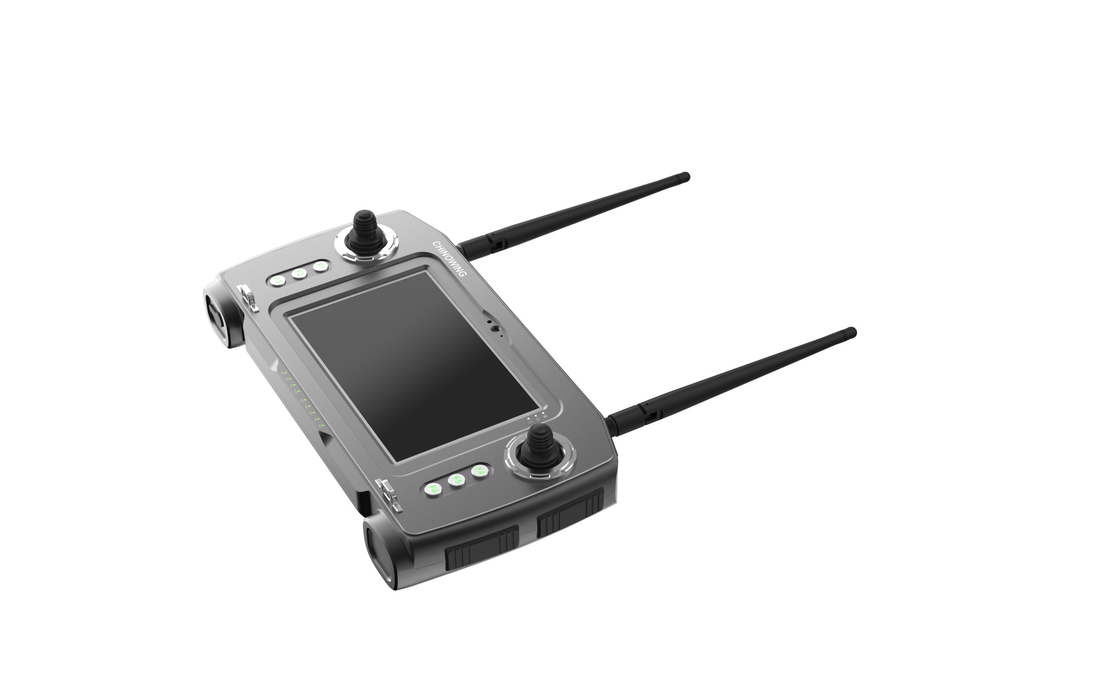

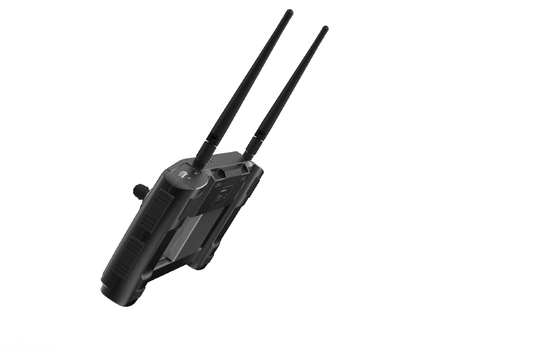

T26 hand-held ground control station() IP65 Windwos10)
In this portable system, Panasonic FZ-M1 and video ,data and radio links are integrated with T26 to allow high-performance and high reliability.It features such featues as remote monitoring ,payload control,mission planning,attitude control,etc.To ensure high-performance and convenient operation,features of T26 includes sunlight-readable,multi-touch display ,lightweight,16 channels,window 10 operating system and strong hardware enabling the scalability.
The rugged,water and dust-proof design,is especially suitable for the operation in the harsh environment.
Performance upgrade
Integration of Panasonic is three computer FZ-M1
The original 10 Windwos system
Intel core processors
Sunshine can video,brightness 800 CD/㎡
IP65 rating
Perfect remote control experience
Double hall rocker
Doubel round rockker
Light alloy buttons
Big long battery life
Battery capacity is 3220mAh +6800mAh
Remote sensing length test about 9 h
The web browsing time about 12h
Modelling design
Aviation aluminum alloy shell,strong and lightweight
Product the total weight is only 1.5kg
Around with soft rubber,skid resistance to knock against
Parameters
Overall
Overall weight: 1.5kg
Dimension: 30cm*15.8cm*4cm
Operation temperature: -20℃-+60℃
Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)
Endurance: 9hs
IP rating: IP65
Communication system: V21(10km grade)
Antennas: 2-4dB ZYJB antenna
Computer
Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)
Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800
Operating system: Win10
CPU: Intel i5 7Y57
Memory: 8G
Storage: 256GB SSD
Network: WIFI/Bluetooth/4G
Remote control system
Physical channel: 16
Joysticks: 2
Pull wheel: 2
buttons: F1-F10
(Each channel programmable, the user can self-define each joystick, switch, button, etc)
Remote control latency: 40ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
External interface: USB3.0*2
