Product Details:
|
| Channel: | 22 Physical Channels | Frequency: | 806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz |
|---|---|---|---|
| RF Power: | V21: 0.1-0.5w(adjustable) | Remote Control Latency: | 30ms |
| Battery Capacity: | 8.4V/6800mAh Built In Battery，external Battery Supported | Duration: | 8h@full Battery Capacity |
| Weight: | 1060g | SBUS: | 2*SBUS Ports |
| Video&data Link: | Built-in | Joystick: | Left And Right Handed Mode/back Center Mode/hall Effect |
| Other Channels: | Auxiliary Joystick*2 Position Switch*4 Knob*2 Key Button*8 Pull Wheel*2 | Mobile Devices: | 5-10.1 Inch Mobile Device |
| System: | Windows10/Android | IP Rating: | IP 53 |
| External Interface: | USB3.0 LAN | Operating Temperature: | -10~+60℃ |
| Dimension: | 290mm*150mm*60mm | Remote Control Range: | 5-17km |
| High Light: | 1060g GCS Ground Control Station,GCS Ground Control Station 17km,5km drone ground control station |
||

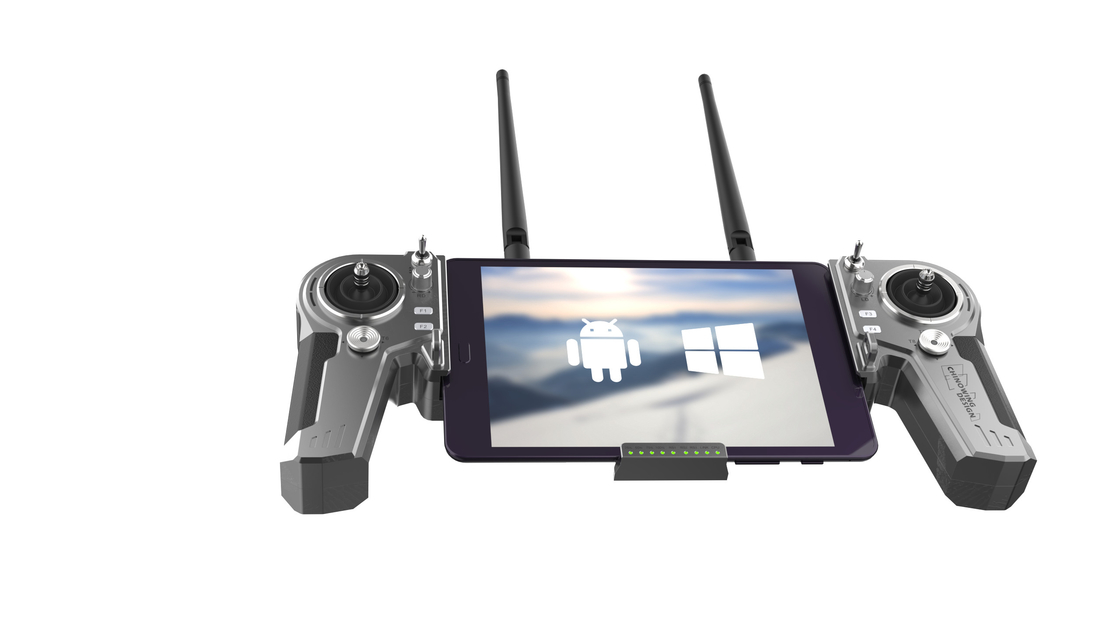

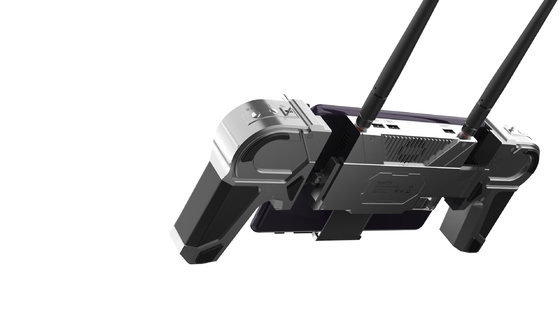

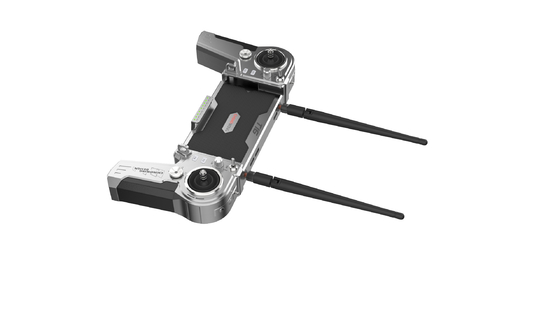

1060g T16 hand held GCS with mobile device
T16 is a portable and compact ground control station (GCS), which is designed to be operated conveniently, safely, and efficiently, especially for individual use. Supporting iOS and Android systems, T16 allows control of the drone and its payload, as well as displaying real-time on-board status. The military-grade data link ensures flight stability and safety.
Product features
Main and secondary joysticks,programmable dual SBUS independent output
10 liner channels meeting various control demand
Multiple joystick options,left and right handed mode,back center mode,industrial hall effect joystick
Universal platform,compatible with the most flight controllers
Remote control.temetry data,real-time HD video display,suitable for individual operation
The physical channel supports USB HID input to the computer,with up to 8 quick buttons available for quick ground station operation
Long endurance,up to 8h with full battery capacity,meanwhile supporting external battery powering
Programmable dual SBUS independent output,able to control the payload and the drone
800MHz,1.4GHz,2.4GHz can be chosen in the soft ware communication range 10km+
Remote controller T16
Overall weight: 1060g
Dimension: 290mm*150mm*60mm
Operation temperature: -10~+60℃
IP rating: IP53
RF power: 0.1-0.5w
Remote control latency: 30ms
Ground unit of video link: Built-in
Power supply: 8.4V/6800mAh built-in battery, external battery supported
Endurance: 8h@full battery capacity
Mobile device: Support 5-10.1inch tablet or phone
Operation system: Windows/Android
Remote control range: 10km grade@LOS condition
Channel: 22
Main joystick: 2 (left and right handed mode/back center mode/Hall effect)
Auxiliary joystick: 2
3-position switch: 4
Knob : 2
Key button: 8
Pull wheel: 2
Interface: SBUS port /Dual SBUS ports with HID input
External interface: USB3.0
V21(10Km grade video&data& link)
Frequency: 800MHz(806-826MHz)
1.4GHz(1427.9-1447.9MHz)
2.4GHz(2401.5-2481.5MHz) 3 frequency modules integrated in one, frequency can be modified in the software.
Power voltage: 7.4v-12v XT30
Bandwidth: 3M/5M/10M/20M
Operation current: 300mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2-4dB rod antenna
Weight: 110g(exclude antennas)
Dimension: 85mm*55mm*20mm
Video input interface: LAN
Serial port: TTL or RS232
SBUS port: 2pcs
