Product Details:
|
| Channel: | 14 Physical Channels | Frequency: | New FHSS Frequency Hopping |
|---|---|---|---|
| Storage: | 20 Groups Of Models | Programming: | Mixed Control Of Multi-group Programming |
| Language: | English | Dpi: | Full Channel 4096 Dpi |
| Application: | Helicopter/fixed-wing/multi-rotor/vehicle And Ship | Transmission Distance: | 1-3km |
| PWM: | 8 Way | SBUS: | Compatible With Futaba SBUS Protocol |
| Fail-safe: | Support | Voltage: | 7V-12V |
| Current: | 100mA | Size: | 190mm*180mm*60mm |
| Weight: | 480g | ||
| High Light: | Futaba SBUS uav drone controller,4096 Dpi Uav Drone Controller,Futaba SBUS uav flight controller |
||

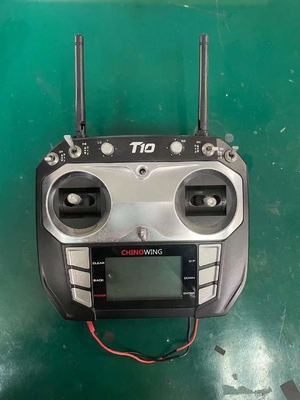

T10 model remote controller compatible with Futaba SBUS protocol
The T10 uses 2.4G FHSS technology for an enhanced response, as well as an improved anti-interference system for multiple active devices within the same area. This version features an updated antenna angle which enhances signal stability by means of two-way transmission. Two-way transmission enables real-time control of the flight condition. At the same time, this version enhances the control feeling by means of ascent.Incorporates physical channels 10:three shift levers,two knobs,four shortcut keys, convenient power supply,can use 4 5 batteries or lithium batteries,quick conversion plug,at the same time to counter-attack.No redundant design,make flying safe.
R10 Match the R10 use
R20 The R20 receiver for common reseiver,can be used with Chinowing products.Use the high maturity of military level digital module ,tie-in integration link design,time -sharing multiplexing improve channel utilization,can transmit a reuters data at the same time,two way S-BUS control data.Products small size,light weight low power consumption and strong anti-jamming capability
| T10 GCS | |||
| Channel | 14 physical channels | PWM | 8 way |
| 2.4GHz(interactive) | SBUS | Compatible with Futaba SUS protocol | |
| Frequency | New FHSS frequency hopping | fail-safe | support |
| Storage | 20 groups of models | voltage | 7V-12V |
| Programming | Mixed control of multi-group programming | Size | 190mm*180mm*60mm |
| Language | English | weight | 480g |
| dpi | full channel 4096 dpi | ||
| application | Helicopter fixed-wing multi-rotor vehicle and ship | ||
| transmission distance | 1-3km | ||
| R10 Match the R10 use | R20 The R20 receiver for common reseiver,can be used with Chinowing products.Use the high maturity of military level digital module ,tie-in integration link design,time -sharing multiplexing improve channel utilization,can transmit a reuters data at the same time,two way S-BUS control data.Products small size,light weight low power consumption and strong anti-jamming capability | ||
| size | 46.5mm*27.0mm*14.0mm | Frequency of communication | 840MHz/900MHz |
| Application | Helicopter fixed-wing multi-rotor vehicle and ship | Power supply voltage | 7.4V-24V |
| sensitivtity | -105dBm | Operation current | 300A(12V) |
| Modulation method | GFSK | Serial port | TTL*1+SBUS*2 |
| System model | Automatic frequency hopping number system | SBUS | SBUS*1 |
| Data resolution | 1024 | Power | 100mW-1W |
| Antenna | 3dB rod Antenna | ||
| Port baud rate | 115200(adjustable) | ||
| The air rate | 100K(adjustable) | ||
| Size | 53mm*40mm*14mm | ||
| weight | 43g | ||
| operational environment | -10~60℃ | ||
