Product Details:
|
| Modulation Hopping: | Frequency Hopping | Forwarding Error: | Hamming/BCH/Golay/Reed-solomon |
|---|---|---|---|
| Error Detection: | 32 Bits Of CRC,ARQ | Encrption: | Optional(see-AESoption) |
| Output Power: | 100mW-1W（20-30dBm） | Tansmission Range: | 30-60km |
| Serial Port: | 3.3V CMOS TTL(RS232 Optional） | Sensitivity: | -110dBm@115.2kbps -108dBm@172.8kbps -107dBm@230.4kbps |
| Transmission Protocol: | Transparent Transmission | Baud Rate: | 9600bps--230400bps(adjustable) |
| Wireless Link Rate: | 276kbps Max | Power Supply Voltage: | Ground Unit:5.0v Airbone Unit:7.4-24v |
| Antenna Interface: | SMA | Data Interface: | GH1.25-4P&USB Type-c |
| Dimension: | 62mm*40mm*13mm | Weight: | 40g(exclude Antennas) |
| Operating Temperature: | -20--85℃ |

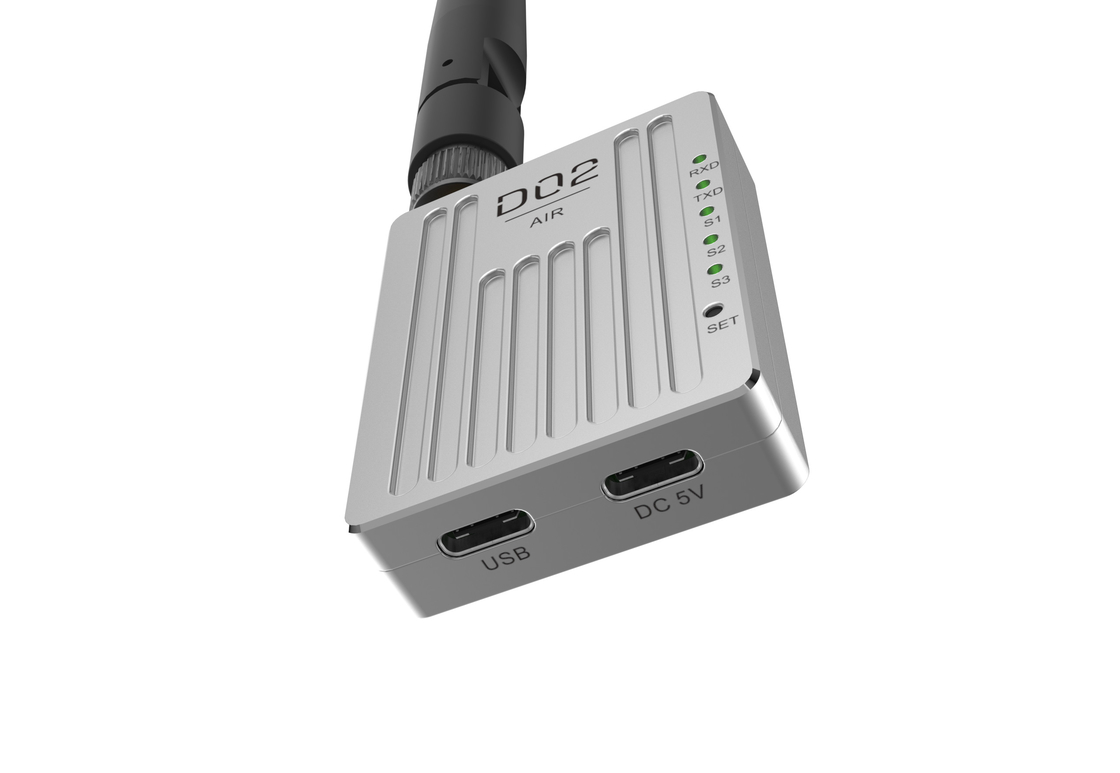

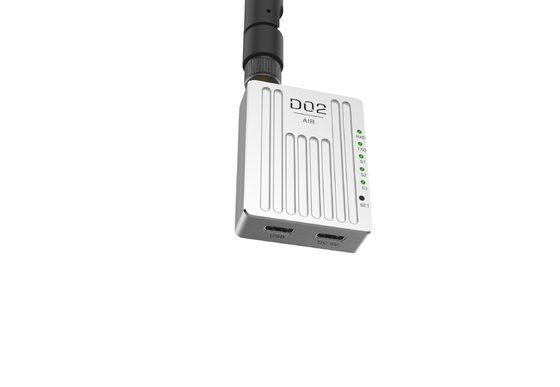

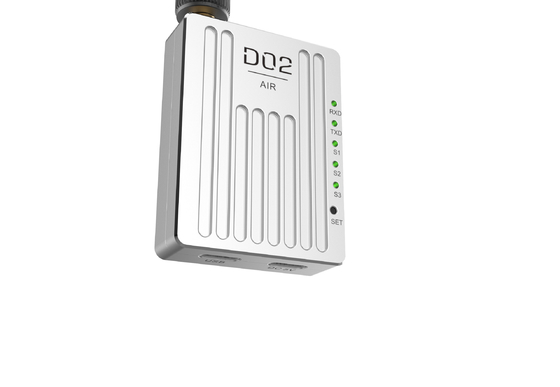

D02 is a data link working in 900MHz frequency band which the transmission range can reach 30km.
It supports point to point, reply, point to multipoint communication. D02 is ideal for aerial service because of the compact size, high integration, high sensitivity.
Features
Parameters
Modulation: Frequency hopping
Forwarding error detection: Hamming/BCH/Golay/Reed-Solomon
Error Detection: Error detection 32 bits of CRC, ARQ
Encryption: Optional(AES128/256)
Sensitivity:
-110dBm @115.2kbps
-108dBm @172.8kbps
-107dBm @230.4kbps
Transmission protocol: Transparent transmission
Output power: 100mW~1w(20-30dBm)
Operating temperature: -55℃~+85℃
Transmission range: 30km(depend on the environment)
Baud rate: 9600bps~230400bps(adjustable)
Wireless Link Rate: 276kbps max
Power supply voltage
Ground unit:5.0v;
airborne unit: 7.4v~24v
Antenna interface: SMA
Serial port: 3.3v CMOS TTL(RS232 optional)
Dimension: 62mm(L)*40mm(W)*13mm(H)
Weight: 40g(exclude antennas)
