Product Details:
|
| Modulation Hopping: | Frequency Hopping | Forwarding Error: | Hamming/BCH/Golay/Reed-solomon |
|---|---|---|---|
| Error Detection: | 32 Bits Of CRC,ARQ | Encrption: | Optional(see-AESoption) |
| Output Power: | 100mW-1W（20-30dBm） | Transmission Range: | 30-60km |
| Serial Port: | 3.3V CMOS TTL(RS232 Optional） | Sensitivity: | -110dBm@115.2kbps -108dBm@172.8kbps -107dBm@230.4kbps |
| Baud Rate: | 9600bps--230400bps(adjustable) | Wireless Link Rate: | 276kbps Max |
| Power Supply Voltage: | Ground Unit:5.0v Airbone Unit:7.4-24v | Antenna Interface: | SMA |
| Data Interface: | GH1.25-4P&USB Type-c | Dimension: | 62mm*40mm*13mm |
| Weight: | 40g(exclude Antennas) | Operating Temperature: | -20--85℃ |

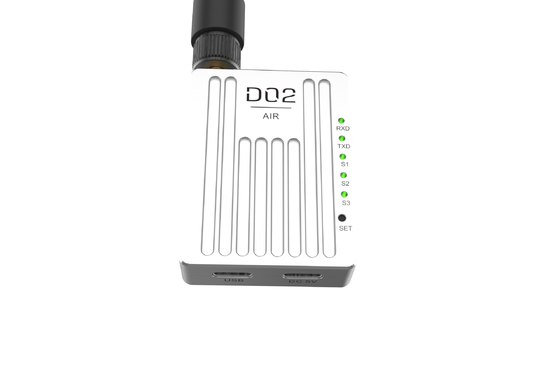

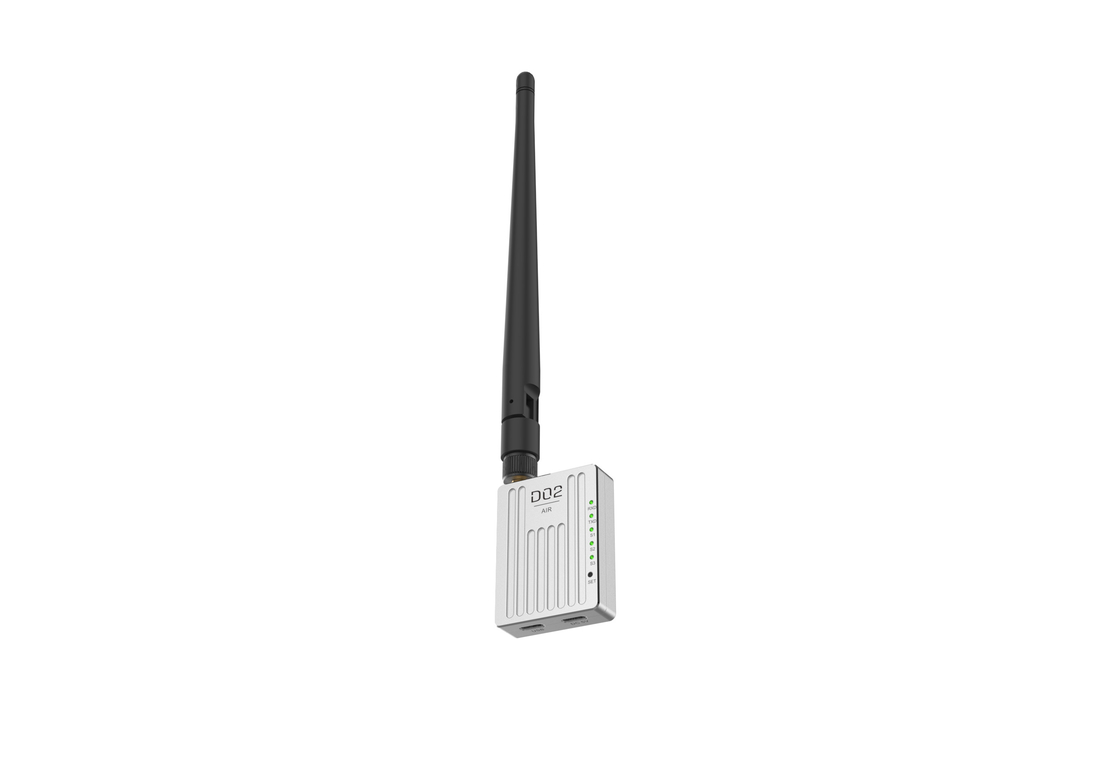

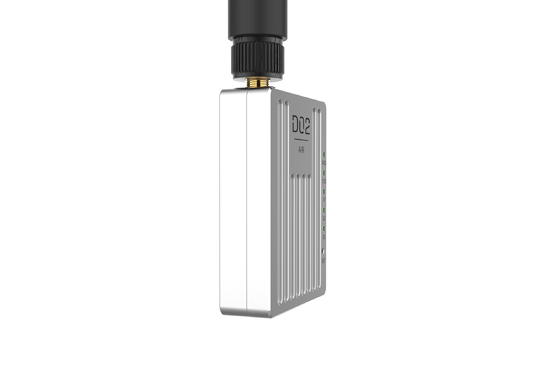

D02 is a data link `s transmission range can reach 30km and working in 900MHz frequency band.
It supports point to point, reply, point to multipoint communication. With the compact size, high integration, high sensitivity, D02 is ideal for aerial service.
Features
Parameters
Modulation: Frequency hopping
Forwarding error detection: Hamming/BCH/Golay/Reed-Solomon
Error Detection: Error detection 32 bits of CRC, ARQ
Encryption: Optional(AES128/256)
Sensitivity:
-110dBm @115.2kbps
-108dBm @172.8kbps
-107dBm @230.4kbps
Transmission protocol: Transparent transmission
Output power: 100mW~1w(20-30dBm)
Operating temperature: -55℃~+85℃

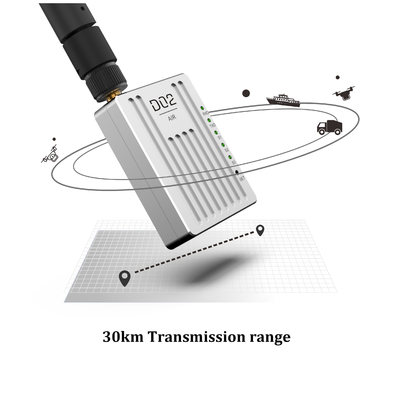

Transmission range: 30km(depend on the environment)
Baud rate: 9600bps~230400bps(adjustable)
Wireless Link Rate: 276kbps max
Power supply voltage
Ground unit:5.0v;
airborne unit: 7.4v~24v
Antenna interface: SMA
Serial port: 3.3v CMOS TTL(RS232 optional)
Dimension: 62mm(L)*40mm(W)*13mm(H)
Weight: 40g(exclude antennas)
