Product Details:
|
| Frequency: | 840MHZ/900MHZ(adjustable) | Power: | 0.1-1W(dajustable) |
|---|---|---|---|
| Baud Rate: | 1200-230400bps(adjustable) | Built-in Battery(ground Unit): | 3000mAh（12V 18650 3S Battery） |
| Operation Current: | 300mA | Power Supply: | 12.6V |
| Duration: | 15h | Operational Temperature: | -10--60℃ |
| Wireless: | WIFI+Bluetooth | Weight: | 690g |
| Dimension: | 113mm*113mm*44mm | WIFI Range: | 1-15M |
| Connection: | Type-C WIFI | ||
| High Light: | 900MHZ Long Range UAV Data Link,840MHZ Long Range UAV Data Link,12.6V Wireless Video Transmission Device |
||

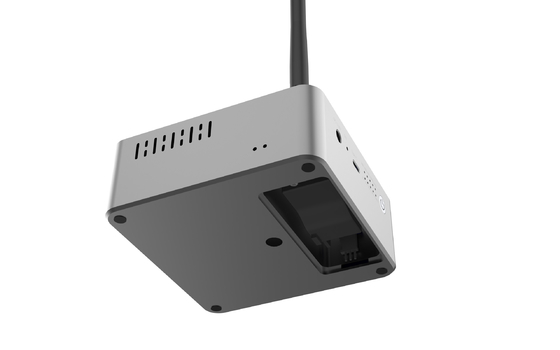

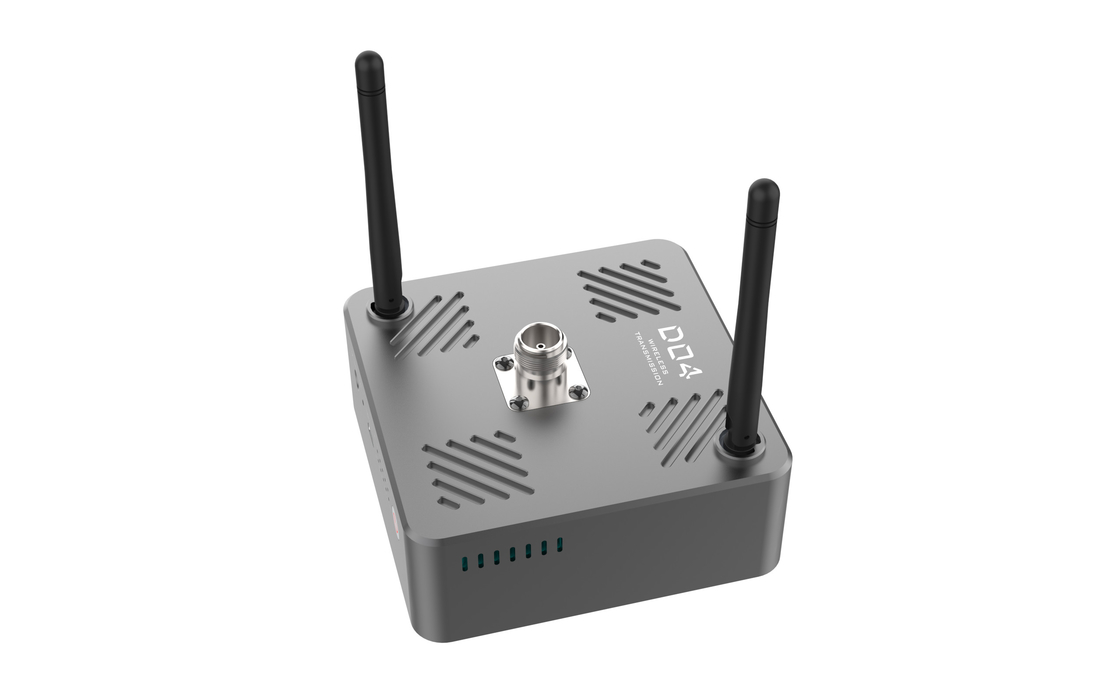

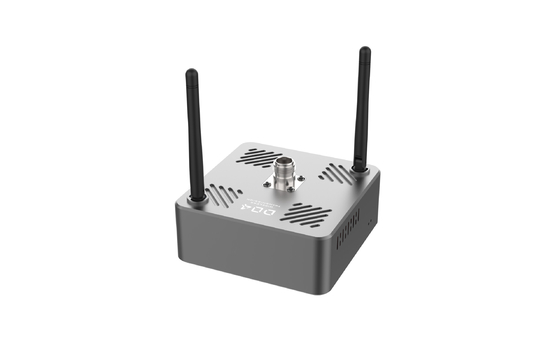

D04 wireless data&RC transmission device for drone
D04 is a data transmission device wirelessly connected to the computer ,which is particularly suitable for surveying and mapping.It can transmit two S-BUS signals and data signal simultaneously.
It is mainly used to solve the problem of short transmission range and low transmission quality of remote control and data signals.Working in the 915MHZ frequency band,D04 the maximum communication distance can reach 30km.
Features
Parameters
Frequency : 902-928MHz(Microhard P900)
Baud rate: 1200-115200(adjustable)
Operation current: 300mA
Operation temperature: -10- +60℃
Power: 0.1w-1w(adjustable)
Power supply (air borne unit): DC7.4 - 12V (2S-3S Li battery)
Casing material: Aluminium alloy
Built-in battery (ground unit) : 12v 18650 3S battery
Color: Silver gray
Weight: 43g
Dimension: 113mm*113mm*44mm
