Product Details:
|
| Frequency: | 840MHZ/900MHZ(adjustable) | Power: | 0.1-1W(dajustable) |
|---|---|---|---|
| Baud Rate: | 1200-230400bps(adjustable) | Built-in Battery(ground Unit): | 3000mAh（12V 18650 3S Battery） |
| Operation Current: | 300mA | Power Supply: | 12.6V |
| Duration: | 15h | Operational Temperature: | -10--60℃ |
| Wireless: | WIFI+Bluetooth | Weight: | 690g |
| Dimension: | 113mm*113mm*44mm | WIFI Range: | 1-15M |
| Connection: | Type-C WIFI | ||
| High Light: | Transmission GCS Ground Control Station,840MHZ Drone Video Transmission System,900MHZ Drone Video Transmission System |
||

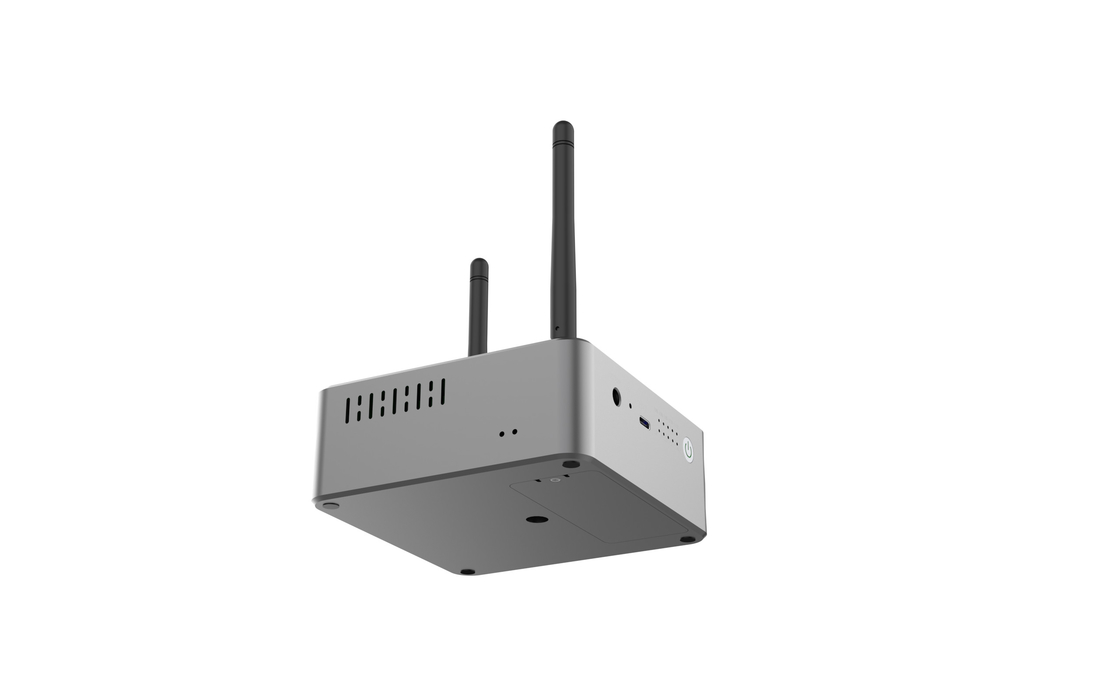

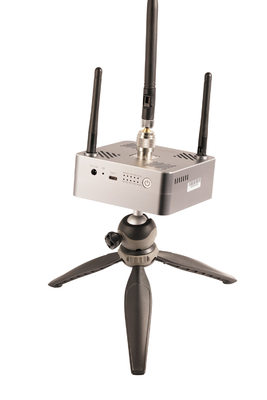

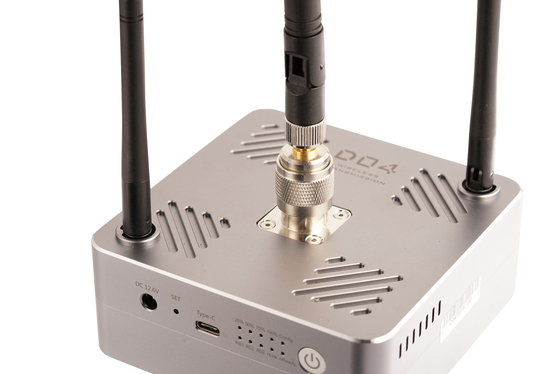

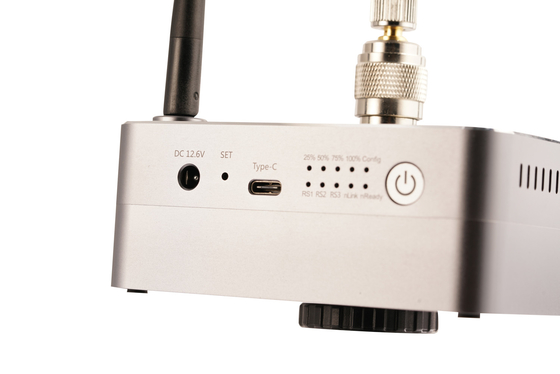

D04 wireless data & RC all in one transmission device(840MHZ/900MHZ)
This is a wireless device for sending data to the computer which is especially suitable for surveying and mapping. The D04 can transmit two S-BUS signals and a data signal simultaneously.
The D04 is used to solve the problem of short distance transmission and poor transmission quality.
Based on 915MHZ frequency band, D04 can communicate for a distance of 30km at maximum.
Features
Parameters
Frequency : 902-928MHz(Microhard P900)
Baud rate: 1200-115200(adjustable)
Operation current: 300mA
Operation temperature: -10- +60℃
Power: 0.1w-1w(adjustable)
Power supply (air borne unit): DC7.4 - 12V (2S-3S Li battery)
Casing material: Aluminium alloy
Built-in battery (ground unit) : 12v 18650 3S battery
Color: Silver gray
Weight: 43g
Dimension: 113mm*113mm*44mm
