Product Details:
|
| Dimension: | 65mm*47mm*16mm | Weight: | 52g |
|---|---|---|---|
| High Light: | LTE Wireless Data Transfer Device,USV Wireless Data Transfer Device |
||

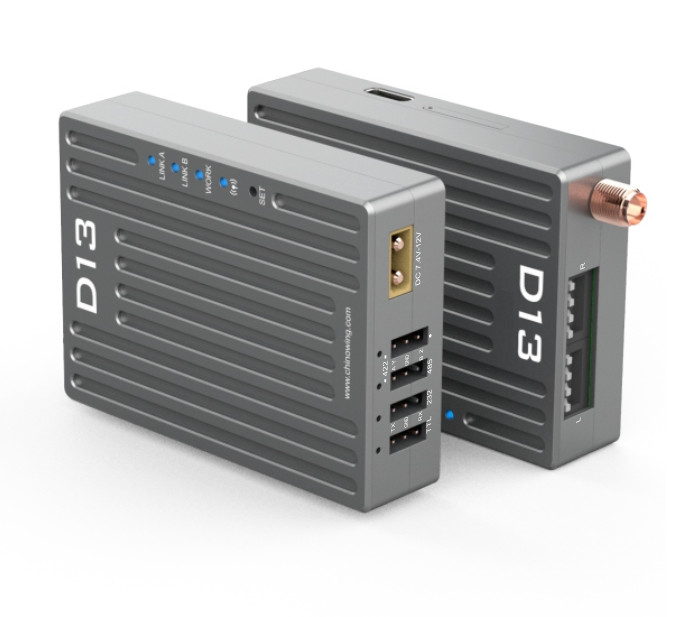

D13 4G wireless data transmission device(5 modes,13 frequencies)
Based on LTE, the D13 4G wireless data link is suitable for use with 4G of China Mobile, China Unicom, China Telecom and 3G of China Mobile, Unicom and 2G networks.A 4G card provides easy use, transparent transmission, and low latency operation for the user of D13. With two dial switches, the device offers high speed and low latency.It is applicable for UAV, USV, firefighting robot, explosive disposal robot, and other industrial applications. Depending on the dial switch status, the radio link can be switched between TTL,RS232,RS285,RS422.
Product feautures
Transparent transmission
5 modes,13 frequencies
TTL/RS-to-4G
High speed,low latency
Socket link*2
FTP update
FOTA update
Passthrough cloud
| D13 Wireless Data link | ||
| GSM | GSM WCDMA FDD-LTE GSM TD-SCDMA TD-LTE FDD-LTE | 联通(4G 3G 2G) 移动(4G 3G 2G) 电信(4G) |
| Power | +23DBM -+30DBM | NA |
| Baud rate | 1200BPS -460.8KBPS | Adjustable |
| Data ports | Two-way single data port | TTL RS232 RS485 RS422 |
| Time delay | 300MS | NA |
| voltage | 7.4-12V | NA |
| opertaion current | 100Ma | 12v |
| Transmission rate | depending on the network | up:128kbps-50Mbps; Down:384kbps-150Mbps |
| operational environment | -10--60℃ | Humidity 5-95％,RH |
| Dimension | 65mm*47mm*16mm | |
| weight | 52g | |
