Product Details:
|
| Dimension: | 65mm*47mm*16mm | Weight: | 52g |
|---|---|---|---|
| High Light: | 4G Long Range UAV Data Link,Long Range UAV Data Link 52g,52g wireless data link |
||

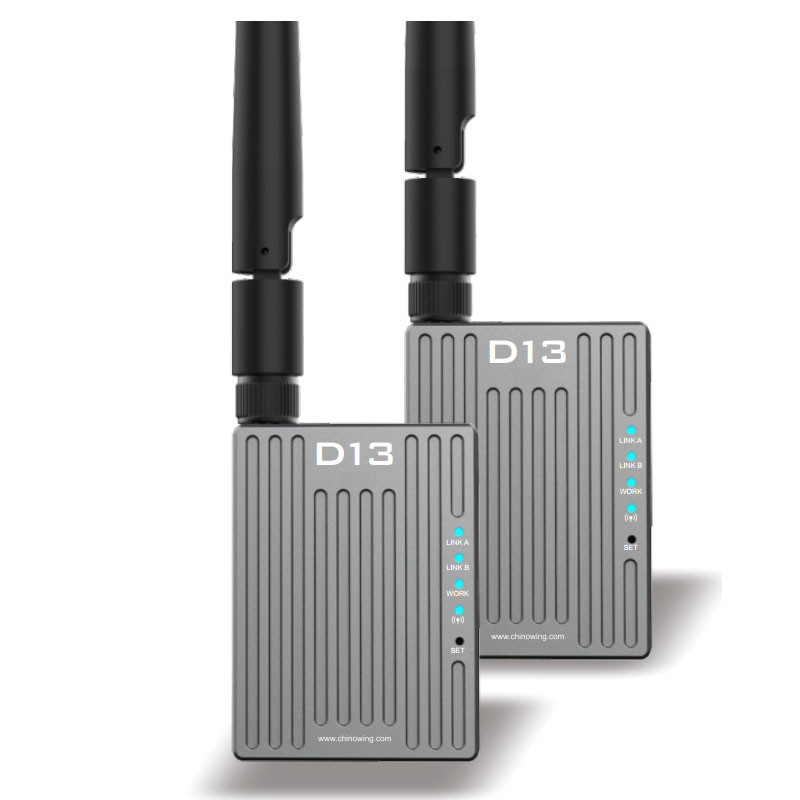

D13 4G wireless data link(65mm*47mm*16mm)
The D13 4G Wireless data link is based on LTE, and can be used with 3G, 4G, and 2G networks - including China Mobile, China Unicom, and China Telecom.With its transparent transmission, easy use and low latency, the D13 has two dial switches with high performance and low latency. A dial switch allows the radio link to be switched between TTL,RS 232,RS285,RS422. UAVs, USVs, firefighting robots, explosive disposal robots, and other industrial applications can make use of this feature.
Product feautures
Transparent transmission
5 modes,13 frequencies
TTL/RS-to-4G
High speed,low latency
Socket link*2
FTP update
FOTA update
Passthrough cloud
| D13 Wireless Data link | ||
| GSM | GSM WCDMA FDD-LTE GSM TD-SCDMA TD-LTE FDD-LTE | 联通(4G 3G 2G) 移动(4G 3G 2G) 电信(4G) |
| Power | +23DBM -+30DBM | NA |
| Baud rate | 1200BPS -460.8KBPS | Adjustable |
| Data ports | Two-way single data port | TTL RS232 RS485 RS422 |
| Time delay | 300MS | NA |
| voltage | 7.4-12V | NA |
| opertaion current | 100Ma | 12v |
| Transmission rate | depending on the network | up:128kbps-50Mbps; Down:384kbps-150Mbps |
| operational environment | -10--60℃ | Humidity 5-95％,RH |
| Dimension | 65mm*47mm*16mm | |
| weight | 52g | |
