Product Details:
|
| Color: | Silver | Dimension: | 65mm*47mm*22mm |
|---|---|---|---|
| IP: | TCP UDP TCP/IP ARP ICMP DHCP HTTP HTTPS SSH SNMP FTP DNS | ||
| High Light: | 2x2 MIMO Long Range UAV Data Link,2.3G Long Range UAV Data Link,22mm Long Range UAV Data Link |
||

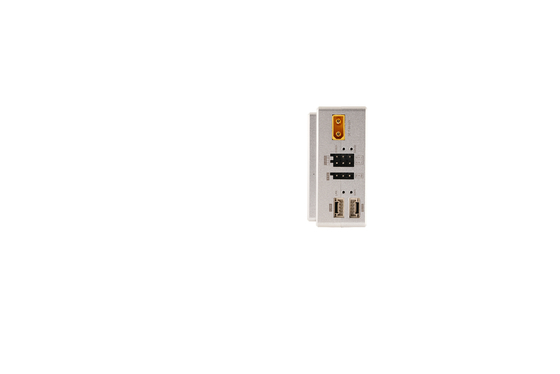

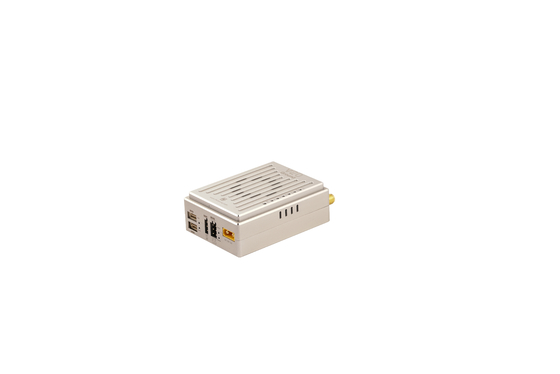

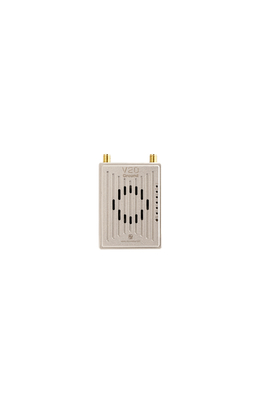

V20 video&data&RC link(65mm*47mm*22mm)
A V20 all-in-one module is a 2*2MIMO wireless digital data link,and has 10/100 Ethernet video transmission and serial gateway functions; it can simultaneously transmit remote control, video and data. Small size,high integration and high sensitivity.
Product features
Adopt 2*2 MIMO wireless digital data link
10/100 Ethernet video link
Serial gateway function
Transmit video,data,remote control signal simultaneously
Compact size,high integration,high sensitivity
| V20 video data RC link | ||
| frequency | 2.3G 2.4G 2.5G | 2.304-2.390GHZ 2.402-2.482GHZ 2.500-2.570GHZ |
| power | 0.1-1W | adjustable |
| transmission range | 3-7km | depending on the network |
| S-BUS port | S-BUS*2 | NA |
| port numbers | 1port | full duplex baud rate adjustable |
| time delay | 10MS | NA |
| power input | 7.4-24V | NA |
| ADSL | 4MHZ,8MHZ | options |
| Video output/input | LAN/WAN | NA |
| Dimension | 65mm*47mm*22mm | |
| IP | TCP UDP TCP/IP ARP ICMP DHCP HTTP HTTPS*, SSH* SNMP FTP DNS | |
