Product Details:
|
| Color: | Silver | Frequency: | 800MHz:806-826MHz 1.4GHz:1427.9-1447.9MHz 2.4GHz:2401.5-2481.5MHz |
|---|---|---|---|
| Power: | 300mW-2W (adjustable) | Transmission Range: | 10km Grade/30km Grade |
| SBUS Port: | 2*SBUS Port | Serial Port: | TTL*1 RS232*1 RS485*1 |
| Bandwidth: | 3M,5M,10M,20M | Battery Capacity: | 6800mAh |
| Antenna: | 2-4dB Rod Antenna | ||
| High Light: | Data RC Video Link Transmitter,Video Link Transmitter 800MHz |
||

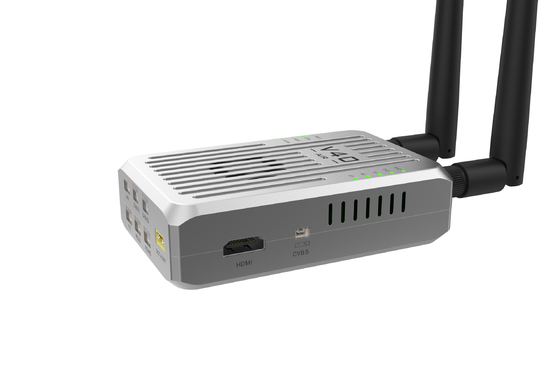

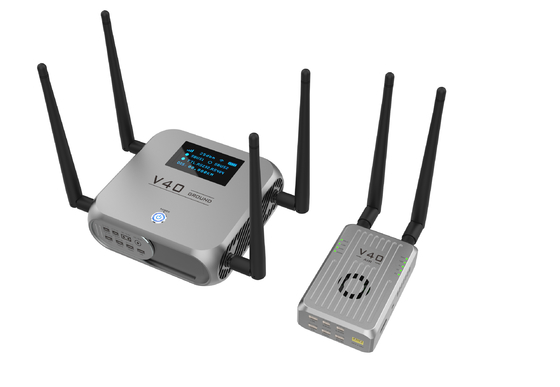

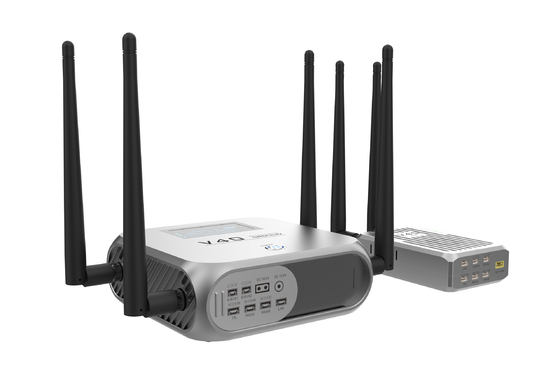

V40 cvideo&data&RC transmission device for ground/air

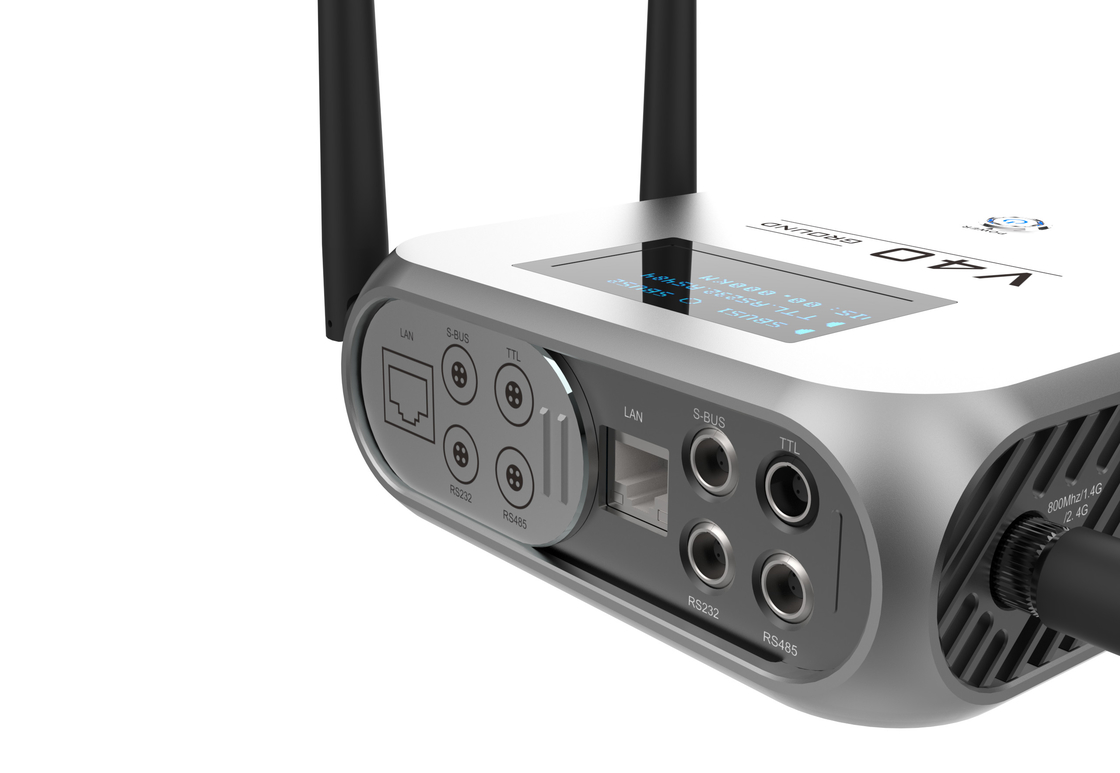

This multi-function digital link system is available with a variety of video, audio, and Ethernet inputs, three serial ports (TTL, RS232, RS485), and two SBUS ports.Communication is support by V40 in two modes: point-to-point, point-to-multipoint, the center node can communicate with any node, which significantly expands the application possibilities.This ground unit comes equipped with a wifi module and LED display so you can monitor the status of your device in real time.
Features
Parameters
| The ground side | The air side | |||
| frequency | 800MHZ:806-826MHZ 1.4GHZ:1427.9-1447.9MHZ 2.4GHZ:2401.5-2481.5MHZ |
frequency | 800MHZ:806-826MHZ 1.4GHZ:1427.9-1447.9MHZ 2.4GHZ:2401.5-2481.5MHZ |
|
| power | 300mW-2W(adjustable) | power | 300mW-2W(adjustable) | |
| transmission range | 10km grade/30km grade | transmission range | 10km grade/30km grade | |
| SBUS port | 2*SBUS port | SBUS port | 2*SBUS port | |
| Serial port | TTL*1 RS232*1 RS485*1 | Serial port | TTL*1 RS232*1 RS485*1 | |
| Tansfer protocol | Transparent transmission | Video output | LAN*1 HDMI*1 CVBS*1 (LAN and HDMI ports can be used together,HDMI and CVBS can not be used togetehr) | |
| wifi | wifi*1 | Bandwidth | 3M 5M 10M 20M | |
| WiFi data rate | 144Mbps-300Mbps | power supply | XT30 | |
| Bandwidth | 3M 5M 10M 20M | power supply voltage | DC12-24V | |
| video output | LAN*2 | interface type | GH1.25 | |
| video latency | ≤300MS | battery capacity | 6800mAh | |
| power supply | XT30 12V | working current | 470mA(DC12V) | |
| charging interface | DC12.6V | Antenna | 2-4dB rod Antenna | |
| interface type | Aviation plug/GH1.25 | Dimension | 117mm*70mm*30mm | |
| battery capacity | 6800mAh | weight | 236g(exclude Antennas) | |
| working current | 600mA(DC12V) | |||
| endurance | 10h with full capcaity | |||
| Antenna | 2-4dB rod Antenna | |||
| Dimension | 139mm*139mm*48mm | |||
| weight | 1045g(exclude Antennas) | |||
