30km Long Range UAV Data Link 2-4dB Rod Antenna With TTL RS232 RS485

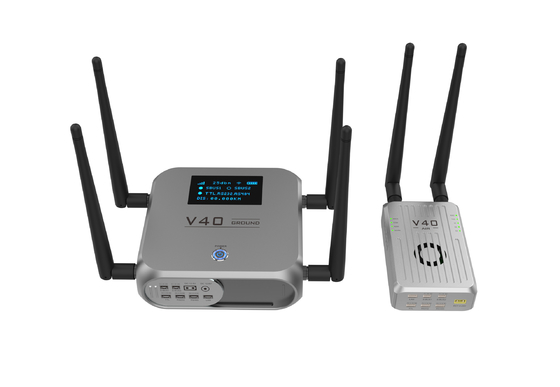

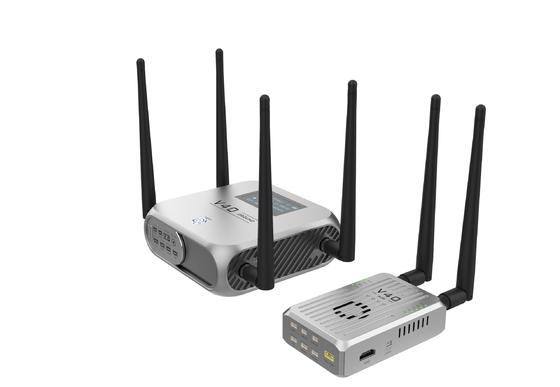

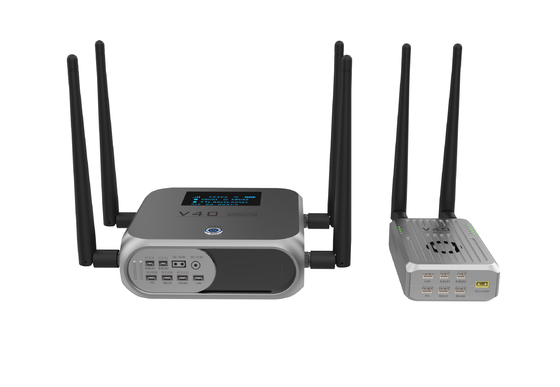

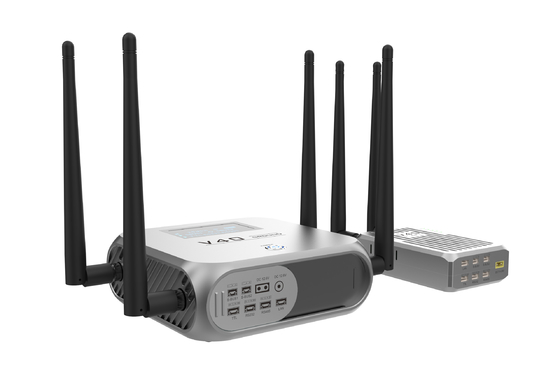

V40 multifunction video&data&RC link with TTL&RS232&RS485 serial ports

This multi-function digital link system is available with a variety of video, audio, and Ethernet inputs, three serial ports (TTL, RS232, RS485), and two SBUS ports.As for communication mode, V40 supports point-to-point and multipoint communication, the node at the center can communicate with any node, thus increasing the scope of application scenarios dramatically.The ground unit is equipped with a built-in wifi module and LED display, which are used to monitor the device's status in real time.

Features

• Multi-functions in one device, video&telemetry&R link in one
• Various interfaces: HDMI&LAN ports, 2*SBUS ports, 3*serial ports; all can be working simultaneously
• 3 frequency modules in one
• Support point to point, point to multipoint communication
• Ground unit with display screen to view the working status
• Ground unit with built-in WIFI module, able to connect to the phone, pad or computer wirelessly

Parameters

Overall

Frequency:

800MHz: 806-826MHz

1.4GHz: 1427.9-1447.9MHz

2.4GHz: 2401.5-2481.5MHz)

Transmission range: 10km grade

Bandwidth: 3M/5M/10M/20M(adjustable)

Video latency : <=300ms

Airborne unit

RF power: 300mW-2W

Power supply port: XT30

Power supply voltage: 12-24v

Operation current: 470mA@12V power supply

Operation temperature: -35℃~+60℃

Antenna: 2-4dB rod antenna

SBUS port : 2*S-BUS port

Serial port: TTL*1 & RS232*1 & RS485*1

Video input: LAN*1, HDMI*1, CVBS*1

Dimension: 117mm(L)*70mm(W)*30mm(H)

Weight: 236g(exclude antennas)

Ground unit

RF power: 300mW-2W(adjustable)

Power supply interface: XT30 12V

Charging port: DC12.6V(Aviation plug/GH1.25)

Built-in battery Capacity: 6800mAh

Endurance: 10h with full capacity

WIFI data rate: 144Mbps-300Mbps

Antenna: 2-4dB rod antenna&8-9dB fiberglass antenna

SBUS port : 2*S-BUS port INTPUT

Serial port: TTL*1 & RS232*1 & RS485*1

Video output: LAN*2

Dimension: 139mm(L)*139mm(W)*48mm(H)

Weight: 1045g(exclude antennas)
