Product Details:
|
| Channel: | 16 Channel*2 | Frequency: | 902-928MHZ |
|---|---|---|---|
| RF Power: | R20:0.1-1w(adjustable) | Remote Control Range: | 5-30km(based On The Environment) |
| Remote Control Latency: | 10ms | Battery Capacity: | 3.7V/7500mah |
| Duration: | 3H With Full Capacity | Dimension: | 300mm*160mm*40mm |
| Weight: | 1.2kg | System: | Windows 10 |
| Screen: | 8inch+1280*720+350CCD | Resolution: | 1280*720 |
| CPU: | Intel Intel Cherry Trail Z8350 | ROM: | 4GB DDR3 |
| Storage: | 64GB | IP Rating: | IP 53 |
| External Interface: | USB2.0 | ||
| High Light: | 1.2kg GCS Ground Control Station,GCS Ground Control Station USB2.0 |
||

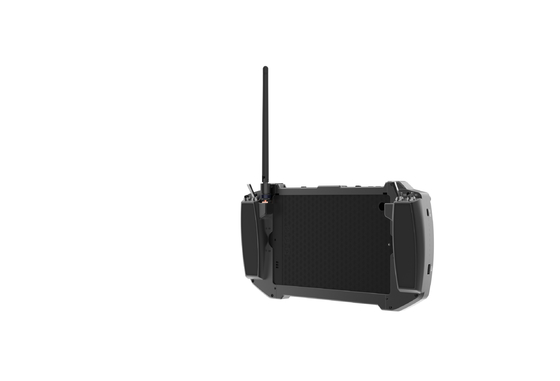

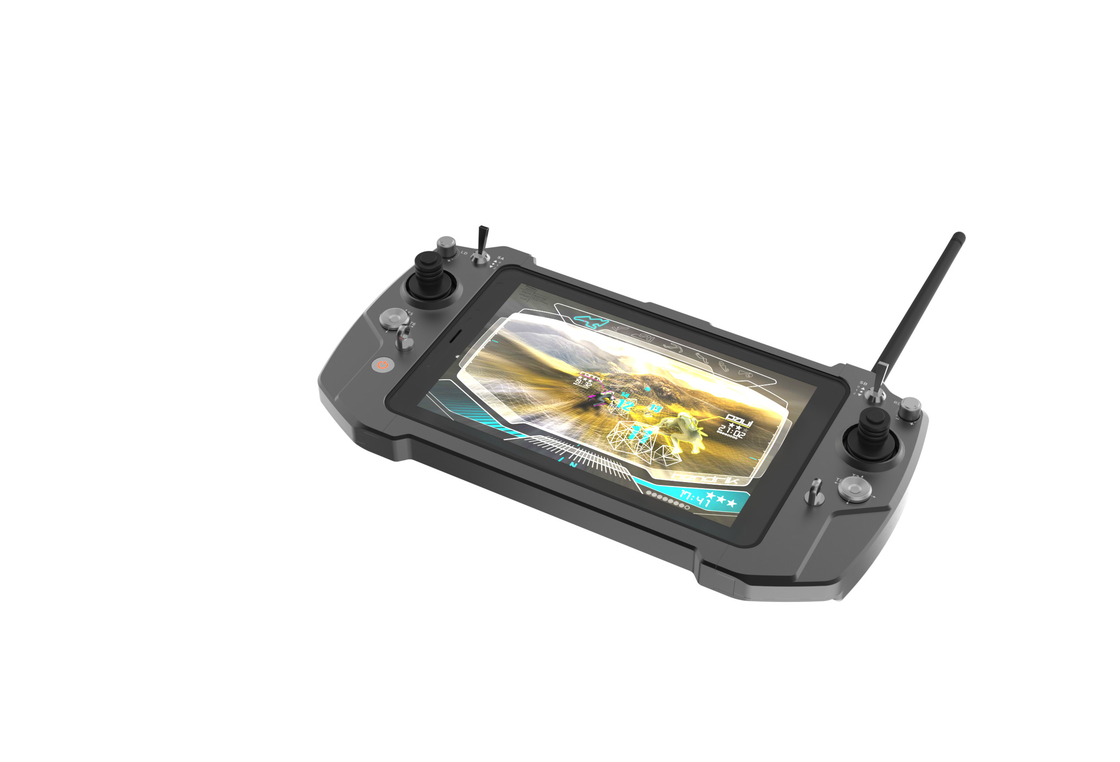

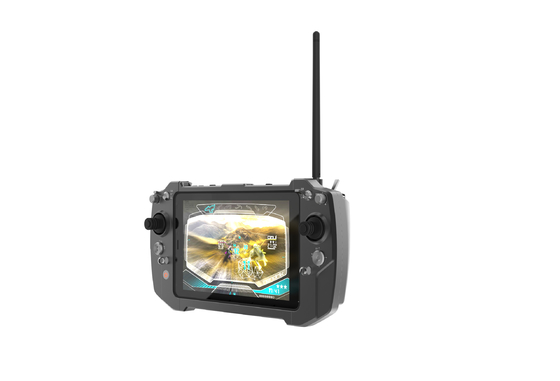

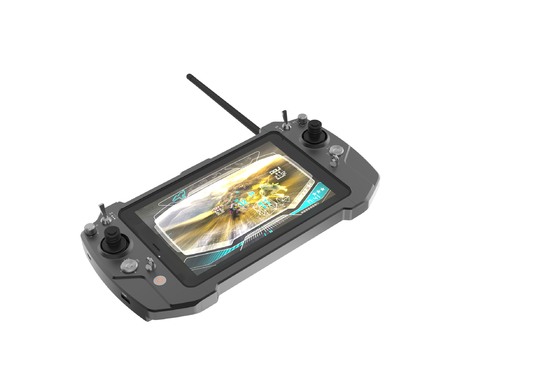

1.2kg T21 all in one hand held ground control station with dual SBUS output
T21 is a portable industrial grade ground control station equipped with a self-programmed dual SBUS system. T21 can perform as many functions as mission planning, payload control, navigation, etc. Its industrial grade computer and high-quality data communication ensure the safety and stability of the flight.Easy opertaion and transportation.
Product features
Industrial joysticks with hall effect
IP rating industrial computer
Dual auxiliary joysticks
Dual SBUS output
Each channel programmable
Remote controller T21
Overall weight: 1000g
Dimension: 300mm*160mm*40mm
Operation temperature: -10~+50℃
IP rating: IP53
RF power: 0.1-1w(adjustable)
Remote control latency: 30ms
Antenna: 2dB rod antenna
Package dimension: 370mm*285mm*105mm
Channel: 16 programmable Channels
Main Joystick: 2 ((left and right handed mode/ back to center mode/Hall effect)
Auxiliary joystick: 2
3-position switch: 4
Knob: 2
Key button: 2
Interface
SBUS port: Dual SBUS ports with HID input
External interface: USB2.0
Charging port: TYPC 5V
Computer
Display Screen: 8inch/1280*720
Brightness: 350CCD
CPU: Intel Cherry Trail Z8350
Memory : 4G
Hard disk: 64G
Network: WIFI/Bluetooth/4G
Operating system: Win10(standard)
Touch panel: 10 point capacitive touch screen
Battery: 3.7V/7500mAh
Endurance: 4h
Loudspeaker: Built-in
Airborne unit
R20 telemetry&RC link
Frequency: 900MHz(902-920MHz) Mircohard P900 module
Transmission range: 5km-50km(Depend on the environment)
Power voltage: 7.4v-12v
Operation current: 100mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2dB rod antenna
Weight: 43g(exclude antennas)
Dimension: 53mm*40mm*14mm
Interface: Serial port*1
SBUS port: 2
Power input interface: XT30
