Product Details:
|
| Channel: | 14 Physical Channels | Frequency: | New FHSS Frequency Hopping |
|---|---|---|---|
| Storage: | 20 Groups Of Models | Programming: | Mixed Control Of Multi-group Programming |
| Language: | English | Dpi: | Full Channel 4096 Dpi |
| Application: | Helicopter/fixed-wing/multi-rotor/vehicle And Ship | Transmission Distance: | 1-3km |
| PWM: | 8 Way | SBUS: | Compatible With Futaba SBUS Protocol |
| Fail Safe: | Support | Voltage: | 7V-12V |
| Current: | 100mA | Size: | 190mm*180mm*60mm |
| Weight: | 480g | ||
| High Light: | 480g Drone Remote Controller,1km Drone Flight Controllers,3km Drone Flight Controllers |
||

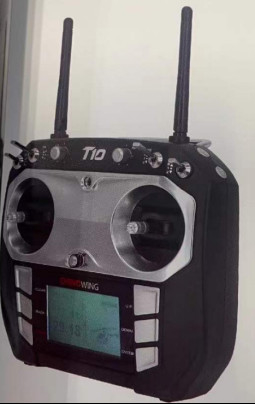

480g T10 model remote controller
The T10 is equipped with 2.4 G FHSS frequency hopping technology, which increases the reliability of remote control.Also, it enhances the anti-interference of multiple devices operating in the same area.Antenna with all new angle, enhanced signal transmission stability.Dual direction transmission, allowing real-time control of flight conditions in real time. Thus, enhancing control security, while providing a remote control experience of ascent.Physical channel 10. Features: 4 gear shift levers, 2 knobs, 4 shortcut keys. Convenient design of power supply,can be used with 4 5 batteries or lithium batteries, quick conversion plug, at the same time to carry out the counterattack. No redundant design, makes flying safe.
| T10 GCS | |||
| Channel | 14 physical channels | PWM | 8 way |
| 2.4GHz(interactive) | SBUS | Compatible with Futaba SUS protocol | |
| Frequency | New FHSS frequency hopping | fail-safe | support |
| Storage | 20 groups of models | voltage | 7V-12V |
| Programming | Mixed control of multi-group programming | Size | 190mm*180mm*60mm |
| Language | English | weight | 480g |
| dpi | full channel 4096 dpi | ||
| application | Helicopter fixed-wing multi-rotor vehicle and ship | ||
| transmission distance | 1-3km | ||
| R10接收机 Match the R10 use | R20 The R20 receiver for common reseiver,can be used with Chinowing products.Use the high maturity of military level digital module ,tie-in integration link design,time -sharing multiplexing improve channel utilization,can transmit a reuters data at the same time,two way S-BUS control data.Products small size,light weight low power consumption and strong anti-jamming capability | ||
| size | 46.5mm*27.0mm*14.0mm | Frequency of communication | 840MHz/900MHz |
| Application | Helicopter fixed-wing multi-rotor vehicle and ship | Power supply voltage | 7.4V-24V |
| sensitivtity | -105dBm | Operation current | 300A(12V) |
| Modulation method | GFSK | Serial port | TTL*1+SBUS*2 |
| System model | Automatic frequency hopping number system | SBUS | SBUS*1 |
| Data resolution | 1024级 | Power | 100mW-1W |
| Antenna | 3dB rod Antenna | ||
| Port baud rate | 115200(adjustable) | ||
| The air rate | 100K(adjustable) | ||
| Size | 53mm*40mm*14mm | ||
| weight | 43g | ||
| operational environment | -10~60℃ | ||
