Product Details:
|
| Frequency: | 902-928MHZ | Power: | 0.1-1W(dajustable) |
|---|---|---|---|
| Baud Rate: | 9600bps--230400bps(adjustable) | Data Rate: | 100k/200k(adjustable) |
| Operation Current: | 500mA (12V Power Input) | Power Input: | DC:7.4-24V |
| Operational Environment: | -10~+60℃，Humidity5-95%，RH | Weight: | 43g |
| Transmission Range: | 5-60km（Depend On The Environment） | Dimension: | 53mm*40mm*14mm |
| Ground Unit(Transmitter): | TTL Port*2 | Airvborne Unit(Receiver): | TTL Port*2 |

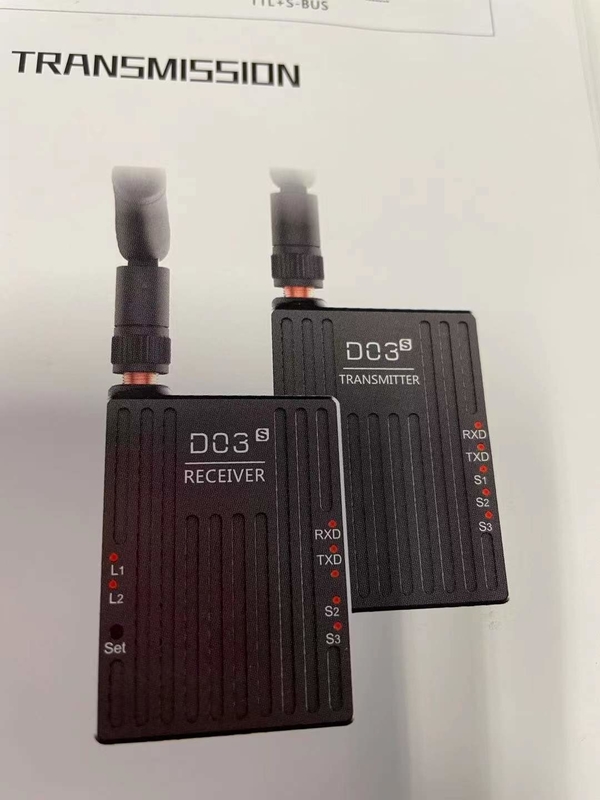

D03s double serial data transmission according to the requirements of the industry,the development of the double line link, can two way data receiving and sending at the same time,solved the industry a single radio module link,cannot balance problem,simplify the installed equipment.In addition to the port of the product parameters are the sames as the D03 radio station.
