Product Details:
|
| Dimension: | 65mm*47mm*22mm | IP: | TCP UDP TCP/IP ARP ICMP DHCP HTTP HTTPS SSH SNMP FTP DNS |
|---|---|---|---|
| High Light: | 2x2 MIMO Uav Communication Data Link,1W Uav Communication Data Link,0.1w uav data link system |
||

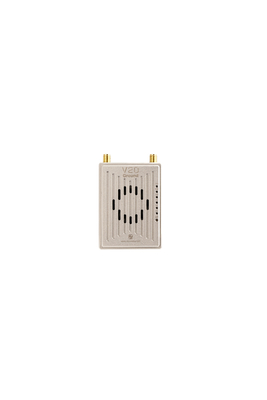

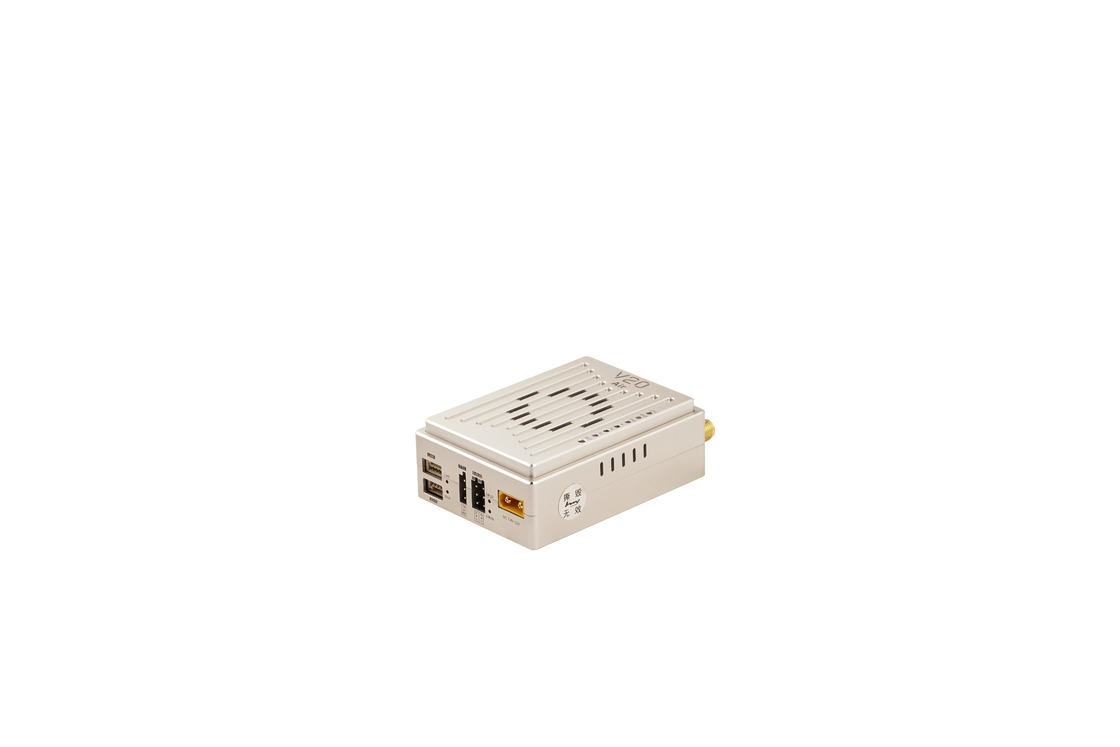

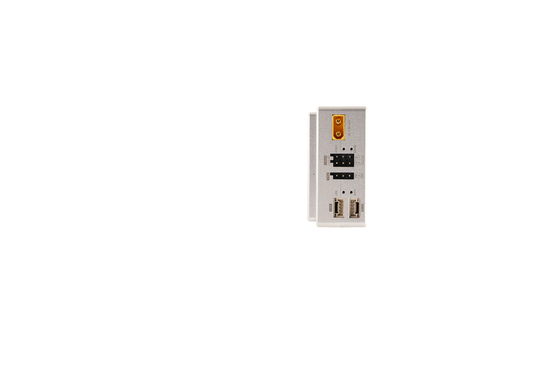

V20 video and data and RC link
The V20 is a digital data link module that integrates 2x2 MIMO wireless digital data transmission, 10/100 Ethernet video transmission, and serial gate way functions and can simultaneously transmit video, data, and remote control signals. Its small size, high integration, and high sensitivity make it suitable for industrial applications.
Product features
Adopt 2*2 MIMO wireless digital data link
10/100 Ethernet video link
Serial gateway function
Transmit video,data, remote control signal simultaneously
Compact size high integration high sensitivity
| V20 video data RC link | ||
| frequency | 2.3G 2.4G 2.5G | 2.304-2.390GHZ 2.402-2.482GHZ 2.500-2.570GHZ |
| power | 0.1-1W | adjustable |
| transmission range | 3-7km | depending on the network |
| S-BUS port | S-BUS*2 | NA |
| port numbers | 1port | full duplex baud rate adjustable |
| time delay | 10MS | NA |
| power input | 7.4-24V | NA |
| ADSL | 4MHZ,8MHZ | options |
| Video output/input | LAN/WAN | NA |
| Dimension | 65mm*47mm*22mm | |
| IP | TCP UDP TCP/IP ARP ICMP DHCP HTTP HTTPS*, SSH* SNMP FTP DNS | |
