Product Details:
|
| Power Supply Interface: | XT30 | Antenna: | 2-4dB Rod Antenna |
|---|---|---|---|
| Dimension: | 85mm*55mm*20mm | Weight: | 100g(exclude Antenna) |
| Operation: | -10~+50℃ | ||
| High Light: | Long Range UAV Data Link 100g,MIMO Long Range UAV Data Link,OFDM All In One Link |
||

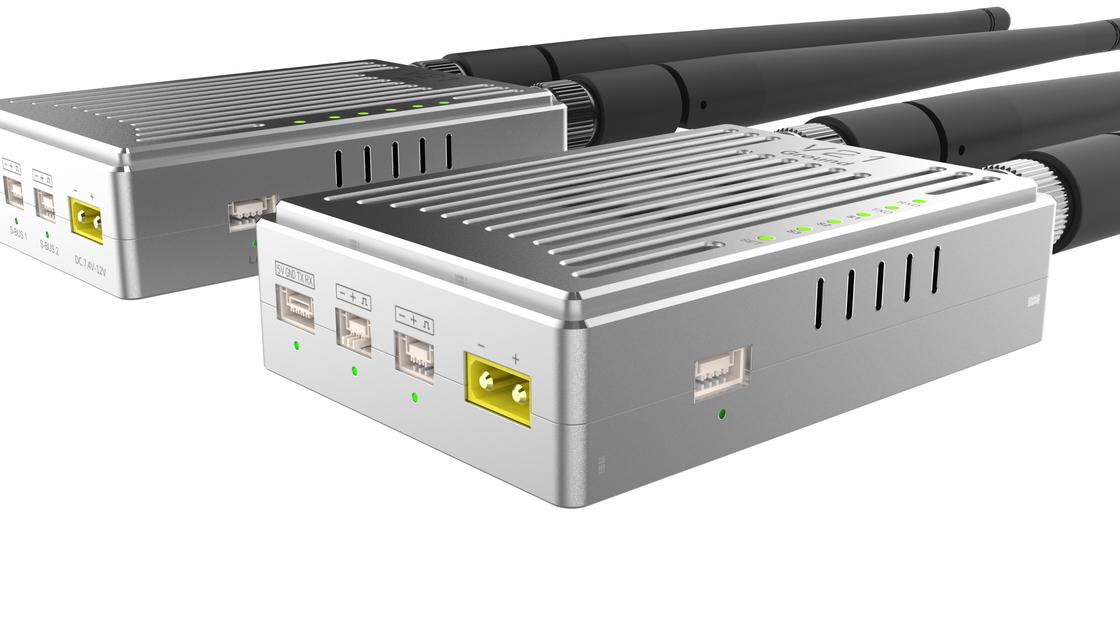

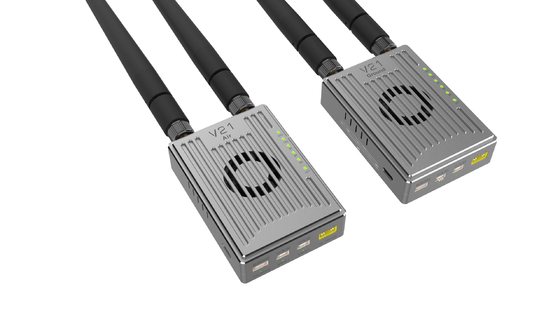

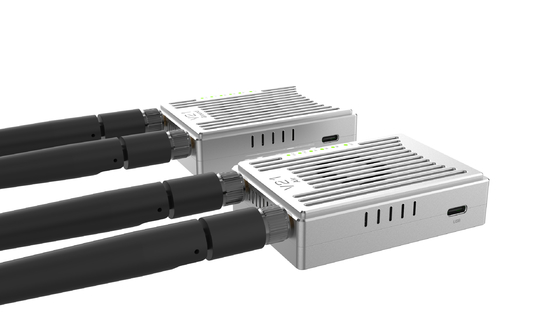

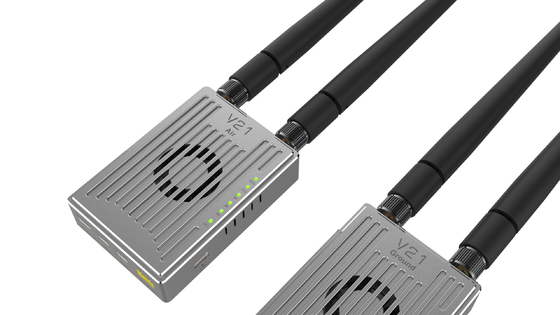

100g V21 video and data and RC link
V21 is an all in one link,adopting OFDM and MIMO techonology.It can transmit 1 channel serial port data,1 channel LAN port data and 2*SBUS control signal.
RF modules of 800M,1.4G,2.4G freuqency bands are integrated into one product, the frequency can be modified in the software.Transparent transmission.With web configuration.V21 is of easy operation.
Product features
Transparent network transmission,able to transmit images,compatible with all network protocols;
Transparent data transmission ,support TTL/RS232 level;
Double SBUS input and output,remote extended range is extended;
Support H264265 input video encoding format
Bandwidth:300MHz max
The transmission latency from the node to the center node ≤60ms
Support 800MHz,1.4GHz and 2.4GHz frequency band
Security:access authentication module,to prevent illegal access
Support use defined encryption
By spectrum scanning avoid interference
Support in frequency hopping to reduce interference
Parameters
| V21 video&data&RC link | ||
| Frequency | 800MHZ 1.4GHZ 2.4GHZ | 806-826MHZ 1427.9-1447.9MHZ 2401.5-2481.5MHZ |
| Power | -40-25dbm | adjustable |
| Transmission range | 17km | depend on environment |
| S-BUS port | S-BUS*2 | NA |
| serial port | 1 port | full duplex,baud rate adjustable |
| latency | ＜300ms | Transmission from Tx to Rx |
| Power supply voltage | 7.4-24V | NA |
| operation current | 180MA | 12V power supply |
| Bandwidth | 1.4-20M | 1.4M 3M 5M 10M 20M |
| Video input output | WAN LAN | connecting IPC device/ PC |
| power supply interface | XT30 | |
| Antenna | 2-4db rod antenna | |
| dimension | 85mm*55mm*20mm | |
| weight | 100g(exclude antenna) | |
| operational temperature | -10-50℃ | |
