Product Details:
|
| Overall Weight: | 5.98KG | Dimension: | 354mm*280mm*80mm |
|---|---|---|---|
| Material: | Aluminum Alloy Shell | Function: | Video Transmission,data Transmission,remote Control,video Display,and Computing |
| Battery Capacity: | 16.8V/13600mAh | ||
| High Light: | Dual Screen GCS Ground Control Station,Lightweight GCS Ground Control Station,Aluminum Shell ground control station |
||

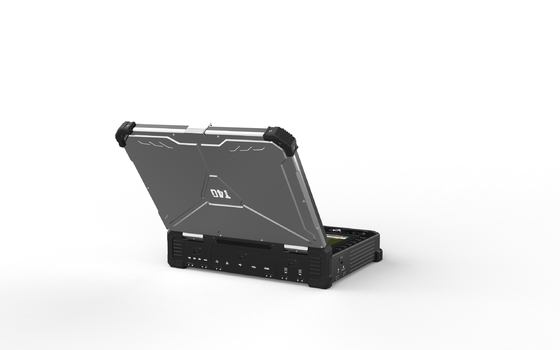

T40 ground control station is a portable and universal solution for controlling unmanned vehicles and payloads. With dual screens, it is a highly integrated system and has functions such as video transmission, data transmission, remote control, video display, and computing. With the aviation-grade aluminum alloy shell, the overall weight is only 5.98kg.
The remote control system has 4 joysticks for use, it also supports traditional RC access for remote control. HID USB and programmable switches that can be set in the software. Various external input and output ports make integrating with the 3rd party data link convenient. It is especially suitable for UAV, UGV, USV, etc.
Product features
With aeronautical aluminum alloy housing, the overall weight is only 5.98kg

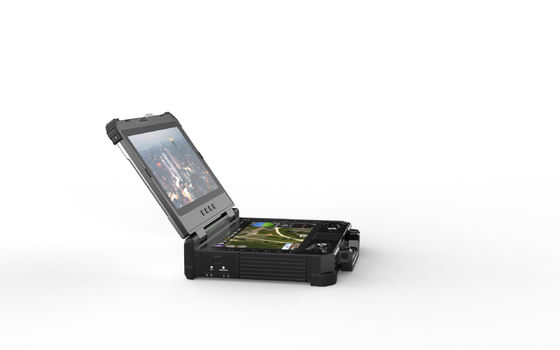

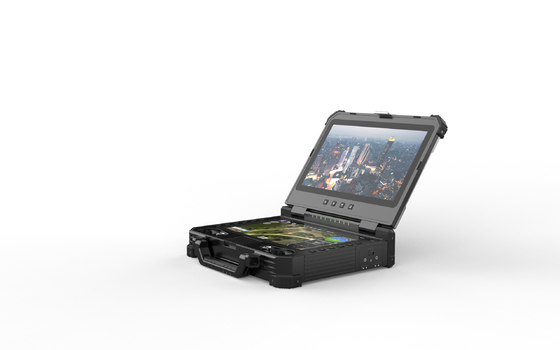

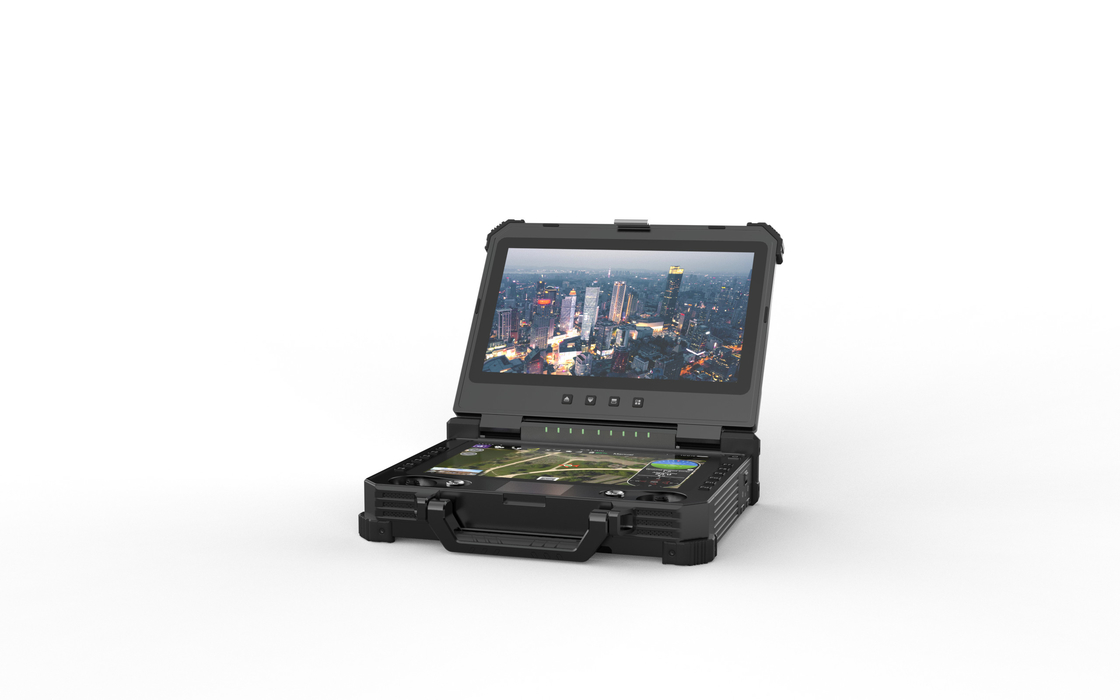

Dual high definition, high brightness LCD screens which image display on the top and GCA interface on the bottom.
Programmable channels,supporting traditional RC acess.The control system provides multiple programming modes,able to map to each channel of 2SBUS.
Ground breaking technology:add HID USB and programmable switches that can be set in the software.
Supporting all the data link in the market.
Support external HDMI port video input
PC+data link+multi function+remote control
Support external power supply
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
