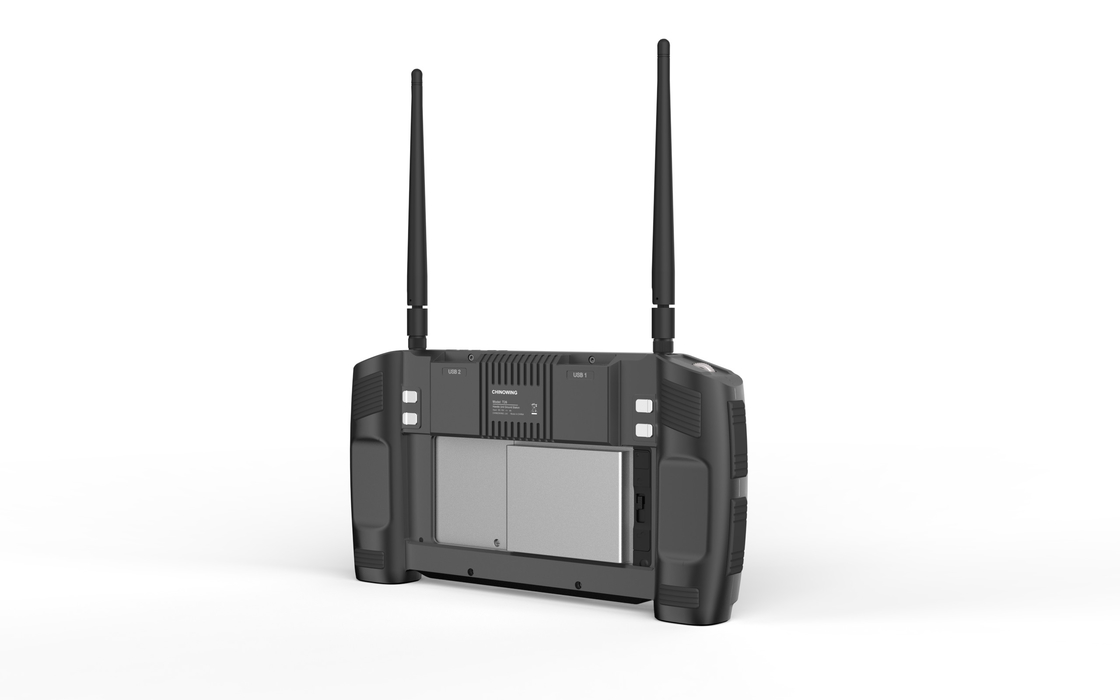

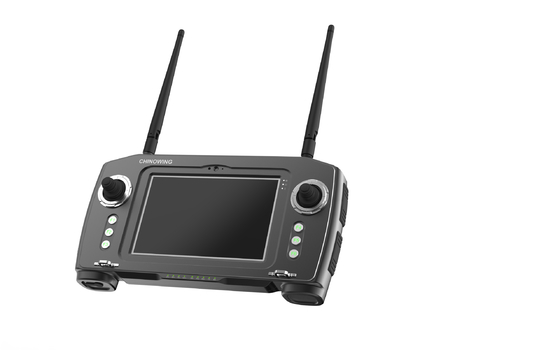

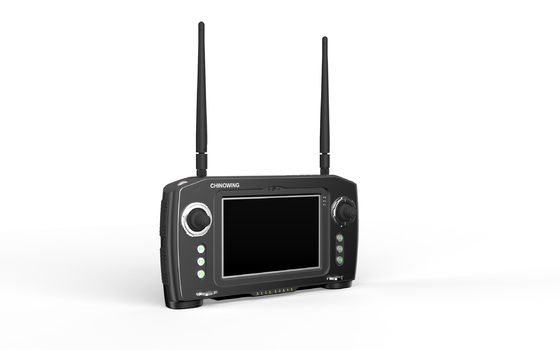

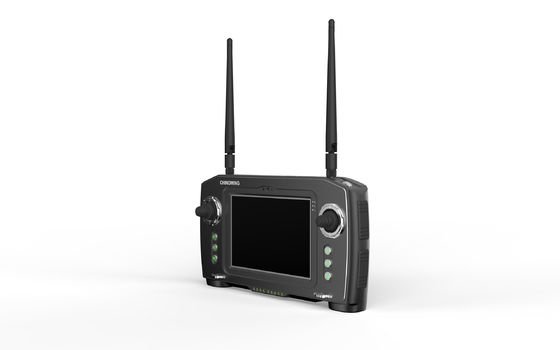

T26 military-grade portable ground control station

T26 is a military-grade portable command and control platform built on Panasonic FZ-M1 and video, data and RC link. It can be used for mission planning, attitude control, load control, remote monitoring, real-time display and data display, etc. Besides sunlight-readable display, multi-touch capability and lightweight, T26 has 16 channels, Windows 10 operating system and powerful hardware, which enables scalability.

Its rugged, water- and dust-proof design makes it well suited to harsh environments.

Performance upgrade

• Built on Panasonic FZ-M1, IP65 grading

• Aviation grade aluminum shell, the overall weight only 1.5kg

• Touch screens, high definition, high brightness, sunlight-readable

• Video & telemetry & RC& computer in one, 3 frequency modules in one

• USB HID function

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220mAh+6800mAh
• Remote control about 9hs
• The web browsing 12hs

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• Overall weight is only 1.5 kg
• Around with soft rubber, skid resistance, anti-knock

Parameters

Overall

Overall weight: 1.5kg

Dimension: 30cm*15.8cm*4cm

Operation temperature: -20℃-+60℃

Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance: 9hs

IP rating: IP65

Communication system: V21(10km grade)

Antennas: 2-4dB ZYJB antenna

Computer

Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system: Win10

CPU: Intel i5 7Y57

Memory: 8G

Storage: 256GB SSD

Network: WIFI/Bluetooth/4G

Remote control system

Physical channel: 16

Joysticks: 2

Pull wheel: 2

buttons: F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency: 40ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

External interface: USB3.0*2
