Product Details:
|
| Dimension: | 300mm*160mm*40mm | Weight: | 1.2kg |
|---|---|---|---|
| System: | Win10 | Frequency: | 902-928MHZ |
| Channel: | 16 Channel*2 | Duration: | 3H With Full Capacity |
| High Light: | Win10 handheld ground control station,3H handheld ground control station,aluminum alloy Portable Ground Control Station |
||

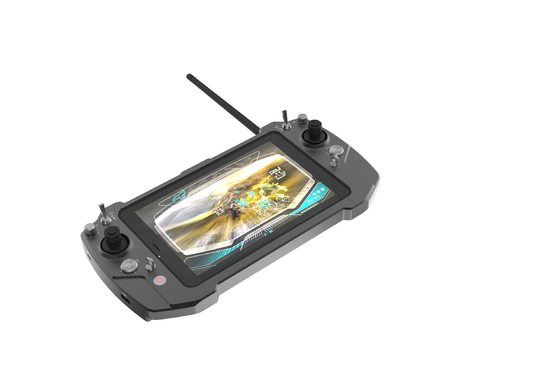

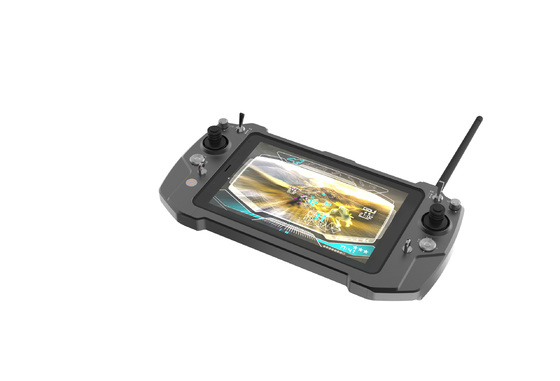

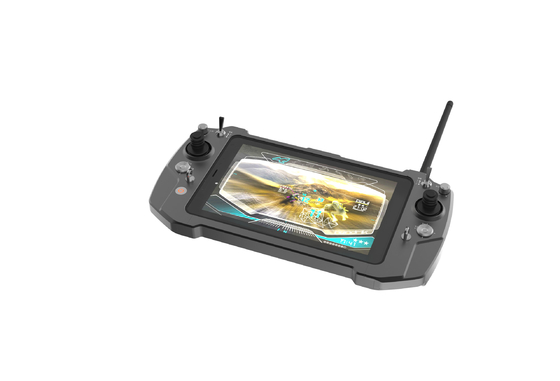

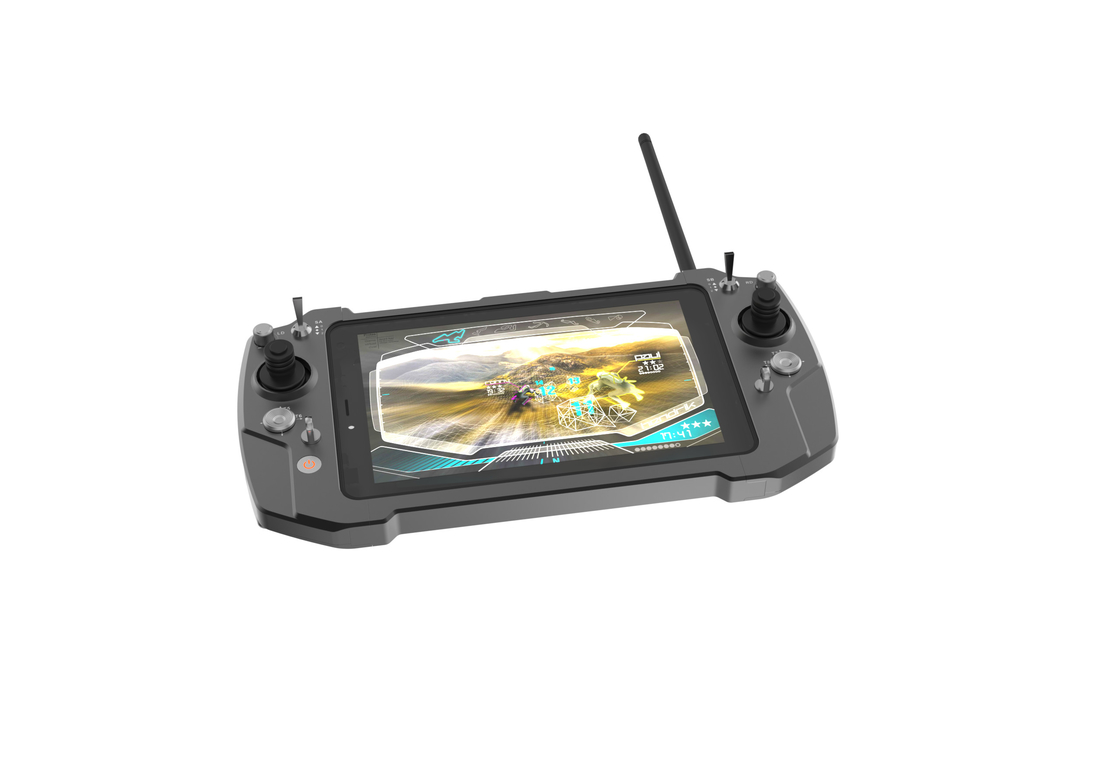

T21 Budget-Friendly Portable Ground Control Station With Long Range Telemetry Transmission And Remote Control
With an independent dual SBUS design, T21 is a portable industrial-grade ground control station. T21 can perform tasks such as mission planning, attitude control, payload control, navigation and position control, and remote monitoring.
The safety and stability of the flight is ensured by industrial-grade computers and military-grade data links. It is easy to operate and transport.
Product Features
16 physical channels
IP rating industrial computer
Dual auxiliary joysticks
Dual SBUS output
Each channel programmable
Remote control latency: 30ms
8inch 10-finger capacitive touch screen
Aviation grade aluminum alloy material, lightweight only 1kg
Remote controller T21
Overall weight: 1000g
Dimension: 300mm*160mm*40mm
Operation temperature: -10~+50℃
IP rating: IP53
RF power: 0.1-1w(adjustable)
Remote control latency: 30ms
Antenna: 2dB rod antenna
Package dimension: 370mm*285mm*105mm
Channel: 16 programmable Channels
Main Joystick: 2 ((left and right-handed mode/ back to center mode/Hall effect)
Auxiliary joystick: 2
3-position switch: 4
Knob: 2
Key button: 2
Interface
SBUS port: Dual SBUS ports with HID input
External interface: USB2.0
Charging port: TYPC 5V
Computer
Display Screen: 8inch/1280*720
Brightness: 350CCD
CPU: Intel Cherry Trail Z8350
Memory: 4G
Hard disk: 64G
Network: WIFI/Bluetooth/4G
Operating system: Win10(standard)
Touch panel: 10 points capacitive touch screen
Battery: 3.7V/7500mAh
Endurance: 4h
Loudspeaker: Built-in
Airborne unit
R20 telemetry&RC link
Frequency: 900MHz(902-920MHz) Mircohard P900 module
Transmission range: 5km-50km(Depend on the environment)
Power voltage: 7.4v-12v
Operation current: 100mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2dB rod antenna
Weight: 43g(exclude antennas)
Dimension: 53mm*40mm*14mm
Interface: Serial port*1
SBUS port: 2
Power input interface: XT30
