Product Details:
|
| Dimension: | 290mm*150mm*60mm | Weight: | 1060g |
|---|---|---|---|
| Remote Control Range: | 5-17km | System: | Win10/Android |
| Channel: | 22 Physical Channel | Frequency: | 806~826MHz 1427.9~1447. 9MHz 2401.5~2481.5MHz |
| High Light: | Win10 GCS Ground Control Station,Android GCS Ground Control Station,Programmable portable ground control station |
||

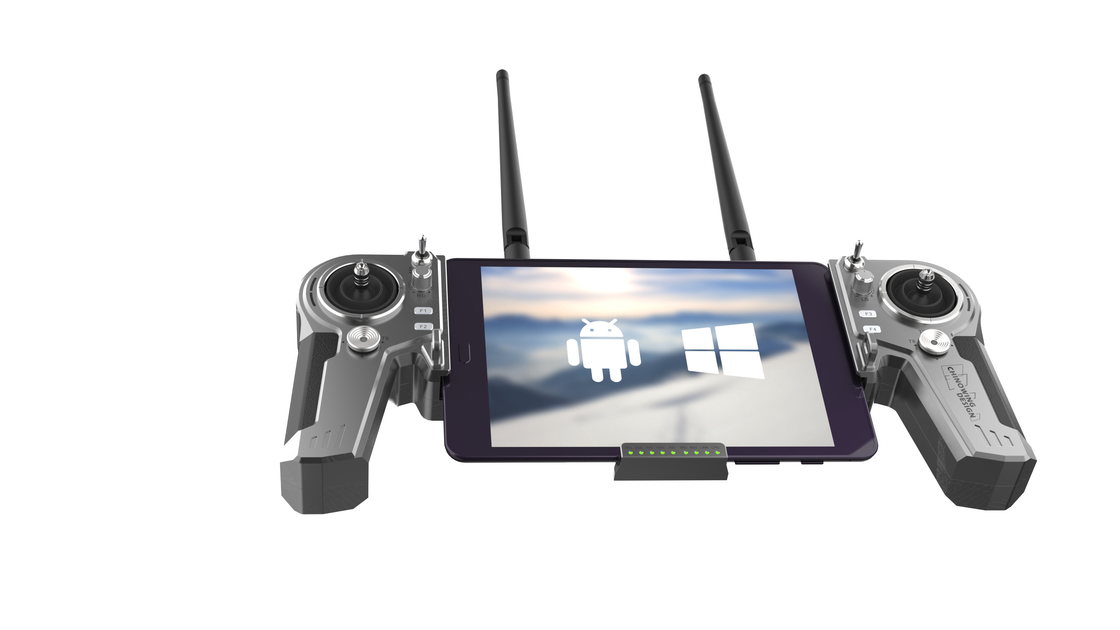

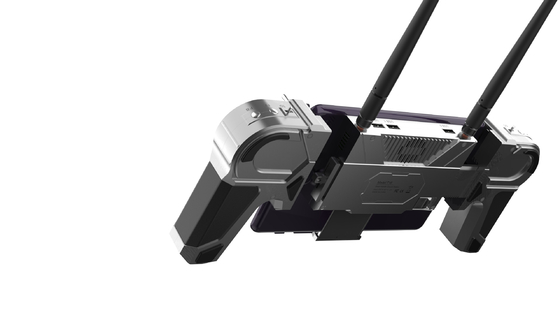

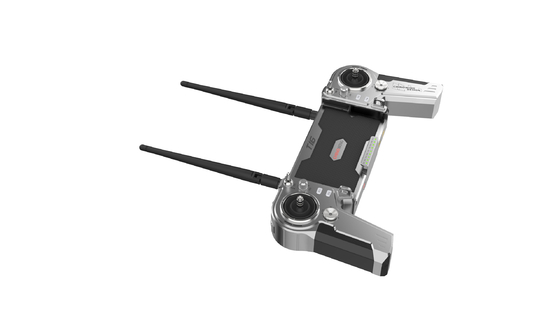

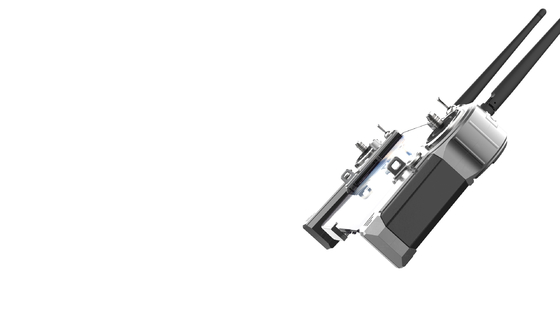

T16 gcs flight controllers
An ideal device for individual drone operation, the T16 provides safe and easy operation of drones and their payloads. With its extensible design, it supports tablets and smartphones up to 10.1 inches.
T16 supports Windows and Android systems, allowing the pilot to control the aircraft, the payload, and monitor real-time flight status and remote control status on tablets and mobile phones. Easy to operate and transport.
Product Features
Remote controller T16
Overall weight: 1060g
Dimension: 290mm*150mm*60mm
Operation temperature: -10~+60℃
IP rating: IP53
RF power: 0.1-0.5w
Remote control latency: 30ms
Ground unit of video link: Built-in
Power supply: 8.4V/6800mAh built-in battery, external battery supported
Endurance: 8h@full battery capacity
Mobile device: Support 5-10.1inch tablet or phone
Operation system: Windows/Android
Remote control range: 10km grade@LOS condition
Channel: 22
Main joystick: 2 (left and right handed mode/back center mode/Hall effect)
Auxiliary joystick: 2
3-position switch: 4
Knob : 2
Key button: 8
Pull wheel: 2
Interface: SBUS port /Dual SBUS ports with HID input
External interface: USB3.0
V21(10Km grade video&data& link)
Frequency: 800MHz(806-826MHz)
1.4GHz(1427.9-1447.9MHz)
2.4GHz(2401.5-2481.5MHz) 3 frequency modules integrated in one, frequency can be modified in the software.
Power voltage: 7.4v-12v XT30
Bandwidth: 3M/5M/10M/20M
Operation current: 300mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2-4dB rod antenna
Weight: 110g(exclude antennas)
Dimension: 85mm*55mm*20mm
Video input interface: LAN
Serial port: TTL or RS232
SBUS port: 2pcs
