Product Details:
|
| Dimension: | 190mm*180mm*60mm | Weight: | 480g |
|---|---|---|---|
| Frequency: | New FHSS Frequency Hopping | Transmission Distance: | 1-3KM |
| Voltage: | 7V-12V | Current: | 100mA |
| High Light: | 2.4GHz Ground Control Station,FHSS Ground Control Station,Remote Control GCS Ground Control Station |
||

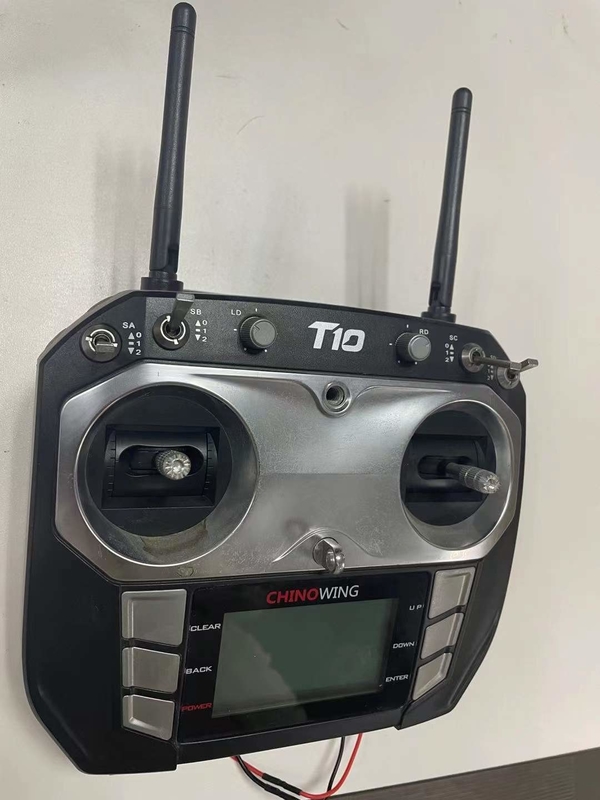

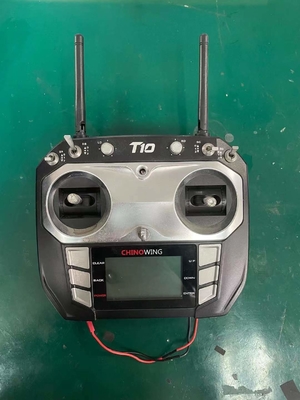

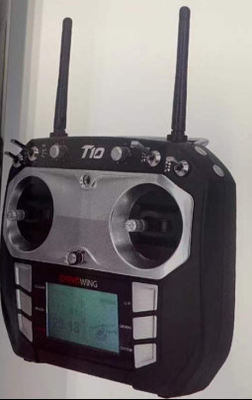

T10 modle remote controller for aircraft
Using technology, 2.4G FHSS allows T10 to transmit remote control signals more accurately, ensuring anti-interference between multiple devices in the same area. New antenna with improved signal strength for remote control. Two way transmission system, real-time control of flight conditions. While improving the security of remote control, enhancing the ascension experience.Channel 10 includes four gear shifter levers, two knobs, four shortcut keys, a convenient power supply which can use 4 5 batteries or lithium batteries, a quick conversion plug, and the ability to counterattack. There is no redundant design, so you can fly safely at the same time.
| T10 GCS | |||
| Channel | 14 physical channels | PWM | 8 way |
| 2.4GHz(interactive) | SBUS | Compatible with Futaba SUS protocol | |
| Frequency | New FHSS frequency hopping | fail-safe | support |
| Storage | 20 groups of models | voltage | 7V-12V |
| Programming | Mixed control of multi-group programming | Size | 190mm*180mm*60mm |
| Language | English | weight | 480g |
| dpi | full channel 4096 dpi | ||
| application | Helicopter fixed-wing multi-rotor vehicle and ship | ||
| transmission distance | 1-3km | ||
| R10接收机 Match the R10 use | R20 The R20 receiver for common reseiver,can be used with Chinowing products.Use the high maturity of military level digital module ,tie-in integration link design,time -sharing multiplexing improve channel utilization,can transmit a reuters data at the same time,two way S-BUS control data.Products small size,light weight low power consumption and strong anti-jamming capability | ||
| size | 46.5mm*27.0mm*14.0mm | Frequency of communication | 840MHz/900MHz |
| Application | Helicopter fixed-wing multi-rotor vehicle and ship | Power supply voltage | 7.4V-24V |
| sensitivtity | -105dBm | Operation current | 300A(12V) |
| Modulation method | GFSK | Serial port | TTL*1+SBUS*2 |
| System model | Automatic frequency hopping number system | SBUS | SBUS*1 |
| Data resolution | 1024级 | Power | 100mW-1W |
| Antenna | 3dB rod Antenna | ||
| Port baud rate | 115200(adjustable) | ||
| The air rate | 100K(adjustable) | ||
| Size | 53mm*40mm*14mm | ||
| weight | 43g | ||
| operational environment | -10~60℃ | ||
