Product Details:
|
| Dimension: | 53mm*40mm*14mm | Weight: | 43g |
|---|---|---|---|
| Frequency: | 902-928MHZ | Power: | 0.1~1W(adjustable) |
| Transmission Range: | 5-60km (depend On The Environment) | Ground Unit(Transmitter): | SBUS Port*1 USB Port*1 |
| Airborne Unit(Receiver): | SBUS Port*1 Serial Port*1 (Serial Port Is Full Duplex Serial Port,TTL Signal) | ||
| High Light: | RS232 RS485 long range data link,long range data link compact size,900MHz wireless video transmission device |
||

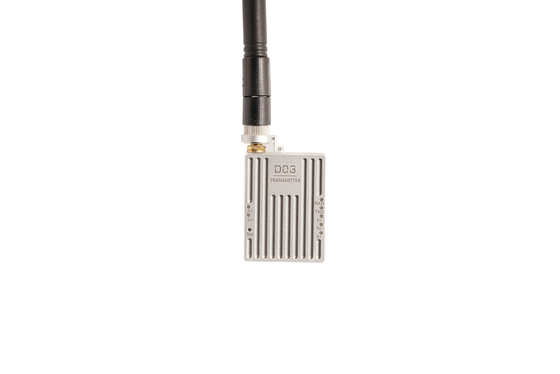

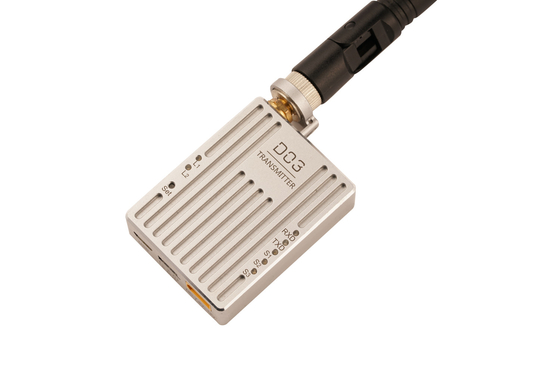

Data link transmission device D03 can simultaneously transmit remote control signals and data signals.
It is possible to enhance the remote control signal at the ground end and send it along with the data signal to the airborne end.
Specifically, it solves the problem of short distance and low transmission quality for remote control signals and data transmissions.
This device operates in the 900MHz frequency band, and the transmission range is 30km, with a maximum of 60km. It comes in a compact size, with high integration capabilities, and is highly sensitive.
Product features
Long remote control range
Ultra low power consumption
Real test range 50km(0 packet loss)
Strong anti-interference capability
The output is optional TTL,RS232 and RS485 serial port
| D03 Data&RC link | |||
| Frequency | 902-928MHz | weight | 43g |
| Power | 0.1-1W(adjustable) | Transmission range | 5-60km(Depend on the environment) |
| Baud rate | 9600-230400bps(adjustable) | Dimension | 53mm*40mm*14mm |
| Operation current | 500mA(12V power input) | Ground unit(transmitter) | SBUS port*1;USB port*1 |
| power input | DC:7.4-24V | Airborne unit(receiver) | SBUS port*1;serial port*1 (Serial port is full duplex seiral port,TTL signal) |
| Operational environment | -10~60℃ humidity 5-95%,RH | ||
