Product Details:
|
| Frequency: | 800MHz:806-826MHz 1.4GHz:1427.9-1447.9MHz 2.4GHz:2401.5-2481.5MHz | Power: | 300mW-2W（adjustable） |
|---|---|---|---|
| Transmission Range: | 10km Grade/30km Grade | S-BUS Port: | S-BUS*2 Port |
| Serial Port: | TTL*1 RS232*1 RS485*1 | Bandwidth: | 3M 5M 10M 20M |
| Power Supply Port: | XT30 | Interface Type: | GH1.25 |
| Battery Capacity: | 6800mAh | Antenna: | 2-4dB Rod Antenna |
| High Light: | HDMI AV LAN Video Data Link,6800mAh video data link,Dual SBUS digital data link |
||

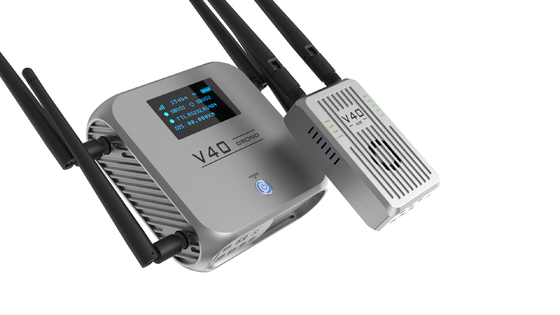

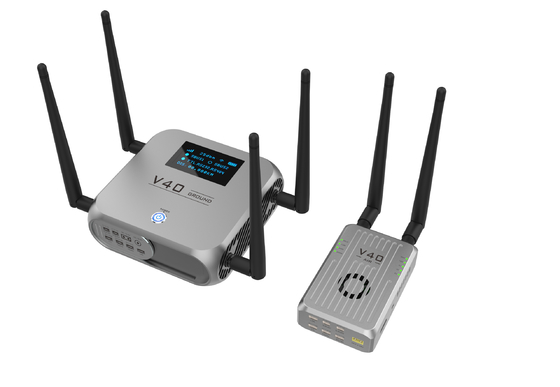

V40 ,multi-function digital link system integrates a variety of video and data ports,including HDMI,AV,LAN video input interfaces,3 serial prots(TTL&RS232&RS485),2SBUS ports. As for the communication mode,V40 supports point to point,point to multi-point communication,the center node can communicate with any node,which greatly expands the application scenarios.Ground unit has built-in wifi module and LED dispaly for understanding the working condition of the device in real time.
Features
Multi-function
Dual SBUS ports
3 serial ports,TTL&RS232&RS485
Multiple HD video,HDMI/AV/SDI
WiFi wireless transmission

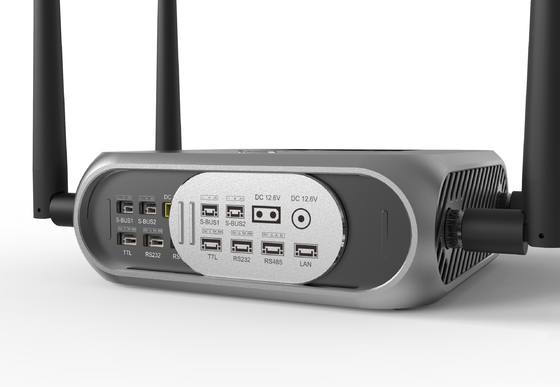

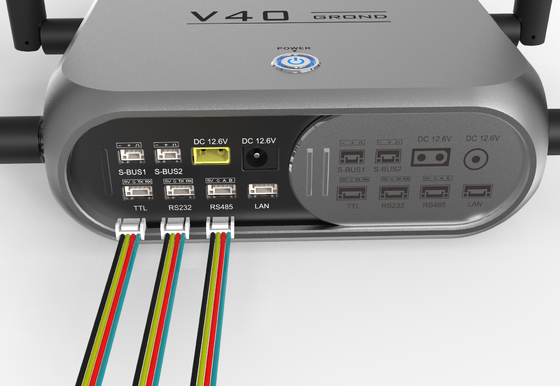

3 serial ports
3 independent serial ports,support working simultaneously
Level signal interfaces are TTL,RS232 and RS485
(Support for TCP,UDP,Httpd Client,TCP Auto,WEB to Serial working mode,etc)
Built-in battery
Built-in battery capacity of 6800mAh
Endurance:10h

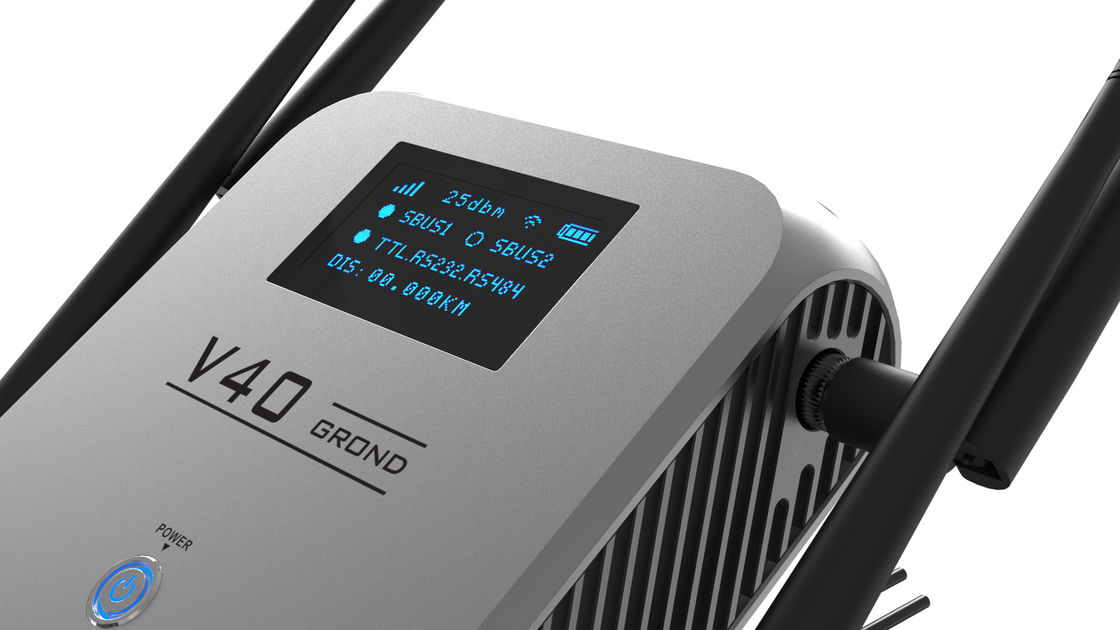

LED display
Visually read the working state of the device
Built-in WIFI module
Hundreds of meters transmission range,the latency of video relay transmission ＜40ms；
Supporting data rate at 300Mbps Max；
Able to wirelessly connect any interface of the airborne unit
Support video input by HDMI and LAN at the same time
Support double SUBS
Able to control drones and payload simultaneously

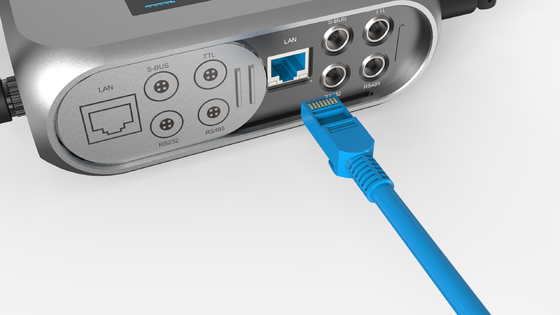

Support dual LAN port
Support 2 LAN ports can work simultaneously
Parameters
Overall
Frequency:
800MHz: 806-826MHz
1.4GHz: 1427.9-1447.9MHz
2.4GHz: 2401.5-2481.5MHz)
Transmission range: 10km grade
Bandwidth: 3M/5M/10M/20M(adjustable)
Video latency : <=300ms
Airborne unit
RF power: 300mW-2W
Power supply port: XT30
Power supply voltage: 12-24v
Operation current: 470mA@12V power supply
Operation temperature: -35℃~+60℃

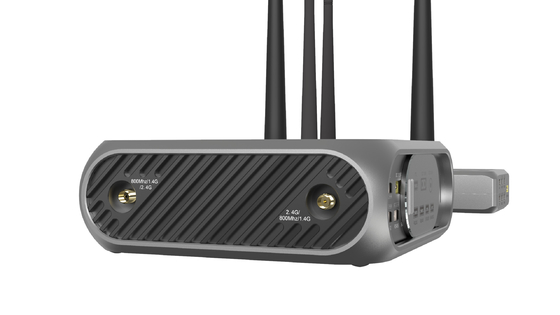

Antenna: 2-4dB rod antenna
SBUS port : 2*S-BUS port
Serial port: TTL*1 & RS232*1 & RS485*1
Video input: LAN*1, HDMI*1, CVBS*1
Dimension: 117mm(L)*70mm(W)*30mm(H)
Weight: 236g(exclude antennas)

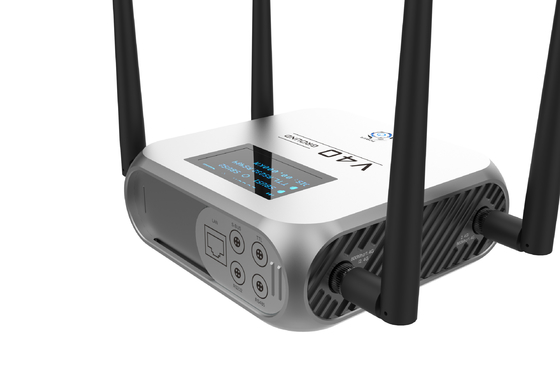

Ground unit
RF power: 300mW-2W(adjustable)
Power supply interface: XT30 12V
Charging port: DC12.6V(Aviation plug/GH1.25)
Built-in battery Capacity: 6800mAh
Endurance: 10h with full capacity
WIFI data rate: 144Mbps-300Mbps
Antenna: 2-4dB rod antenna&8-9dB fiberglass antenna
SBUS port : 2*S-BUS port INTPUT
Serial port: TTL*1 & RS232*1 & RS485*1
Video output: LAN*2
Dimension: 139mm(L)*139mm(W)*48mm(H)
Weight: 1045g(exclude antennas)
