Product Details:
|
| Channel: | 16 Physical Channel | Remote Control Range: | +V21:10km |
|---|---|---|---|
| Frequency: | +V21:800MHz/1.4GHz/2.4GHz | RF Power: | +V21:0.1W-1W（adjustable） |
| Remote Control Latency: | 40ms | Duration: | 9H With Full Capacity |
| Integrated Computer: | Panasonic FZ-M1 | CPU: | Intel I5 7Y57 |
| ROM: | 4G | Storage: | 256GB SSD |
| System: | Windows10 | Dimension: | 300mm*158mm*40mm |
| IP Rating: | IP56 | Network: | WIFI/Bluetooth/4G |
| External Interface: | USB3.0*2 | Operating Temperature: | -20~+60℃ |
| High Light: | T26 Ground Control Station Gcs,HandHeld Ground Control Station Gcs,T26 portable gcs |
||

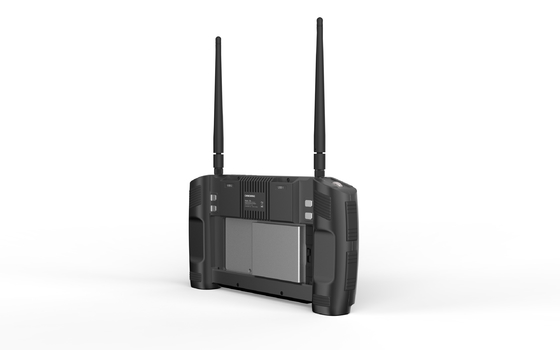

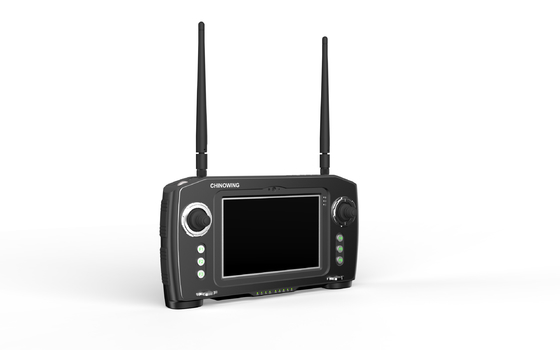

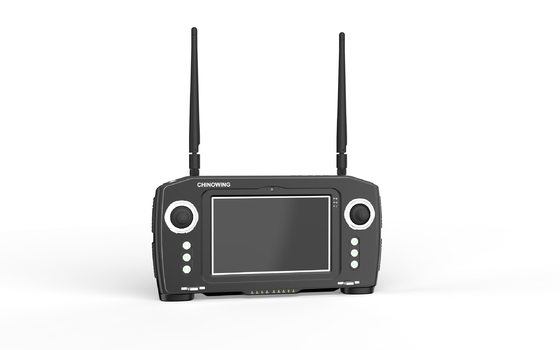

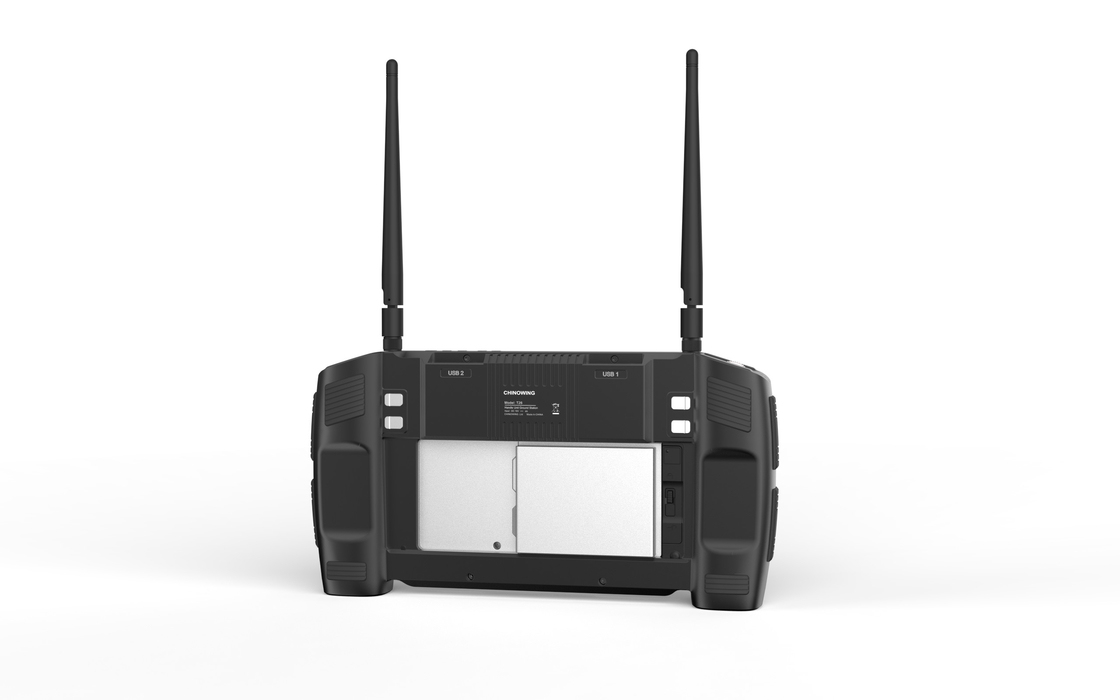

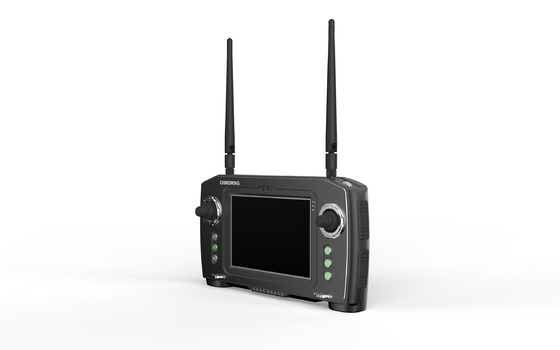

T26 is a military-grade portable command and control platform in high integration of Panasonic FZ-M1 and video&data&RC link. It provides functions such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc. To ensure high-performance and convenient operation, features of T26 include sunlight-readable, multi-touch display, lightweight,16 channels, window 10 operating system, and strong hardware enabling scalability.
The rugged, water and dust-proof design, is especially suitable for operation in a harsh environment.
Performance upgrade
Aviation grade aluminum shell, the overall weight only 1.5kg
Touch screens, high definition, high brightness, sunlight-readable
Video & telemetry & RC& computer in one, 3 frequency modules in one
USB HID function
Perfect remote control experience
Long battery working time
Modeling design
Parameters
Overall
Overall weight: 1.5kg
Dimension: 30cm*15.8cm*4cm
Operation temperature: -20℃-+60℃
Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)
Endurance: 9hs
IP rating: IP65
Communication system: V21(10km grade)
Antennas: 2-4dB ZYJB antenna
Computer
Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)
Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800
Operating system: Win10
CPU: Intel i5 7Y57
Memory: 8G
Storage: 256GB SSD
Network: WIFI/Bluetooth/4G
Remote control system
Physical channel: 16
Joysticks: 2
Pull wheel: 2
buttons: F1-F10
(Each channel programmable, the user can self-define each joystick, switch, button, etc)
Remote control latency: 40ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
External interface: USB3.0*2
