Product Details:
|
| SBUS: | Dual SBUS Independent Output,HID Input | Video System: | Built-in |
|---|---|---|---|
| Channel: | 27 Physical Channels | Remote Control Latency: | 30ms |
| Antenna: | 4dB Rod Antenna/10dB Fibre-glass Epoxy Antenna(other Antenna Also Can Be Connected Externally) | Sub-channel: | Main Joysticks*2 3-position Switch*4 Knob*2 Key Button*11 Pull Wheel*2 |
| Remote Control Range: | 5km-20km | RF Power: | V20/V21/V30:0.1-1W（adjustable） |
| Frequency: | 800MHz/902-920MHz 1.4GHz/2.3GHz/2.4GHz/2.5GHz | Battery Capacity: | 16.8V/13600mAh（external Battery Also Supported） |
| Screen: | 13.3inch 1920*1080 1000CCD+ 12.1inch 1280*800 1500CCD+ | Touch Panel: | Capacitive 10-finger Multi-touch Display |
| CPU: | Intel I7 8565U/10500U | ROM: | 8GB |
| Storage: | 256GB | System: | Win7/Win10/Linux |
| Network: | WIFI/Bluetooth/4G | External Interface: | USB3.0,LAN,HDMI In,VGA Out,Hi-fi |
| Serial Port: | RS232*3 SBUS Out/in | ||
| High Light: | T40 Uav Ground Control Stations,T40 uav ground control system,T40 universal ground control station |
||

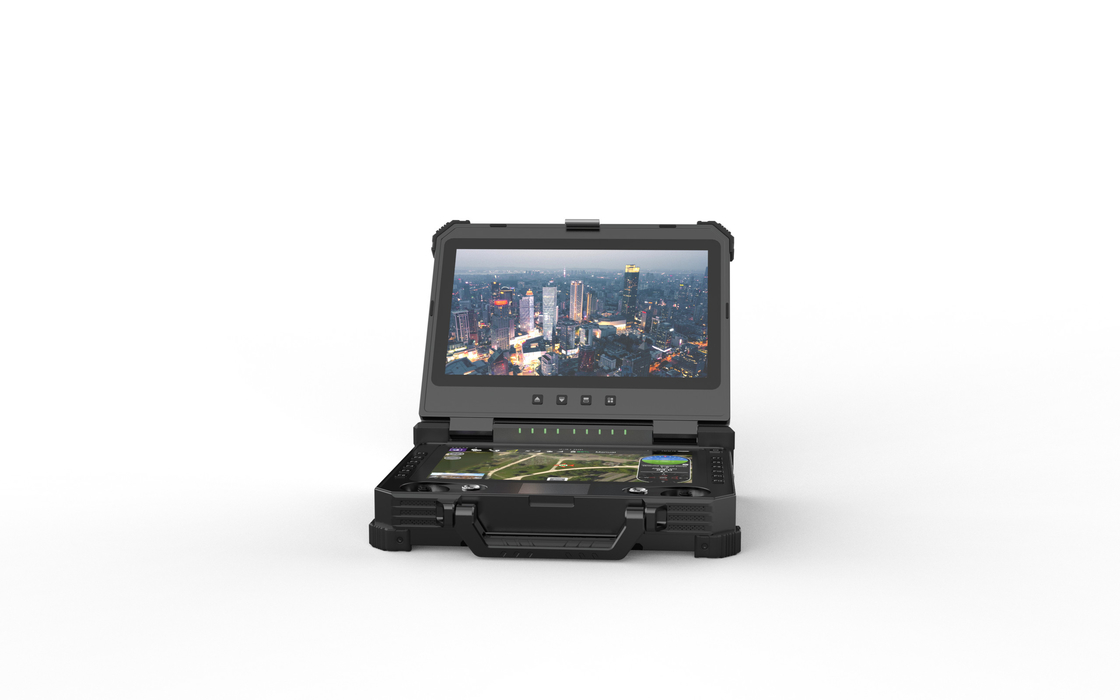

Highly integrated T40 UAV Control Station for Professional Industrial User in Defence, Commercial Applications

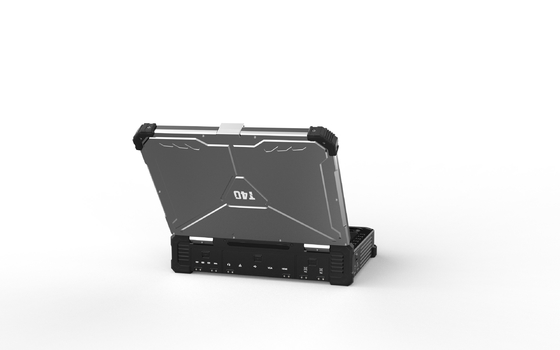

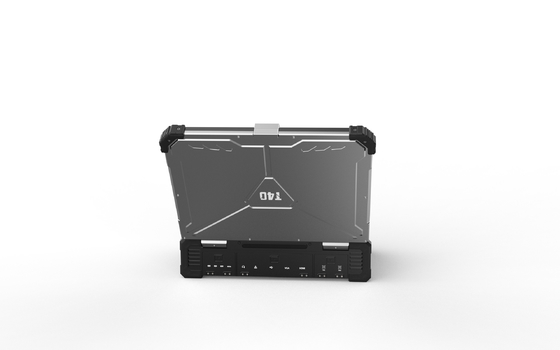

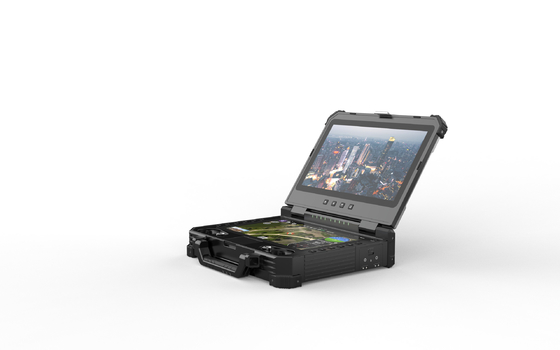

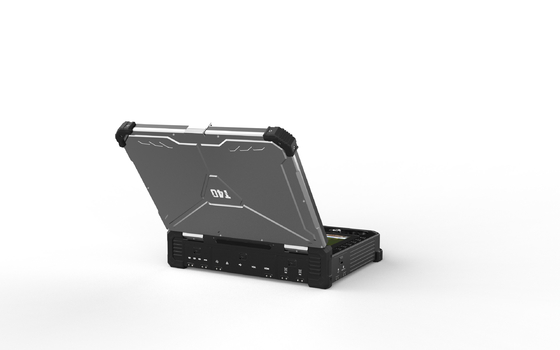

T40 GCS is a portable and universal solution for controlling unmanned vehicles and payloads. With dual screens, it is a highly integrated system and has functions such as video transmission, data transmission, remote control video display, and industrial-grade computer. With the aviation-grade aluminum alloy shell, the overall weight is only 5.98 kg.
The remote control system has 4 joysticks for use, it also supports traditional RC access for remote control. Add HID USB and programmable switches that can be set in the software. Various external input and output ports make it convenient to integrate with the 3rd party data link. It is especially suitable for UAV, UGV, USV, etc.
Features
Aviation grade aluminum shell, the overall weight is only 5.98kg.
Built on an Intel-based PC, real industrial-grade GCS
Video & telemetry & RC& computer in one
USB HID function, easier for the user to do the further development
Low latency remote control, 30ms
Windows and Linux OS for choice
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
