Product Details:
|
| Dimension: | 320mm*142mm*54mm | Weight: | 1.5kg |
|---|---|---|---|
| System: | Android7 | ROM: | 2GB/4GB DDR3 |
| CPU: | Dual-core Cortex-A72+Quad-core Cortex-A53 | Touch Screen: | Multi-touch Display |
| High Light: | 1.4GHz Video GCS Ground Control Station,Multi Touch GCS Ground Control Station,Android 7 Portable Ground Control Station |
||

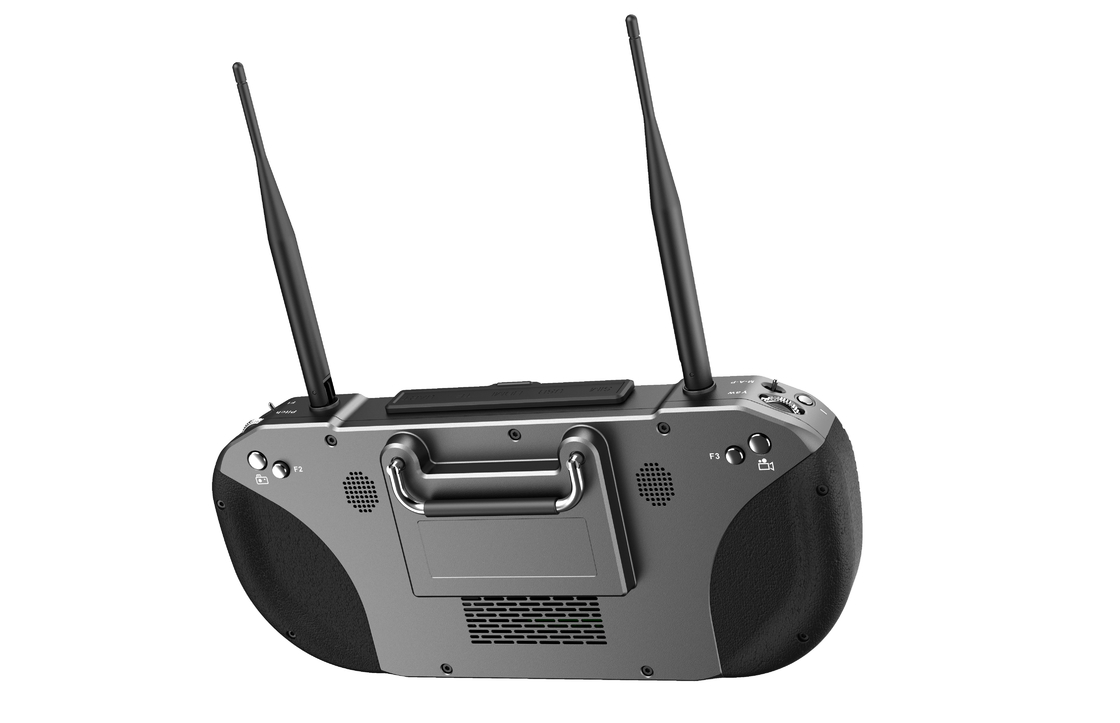

T18 All In One Android Handheld Ground Control Station Six Core High Speed Processor
An integrated body and moulding make up the T18 hand held all-in-one control. The grip position is made of rubber material, anti-slip and durable, with excellent hand feel.
Dedicated UART Serial port, which can be used for external devices such as RTKs, 4G modules, handgrips, etc. A video display stream in real time can be viewed, and all functions can be controlled remotely.
Product Features
- 1080p@24fps Private Ethernet Video Stream
- 15km Transmission Distance
- 2.4GHz Data/1.4GHz Video Working Frequency
- Integrate with Datalink,Radiolink and Videolink
- High Brightness Colorful LCD Touch Screen
- Parameter Adjustment on PC
- USB direct connection charging
- Dual Self-Centering Dial
- Customized VTOL Flying Mode
- 3h Battery life
- Support Fixedwings/Helicopters/multirotors
| T18 GCS | |||
| Channel | 14 physical channels | Screen | 7inch+1200nit |
| Frequency | 2.4GHz | Resolution | 1920*1200 |
| Remote control range | 3-8km | Touch screen | Capacitive 10-finger multi-touch display |
| Antenna | 3.5dBi@2.4GHZ | CPU | Dual-core Cortex-A72 +Quad-core Cortex-A53 |
| Battery capacity | 11.1V/8000mAh | ROM | 2GB/4GB DDR3 |
| Duration | 5H with full capacity | Storage | 32GB/64GB |
| Dimension | 320mm*142mm*54mm | IP rating | IP 67 |
| Weight | 1.5kg | external interface | USB HDMI MICRO SD MICRO SIM UART |
| System | Android 7.1 | Operational temperature | -20~60℃ |
| Charging interface | 15V/5A | ||
