Product Details:
|
| Overall Weight: | 2300g | Working Frequency: | 800MHz(806-826MH2)1.4GHz(1427.9-1487.9MHz) |
|---|---|---|---|
| Battary Capacity: | 10050mAh 8hs@full Battery Capacity | Data Port: | SBUS *2、LAN*1 |
| RF Power: | -40~37dBm | Antenna: | 2-4dBi Gooseneck Antenna |
| Video Latency: | <300ms |

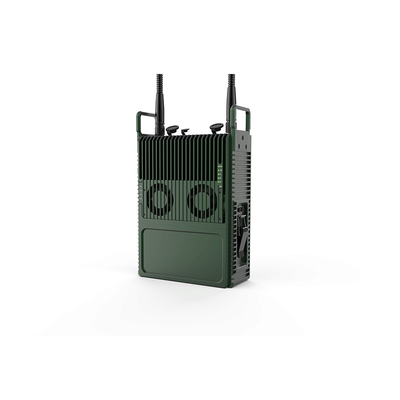

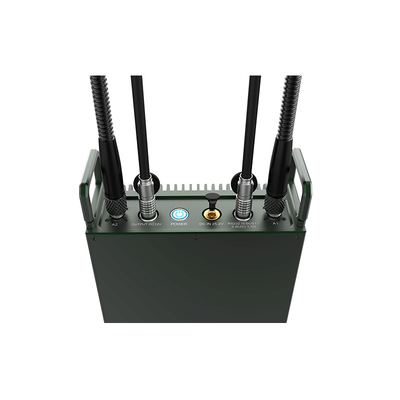

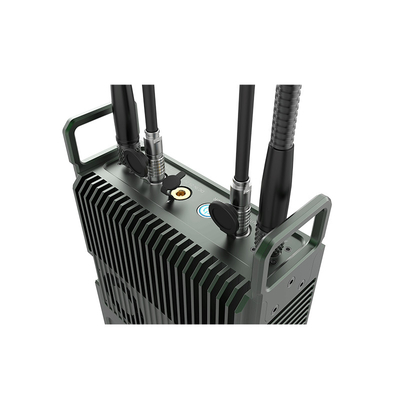

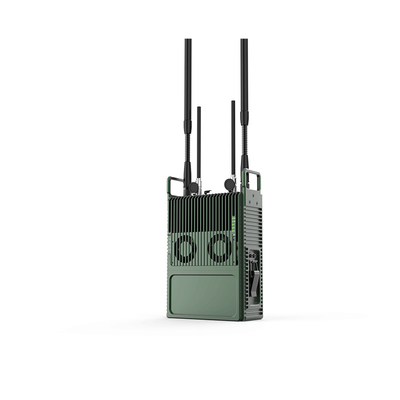

VB31 Manpack Radio- designed for individual mobility with 8-hour battery endurance,power supply for other devices available.Versatile interfaces (2 SBUS, 1 serial, 1 LAN),and seamless compatibility with our ground control stations and third-party devices. Stay connected on the go!
Product Features:
8H endurance,available to power supply other devices (DC12.6V)
Versatile ports:2 SBUS,1 serial port,1 LAN port
Portable backpack design for on-the-go operations
Product Parameters:
Overall weight:2300g(Exclude antennas)
Overall dimension:240mm*115mm*63mm
Working frequency:800MHz(806-826MH2)1.4GHz(1427.9-1487.9MHz)1.4G(standard)
Power supply voltage:DC12.6V[3-12s battery(output)]
Battary capacity:10050mAh(8hs@full battery capacity)
Serial port:TTL RS232(optional)
Data port:SBUS *2,LAN*1
RF power:-40~37dBm
Antenna:2-4dBi Gooseneck Antenna
Operating temperature -30~+50℃
video latency:<300ms
Transmission range:5 km(ground to groumd)
20km(air to ground) Depend on environment
30km(air to ground)
Bandwidth:1.4-20M 1.4M/3M/5M/10M/20M(settable)
Video input/output:1B10(Connecting lPC device/PC)
Power supply port:DC25.2V 8A
