4K video link for High-Speed Data Transmission with MESH Networking with two frequencies optional(600MHz、1.4GHz)

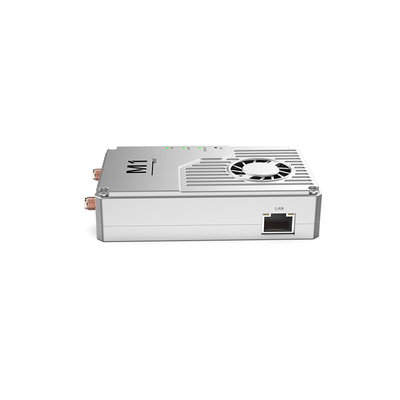

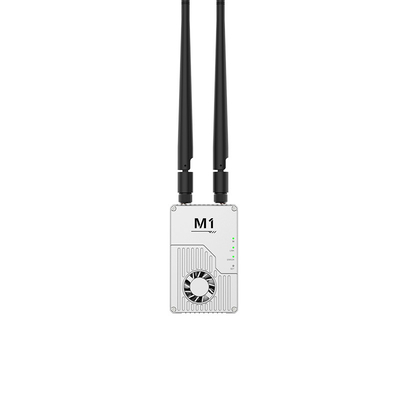

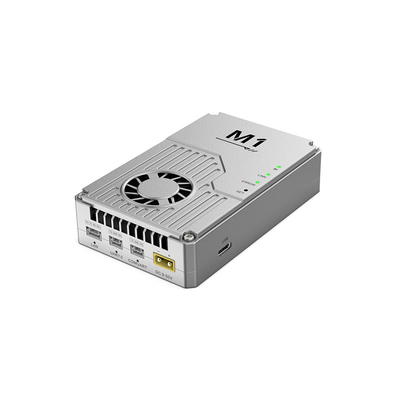

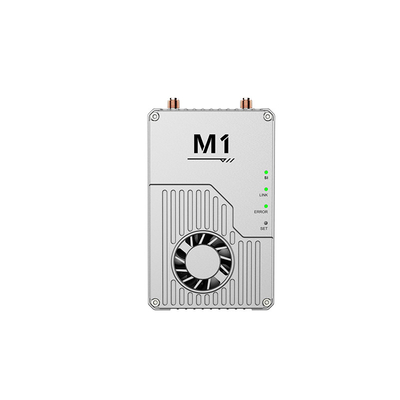

M1 is a broadband data transmission product supporting MESH networking.Built on the LTE wireless communication standard, it utilizes wireless digital data links with OFDM and MlMO technologies. The device features 10/100 Ethernet ports, serial gateway functionality, and achieves a stream rate of up to 100Mbps when CA mode is enabled. lt provides reliable wireless Ethernet bridging and gateway services for various devices. The M1 can simultaneously transmit telemetry and video, addressing challenges such as limited transmission distance for remote control and telemetry signals,as well as low-quality image transmission.Compact in size,high integration,and good sensitivity, M1 is available with frequency band options at 600MHz and 1.4GHz.

Product Features

Two Frequencies optional:600MHz,1.4GHz

LAN Interface:Compatible with all network protocols

Distance:Ground-to-Air 20km

RS232/TTL Optiona:Baud rate adjustable

Mesh Network:32 devices connections maximum



Product Parameters

Overall weight:155g Exclude antennas
Overall dimension:80mm*56mm*20mm
Working frequency:600MHz(566-678MHz)1.4GHz(1420-1530MMHz) 1.4G(standard)
Power supply voltage:DC9-50V 3-12S battery
Power supply current:300mA 12V power supply
Serial port:TTL/RS232(optional)
Data port:RJ45*1,LAN*1
RF power:-40~ 27dBM
Antenna:2-4dBi rod antenna 8-12dBi fiberglass antenna(optional)
Operating temperature:-30℃-+65℃
Video latency:<300ms
Transmission range:15-20km LOS/point to point
Bandwidth:1.4-20M
MIMO mode:2×2MIMO
Network mode:32 devices maximum
Power supply port:XT30
