Product Details:
|
| Data Port: | SBUS *2,LAN*1 | Antenna: | 2-4dBi Rod Antenna 8-12dBi Fiberglass Antenna(optional) |
|---|---|---|---|
| RF Power: | -40~37dBm | Power Supply Current: | 2-2.5A(24V Power Supply) |
| Overall Dimension: | 95mm*56mm*30mm | Power Supply Port: | XT30 |
| Operating Temperature: | -30℃-+50℃ | Working Frequency: | 800MHz(806-826MHz)1.4GHz(1427.9-1467.9MHz) 1.4G(standard) |
The V31pro D80 is equipped with 2-4dBi Rod Antenna and an optional 8-12dBi Fiberglass Antenna, which provides a reliable connection even in remote locations. Additionally, an optional TTL RS232 Serial Port is available for users looking to integrate the radio link with their drone's control system.
The power supply port of the V31pro D80 is an XT30, which is widely used in drone batteries, making it easy to power up the radio link. Moreover, the bandwidth of the radio link is settable from 1.4M to 20M, with options of 1.4M/3M/5M/10M/20M, which gives users flexibility in choosing the right bandwidth for their specific application.

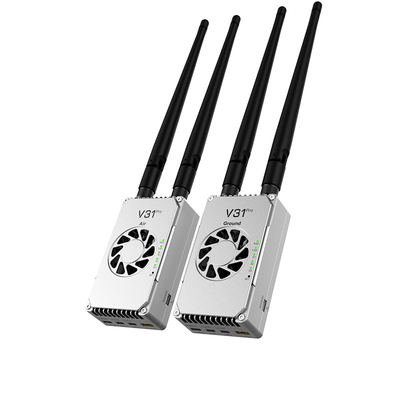

The V31pro D80 UAV Radio Link is a reliable and effective tool for long-range drone operations. With its stable transmission and high-definition image quality, you can be confident that you are getting the best view of your drone's surroundings. Whether you are using it for Agriculture UAV Drone, FPV Drone Accessories, or any other drone application, the V31pro D80 is a must-have accessory. Don't let drone radio jammers interfere with your drone's performance, get the V31pro D80 UAV Radio Link today and take your drone operations to the next level.
| RF Power | -40~37dBm |
| Power Supply Port | XT30 |
| Transmission Range | V31pro D80：80km Grade(air To Ground) LOS/point To Point |
| Video Input/output | LAN Connecting LPC Device/PC |
| Antenna | 2-4dBi Rod Antenna 8-12dBi Fiberglass Antenna(optional) |
| Video Latency | <300ms |
| Product Category | UAV Radio Link |
| Overall Dimension | 95mm*56mm*30mm |
| Overall Weight | 175g(Exclude Antennas) |
| Serial Port | TTL RS232(optional) |
This IP Mesh Radio is an essential component of Aerial Camera Drones and DVD Navigation Radio systems.
The UAV Radio Link product from CHINOWING, a leading brand from CHINA, is a versatile device that finds application in a range of scenarios, thanks to its multiple features and high-end capabilities. The product, with the model number V21, is priced affordably at USD$2008.32 per piece and can be ordered in quantities as low as 1, with a supply ability of up to 10000PCS within 2-8 working days from the date of order.
The product is designed to work in challenging environments, making it an ideal choice for applications such as drone wireless video transmitter, IP Mesh Radio, and Ford Focus 3 Radio. The device's bandwidth can be set between 1.4-20M with the option to choose from 1.4M/3M/5M/10M/20M settable bandwidths. It operates on a power supply voltage of DC12-50V 3-12S Battery, making it easy to power the device on the go.
The video latency of the UAV Radio Link product is less than 300ms, ensuring clear and real-time transmission of videos. The device comes equipped with 2-4dBi Rod Antenna and an optional 8-12dBi Fiberglass Antenna, enabling the user to choose the antenna type based on the application and the environment in which it's being used. The operating frequency of the product is 800MHz(806-826MHz)1.4GHz(1427.9-1467.9MHz) 1.4G(standard), ensuring stable and reliable connectivity.
The UAV Radio Link product is packaged in a durable plastic suitcase and a carton, ensuring that it remains safe during transportation. The payment terms for the product are T/T and can be availed by placing an order with CHINOWING.
The UAV Radio Link product technical support team provides assistance with setup, operation, and troubleshooting of the radio link system. Our services include:
Our team is dedicated to ensuring that our customers have the best experience with our product and are able to successfully use the radio link system for their UAV operations.
Product Packaging:
Shipping Information:
Q: What is the place of origin for the UAV Radio Link product?
A: The UAV Radio Link product is made in China.
Q: What is the brand name of the UAV Radio Link product?
A: The brand name of the UAV Radio Link product is CHINOWING.
Q: What is the minimum order quantity for the UAV Radio Link product?
A: The minimum order quantity for the UAV Radio Link product is 1.
Q: What is the delivery time for the UAV Radio Link product?
A: The delivery time for the UAV Radio Link product is 2-8 working days.
Q: What is the price of the UAV Radio Link product?
A: The price of the UAV Radio Link product is USD$2008.32.
Q: What are the payment terms for the UAV Radio Link product?
A: The payment terms for the UAV Radio Link product are T/T.
Q: What are the packaging details for the UAV Radio Link product?
A: The packaging details for the UAV Radio Link product are plastic suitcase+carton packing.
Q: What is the supply ability for the UAV Radio Link product?
A: The supply ability for the UAV Radio Link product is 1-10000pcs.
