Product Details:
|
| Dimension: | 355mm（L）*282mm（W）*80mm（H） | Weight: | 6400g |
|---|---|---|---|
| Display Screen: | 13.3inch 1920*1080 1000nit (top Screen) 12.1inch 1280*800 1500nit (bottom Screen) | CPU: | Intel I7 8565U(standard) |
| Touch Pad: | 10-finger Capacitive Touch Screen | Operating System: | Windows10/Linux |
| RAM: | 16G(standard) 32G(max) | SSD Storage: | 512GB(standard)1T Max |
| Network: | WIFI/Bluetooth(standard)4G(optional) | Interface: | RS232*4,USB3.0*2,LAN,HDMI In,VAG Out |
| Physical Channel: | Main Joystick*2(industrial Joysticks With Hall Sensors)、Auxiliary Rocker*4、Key Buttons*12、Simulate Keystrokes*7 | Human Interface: | USB HID |
| Remote Control Function: | Dual SBUS Independent Output、able To Control The Vehicle And The Payload Simultaneously | Remote Control Latency: | 40ms |
| SBUS Port: | SBUS OUT*2 | Battery Capacity: | 16.8V/20100mAh(external Power Source Also Supported) |
| Endurance: | 3.5hs@full Battery Capacity | Charging Port: | DC16.8V The Vehicle And The Payload Simultaneously |
| The 3rd Party Communication Link: | Supportive | Communication Link(V31): | 150km And Up |

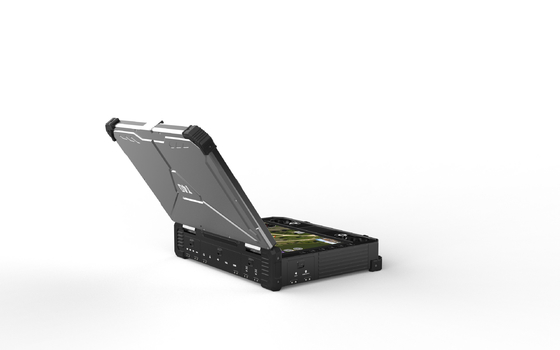

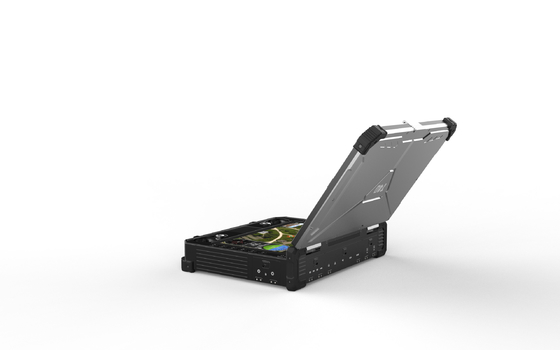

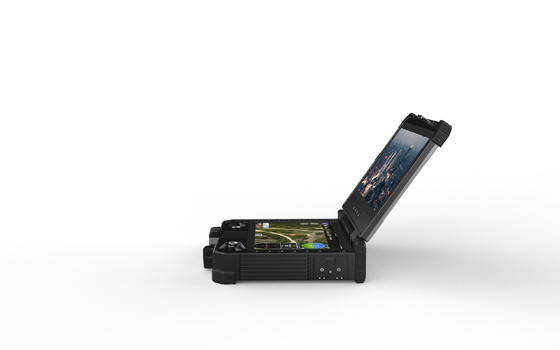

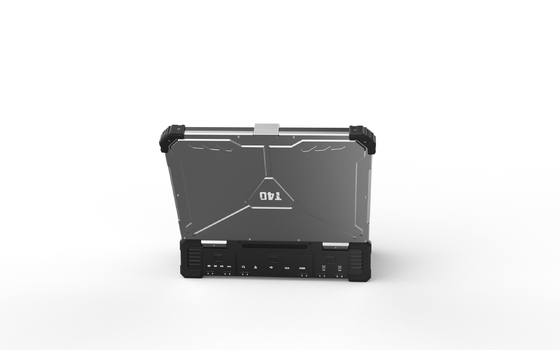

The T40 GCS boasts a highly integrated system with dual screens,offering a seamless user experience.It combines essential features such as video transmission,data transmission,remote control,video display,and an industrial-grade computer,all within a compact and lightweight design.The aviation-grade aluminum alloy shell ensures durability while keeping the overall weight at a mere 5.98kg.
Equipped with four joysticks,our remote control system provides precise and intuitive control over unmanned vehicles.Additionally,it supports traditional RC access.The inclusion of HID USB and programmable switches,configurable through our software,offers enhanced customization options.Furthermore,the T40 GCS features various external input and output ports,facilitating seamless integration with third-party data links.
The T40 GCS is especially well-suited for UAVs,UGVs,USVs,and similar applications.Its versatile functionality,combined with its lightweight and durable design,make it an ideal choice for professionals in defense,inspection of power and oil pipelines,monitoring and emergency rescue operations,public safety,and forest fire prevention,etc.
Product Features
Aviation grade aluminum shell, the overall weight only 6.4kg.
Dual touch screens with high definition and brightness and extended touch pad.
Programmable channels,supporting traditional RC access
Add HID USB and programmable switches that can be set in the software
Compatible with 100% data link in the market.
Product Parameters:
| Dimension | |
| Overall weight | 6400g |
| Overall dimension | 355mm(L)*282mm(W)*80mm(H) |
| Display screen | 13.3 inch 1920*1080 1000nit (top screen) 12.1 inch 1280*800 1500nit (bottom screen) |
| Computer | |
| CPU | Intel i7 8565U(standard) |
| Touch pad | 10-finger capacitive touch screen |
| Operating system | Windows 10/Linux |
| RAM | 16G(standard) 32G max |
| SSD storage | 512GB(standard) 1T max |
| Network | WIFI/Bluetooth(standard) 4G(optional) |
| Interface | RS232*4,USB3.0*2,LAN,HDMI in,VGA out |
| Remote Control | |
| Physical channel | Main joysticks*2(industrial joysticks with hall sensors),Auxiliary rocker*4,Key buttons*12,Simulate keystrokes*7 |
| Remote control function | Dual SBUS independent output,able to control the vehicle and the payload simultaneously |
| Remote control latency | 40ms |
| SBUS port | SBUS OUT*2 |
| Battery | |
| Battery capacity | 16.8V/20100mAh(external power source also supported) |
| Endurance | 3.5hs with full battery capacity |
| Charging port | DC16.8V |
| Communication link | |
| V31 | 150km and up |
| The 3rd party communication link | Supportive |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
