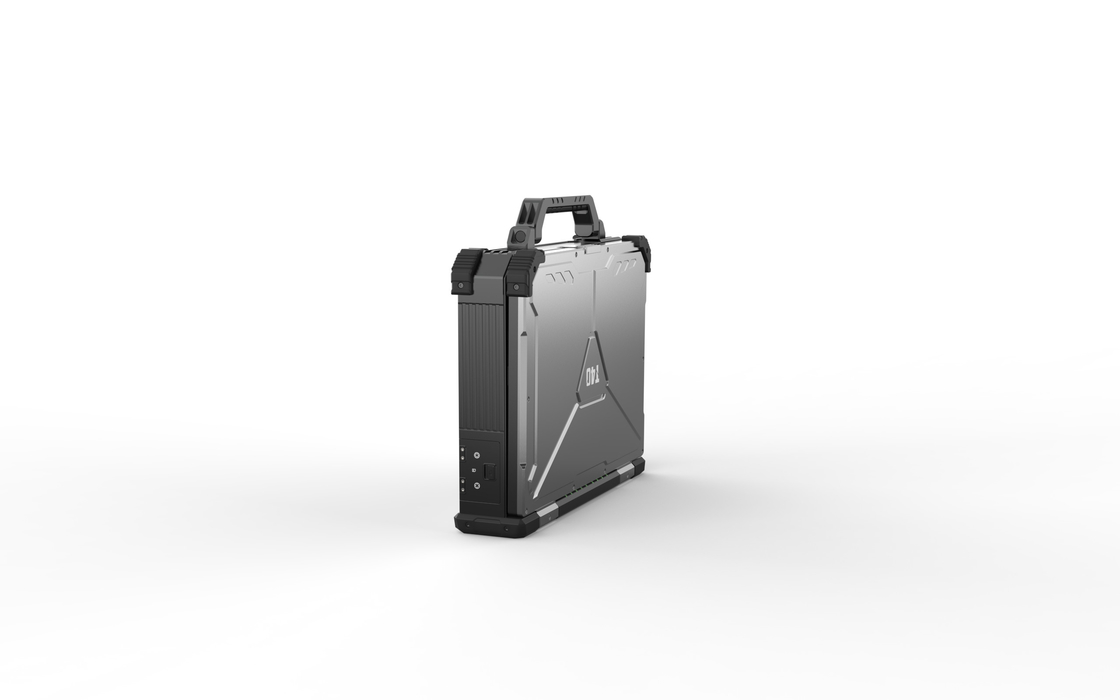

Handheld Ground Control System For Drone , Aluminum Shell Ugcs Ground Station

T40 Budget-Friendly Professional Handheld Ground Control Station for Windows and Linux

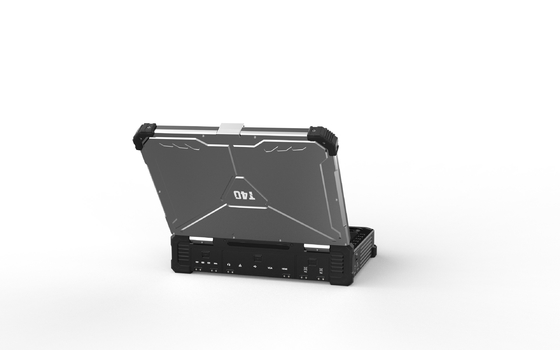

Featuring a lightweight aviation-grade aluminum alloy shell and a 3-in-1 communication system, the T40 can be used to command and control drones and payloads, making it ideal for commercial and professional drone missions.

The highly integrated platform is built on an Intel-based computer running Microsoft Windows or Linux.

The system can interface with almost any unmanned aircraft and many autopilot systems. The user can choose our standard 10km grade video&telemetry&RC link and also can use the 3^rd party communication.

The versatile, fully integrated handheld controller is ideal for a wide variety of field environments including industrial, defense and construction applications.

Features

Aviation grade aluminum shell, the overall weight only 5.98kg

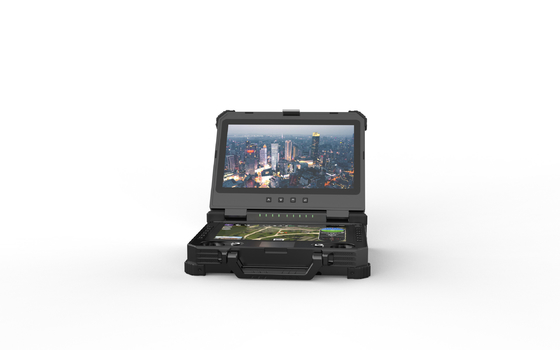

Dual touch screens, high definition, high brightness, sunlight-readable

27 physical channels, the user can assign each channel to the preferred joystick, switch, and button

Support traditional RC access

USB HID function, easier for the user to do the further development

Parameters

Overall

Overall weight:                                        5.98kg

Dimension:                                              354mm(L)*280mm(W)*80mm(H)

Operation temperature:                           -20℃-+60℃

Battery capacity:                                     16.8V/13600mAh (external battery also supported)

Endurance:                                              3h@full battery capacity

Communication system:

                                                                 V30(10km grade)

                                                                 V21(10km grade)

                                                                  Supporting the 3^rd party communication

Antennas:                                                 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)

Computer

Display screen:                                         13.3inch 1920*1080 1000CCD(top screen);

                                                                  12.1inch 1280*800 1500CCD(bottom screen)

Operating system:                                     win10/Linux

CPU:                                                           Intel i7 8565U(standard)/Intel 10500U(upgrade for future)

Memory:                                                     8G(standard)

Storage:                                                      256GB SSD(standard)

Network:                                                     WIFI, Bluetooth(standard)/4G(optional)

Remote control system

Physical channel:                                        27

Main joystick:                                              2(industrial joysticks with hall sensors)

Auxiliary rocker:                                          4

Key buttons:                                                12

Simulate keystrokes:                                   7

Remote control latency:                               30ms

Remote control function:                              Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface:                                         USB HID device

Interfaces

Serial port:                                                   RS232*3, SBUS in/out

External interface:                                       USB3.0, LAN, HDMI in, VGA out, Hi-fi

Charging port:                                              DC16.8V

Airborne unit

V30 HDMI(10km grade video&data&RC link)

Frequency:                                                   800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)

Transmission range:                                    10km@LOS condition

Bandwidth:                                                   10/20MHz

Data rates:                                                    2-12Mbps

Power voltage:                                             7.4-12v

RF power:                                                     0.1w-1w(adjustable)

Operation current:                                         260mA@12v power input

Video definition supported:                           1080P60 Max

Weight:                                                         120g(exclude antennas)

Dimension:                                                    91mm*57mm*20mm

Interface

Video input interface:                                    HDMI&CVBS

UART port:                                                     1

SBUS port:                                                      2

Power supply interface:                                 XT30

V21 LAN(10km grade video&data&RC link)

Frequency:                                               800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)

Transmission range:                                10km@LOS condition

Bandwidth:                                               1.4M-20MHz(1.4M/3M/5M/10M/20M)

Data rates:                                                2-12Mbps

Power voltage:                                          7.4-12v

RF power:                                                 0.1w-1w(adjustable)

Operation current:                                     260mA@12v power input

Video definition supported:                       1080P60 Max

Weight:                                                      120g(exclude antennas)

Dimension:                                                 91mm*57mm*20mm

Interface

Video input interface:                                 HDMI&CVBS

UART port:                                                 1

SBUS port:                                                 2

Power supply interface:                              XT30
