Product Details:
|
| Material: | Aviation-grade Aluminum Shell | Product Name: | T40 Portable Ground Controller |
|---|---|---|---|
| Function: | Control System, Mission Planning, Video Review | Application: | UAV, UGV, USV, Robot, Remote-controlled Vehicle |

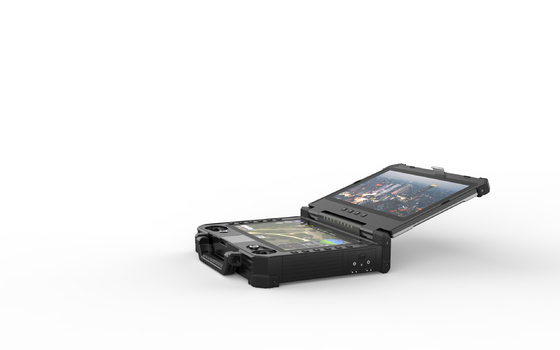

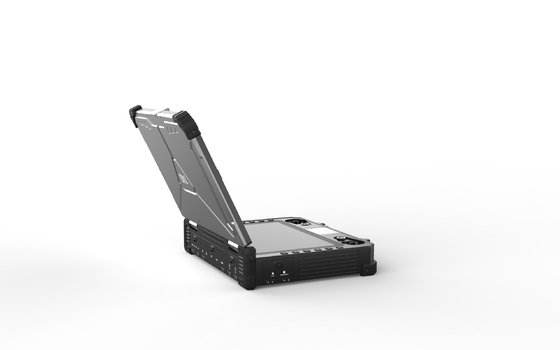

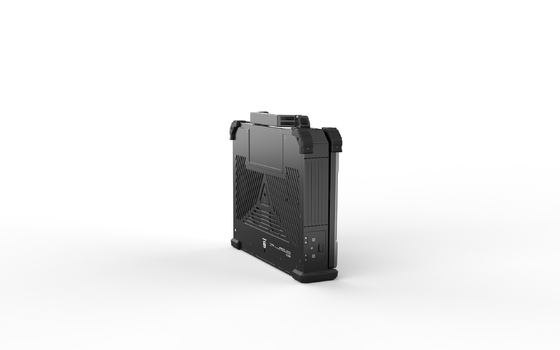

T40 is a universal ground control station for all types of UAV, UGV, robots, and other remote-controlled vehicles.
It is a dual-screen remote control station, including a 13.3inch 1920*1080 1000CCD and a 12.1inch 1280*800 1500CCD. The dual ultra HD displays are fully sunlight readable/ viewable.
A key feature of T40 is the Remote Control Configuration Interface, allowing users to assign 27 physical channels to joysticks, switches, and buttons.
The remote control system has 4 joysticks for use, it also supports traditional RC access. Add HID USB function and programmable switches that can be set in the software. Various input and output ports make it convenient to be integrated with the 3rd party communication device. Lightweight, powerful function make it especially suitable for the individual to perform complicated tasks.
Features
Aviation grade aluminum shell, the overall weight only 5.98kg.
Low latency remote control, 30ms
Programmable channels, supporting traditional RC access.
Add HID USB and programmable switches that can be set in the software.
Windows and Linux OS for choice
Compatible with 100% data link in the market.
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
