Product Details:
|
| Channel: | 14 Physical Channels | Frequency: | New FHSS Frequency Hopping |
|---|---|---|---|
| Storage: | 20 Groups Of Models | Programming: | Mixed Control Of Multi-group Programming |
| Language: | English | Dpi: | Full Channel 4096 Dpi |
| Application: | Helicopter/fixed-wing/multi-rotor/vehicle And Ship | Transmission Distance: | 1-3km |
| PWM: | 8 Way | SBUS: | Compatible With Futaba SBUS Protocol |
| Fail Safe: | Support | Voltage: | 7V-12V |
| Current: | 100mA | Size: | 190mm*180mm*60mm |
| Weight: | 480g | ||
| High Light: | 2.4G FHSS Uav Flight Controller,3km Uav Flight Controller,14 Channels Uav Flight Controller 1km |
||

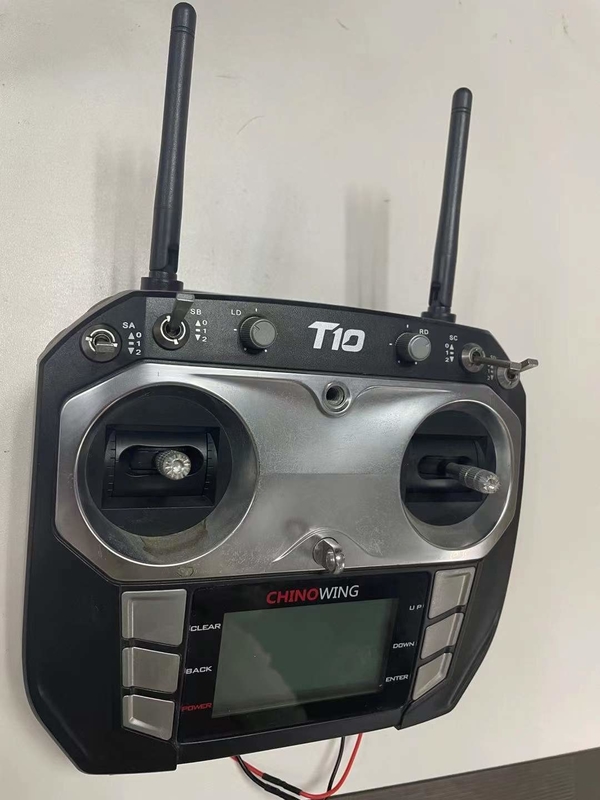

T10 model remote controller (190mm*180mm*60mm)
Utilizing 2.4G FHSS frequency-hopping technology, signal transmission is more sensitive while reducing interference between devices within the same area. All new angel of.The new antenna has the standard angle and enhances the remote control stability. The two-way transmission system allows for real-time review of flight status. It also increases control security while managing the ascent in real time.PA physical channel 10 with a gear shift lever, two knobs, and four shortcut keys provides a convenient power supply that can use 4 5 batteries or lithium batteries. Quick conversion plugs facilitate the counter-attack. There are no redundant designs, making flying safe.
| T10 GCS | |||
| Channel | 14 physical channels | PWM | 8 way |
| 2.4GHz(interactive) | SBUS | Compatible with Futaba SUS protocol | |
| Frequency | New FHSS frequency hopping | fail-safe | support |
| Storage | 20 groups of models | voltage | 7V-12V |
| Programming | Mixed control of multi-group programming | Size | 190mm*180mm*60mm |
| Language | English | weight | 480g |
| dpi | full channel 4096 dpi | ||
| application | Helicopter fixed-wing multi-rotor vehicle and ship | ||
| transmission distance | 1-3km | ||
| R10接收机 Match the R10 use | R20 The R20 receiver for common reseiver,can be used with Chinowing products.Use the high maturity of military level digital module ,tie-in integration link design,time -sharing multiplexing improve channel utilization,can transmit a reuters data at the same time,two way S-BUS control data.Products small size,light weight low power consumption and strong anti-jamming capability | ||
| size | 46.5mm*27.0mm*14.0mm | Frequency of communication | 840MHz/900MHz |
| Application | Helicopter fixed-wing multi-rotor vehicle and ship | Power supply voltage | 7.4V-24V |
| sensitivtity | -105dBm | Operation current | 300A(12V) |
| Modulation method | GFSK | Serial port | TTL*1+SBUS*2 |
| System model | Automatic frequency hopping number system | SBUS | SBUS*1 |
| Data resolution | 1024级 | Power | 100mW-1W |
| Antenna | 3dB rod Antenna | ||
| Port baud rate | 115200(adjustable) | ||
| The air rate | 100K(adjustable) | ||
| Size | 53mm*40mm*14mm | ||
| weight | 43g | ||
| operational environment | -10~60℃ | ||
