Product Details:
|
| Overall Weight: | 155g(Exclude Antennas) | Overall Dimension: | 80mm*56mm*20mm |
|---|---|---|---|
| Working Frequency: | 600MHz(566-678MHz)1.4GHz(1420-1530MHz}/1.4G(standard) | Power Supply Voltage: | DC9-50V 3-12S Battery |
| Power Supply Current: | 300mA 12V Power Supply | Serial Port: | TTL/RS232(optional) |
| Data Port: | RJ45 *1,LAN*1 | RF Power: | -40~ 27dBM |
| Antenna: | 2-4dBi Rod Antenna 8-12dBi Fiberglass Antenna(optional) | Operating Temperature: | -30℃~+65℃ |
| Video Latency: | <300ms | Transmission Range: | 15-20km (air To Ground) LOS/point To Point |
| Bandwidth: | 1.4-20M | MIMO Mode: | 2×2MIMO |
| Network Mode: | 64 Devices Maximum | Power Supply Port: | XT30 |

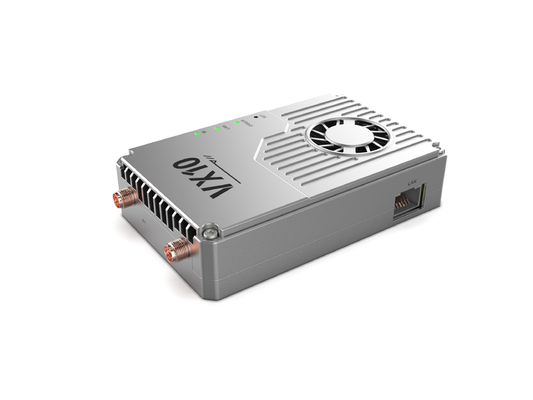

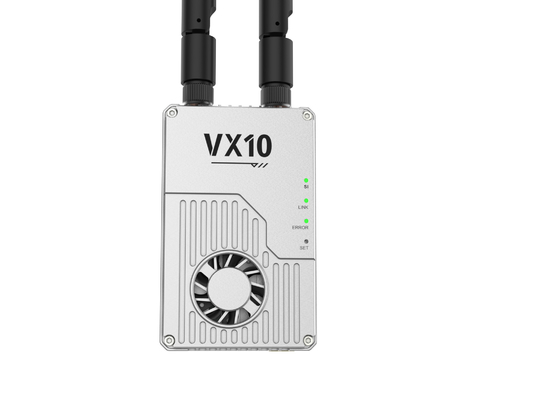

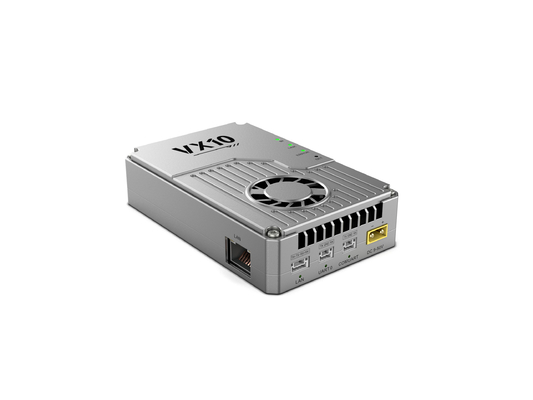

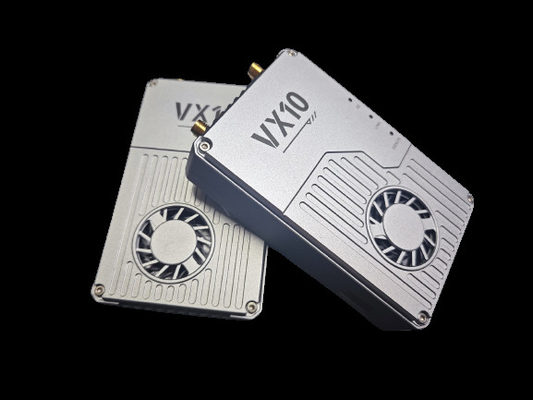

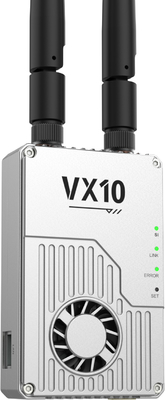

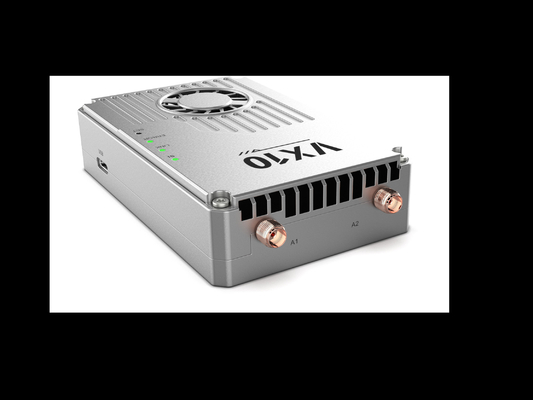

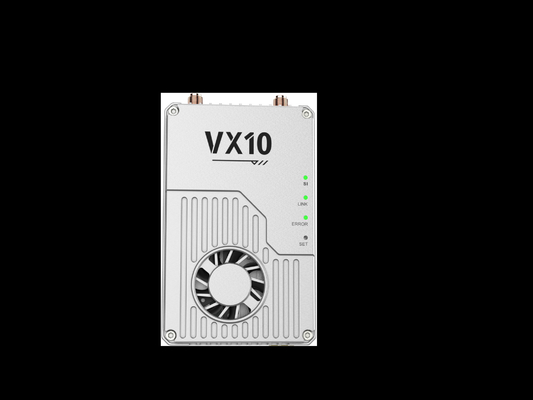

VX10 digital transmission is based on the LTE wireless communication standard,employing wireless digital data links with OFDM and MIMO technologies.It features 10/100 Ethernet ports,serial gateway functionality,and achieves a stream rate of up to 100Mbps when CA mode is enabled.This device offers reliable wireless Ethernet bridging and gateway services for various devices.It can simultaneously transmit telemetry and video,addressing challenges such as limited transmission distance for remote control and telemetry signals,as well as low-quality image transmission.Compact in size,high integration,and good sensitivity,VX10 is available with frequency band options at 600MHz and 1.4GHz.
Product Features
Two Frequencies optional
600MHz,1.4GHz
LAN Interface
Compatible with all network protocols
Distance
Ground-to-Air 20km
RS232/TTL Optiona
Baud rate adjustable
Star Network
Supports point-to-point and point-to-multipoint.
The central node can access any sub node,64 devices connections maximum
Product Parameters
| Item | Parameters | Details |
| Overall weight | 155g | Exclude antennas |
| Overall dimension | 80mm*56mm*20mm | NA |
| Working frequency | 600MHz(566-678MHz) 1.4GHz(1420-1530MHz) |
1.4GHz(standard) |
| Power supply voltage | DC9-50V | 3-12S battery |
| Power supply current | 300mA | 12V power supply |
| Serial port | TTL/RS232 | Optional |
| Data port | RJ45*1,LAN*1 | |
| RF power | -40~27dBm | |
| Antenna | 2-4dBi rod antenna | 8-12dBi fiberglass antenna(optional) |
| Operating temperature | -30~+65℃ | |
| Video latency | ＜300ms | |
| Transmission range | 15-20km | LOS/point to point |
| Bandwidth | 1.4-20M | |
| MIMO mode | 2×2MIMO | |
| Network mode | 64 devices maximum | |
| Power supply port | XT30 |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
